Technical Parameters
| Specification | |
| Operating Voltage: | 5–30 VDC |
| Contact Rating: | 1.5 A @ 5–30 VDC |
| Contact Resistance: | 160 mΩ max. |
| Electrical Life: | 1 million cycles at full load |
| Operating Temperature: | - 20℃ to 60°C. |
| ESD Resistance: | ±2 kV (25 contact) / ±8 kV (25 air discharge) |
| Impact Resistance: | IK10 (Metal) |
| Panel Water Resistance: | IP67 |
| UV Resistance: | UVA |
| Material | |
| Key: | Stainless steel/aluminum |
| Bezel: | PC (UL 94V-0) |
| Housing: | Stainless steel/aluminum |
| Cable: | UL1007, 22 AWG |
Product Description

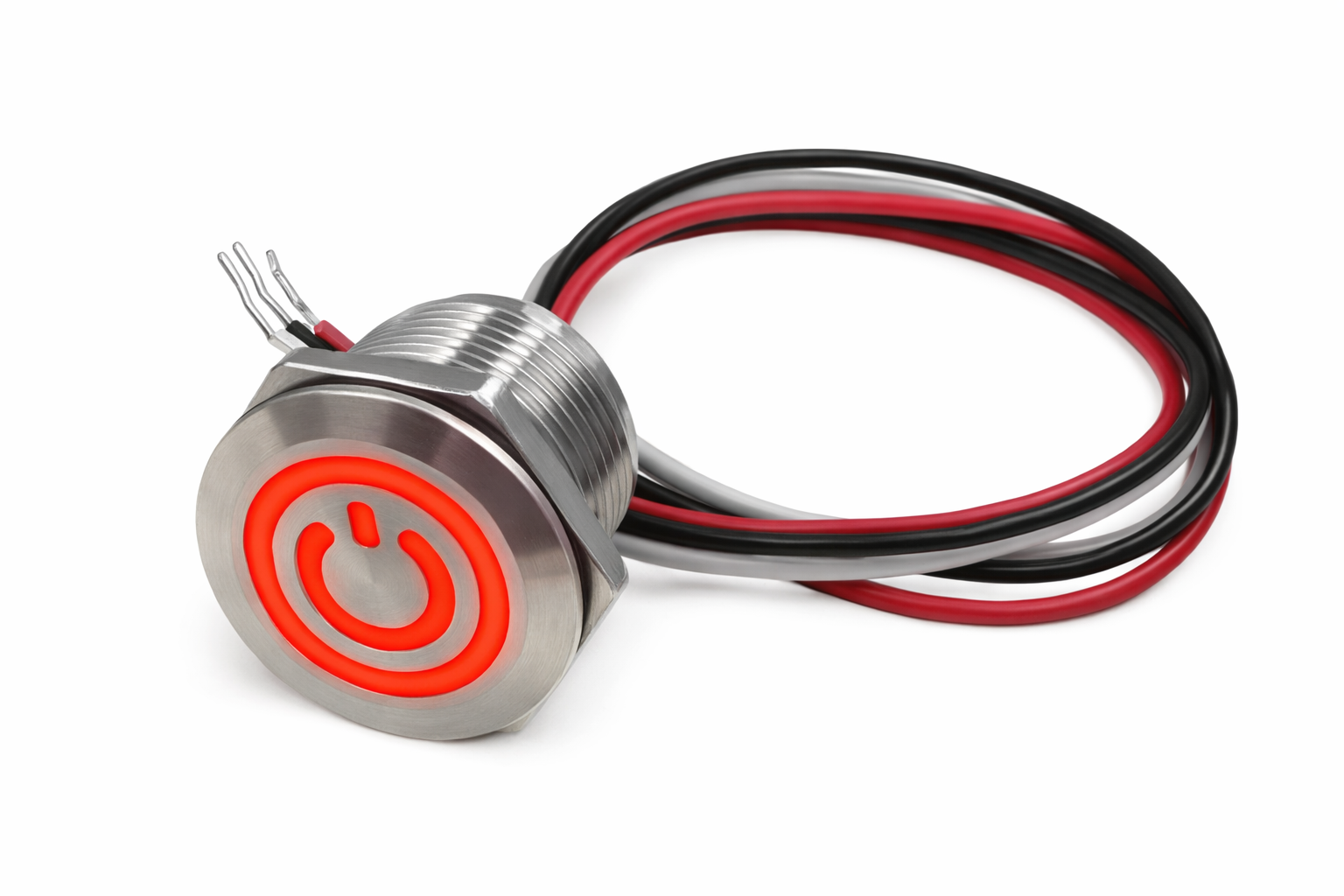

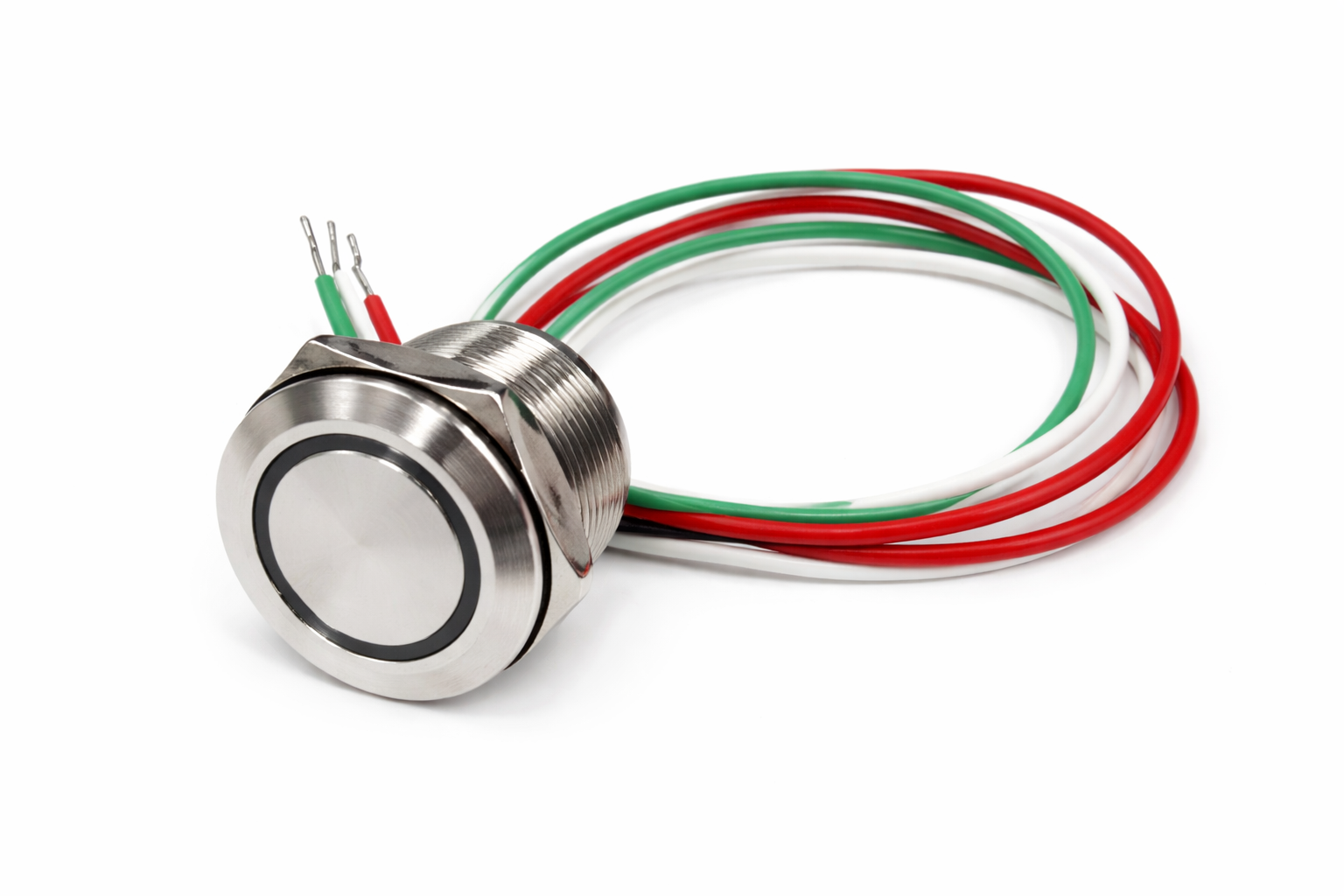

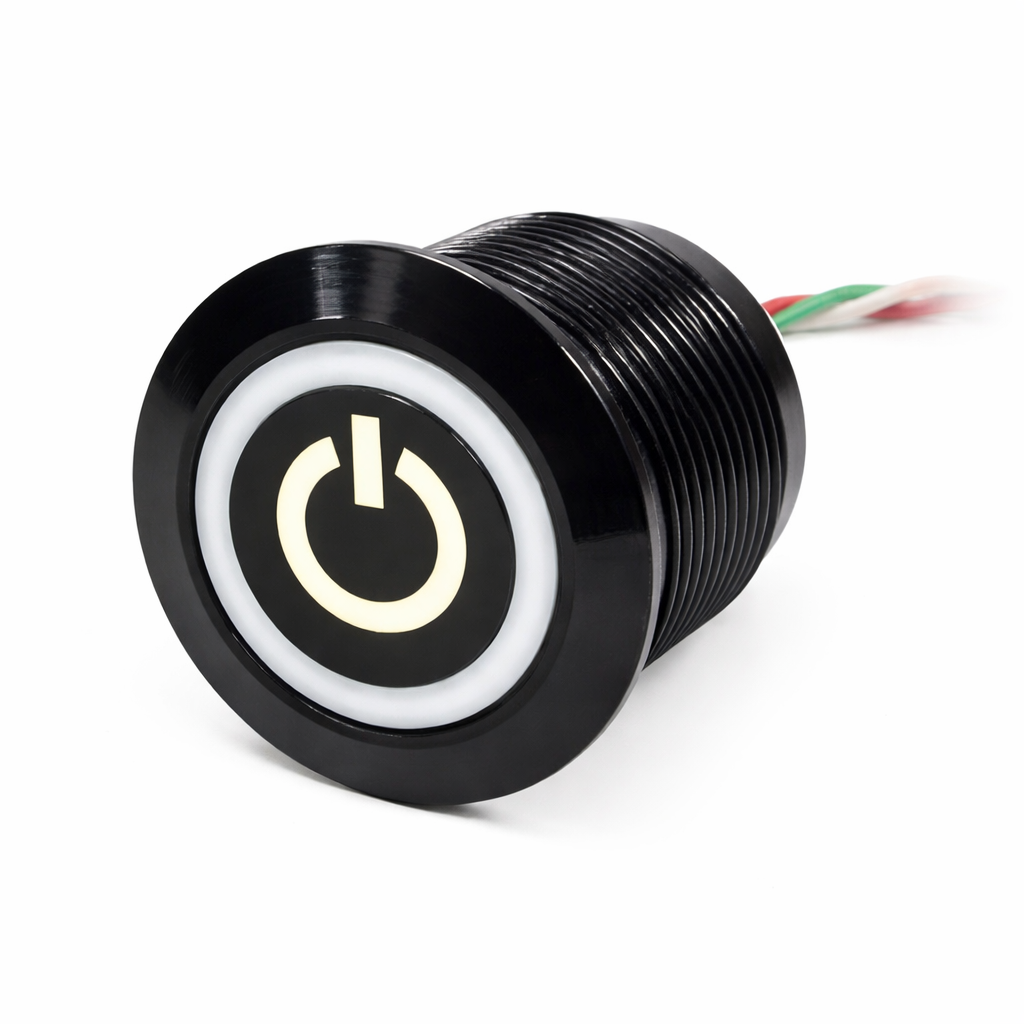

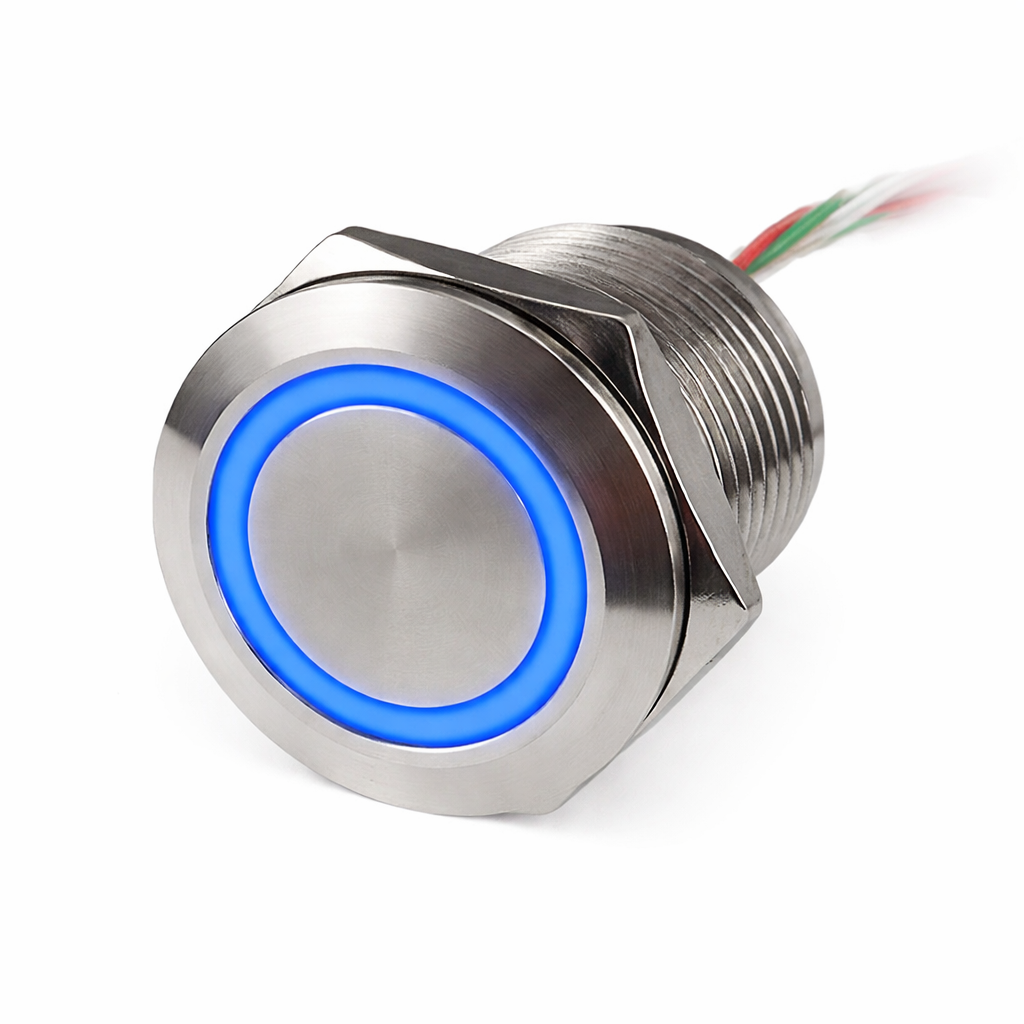

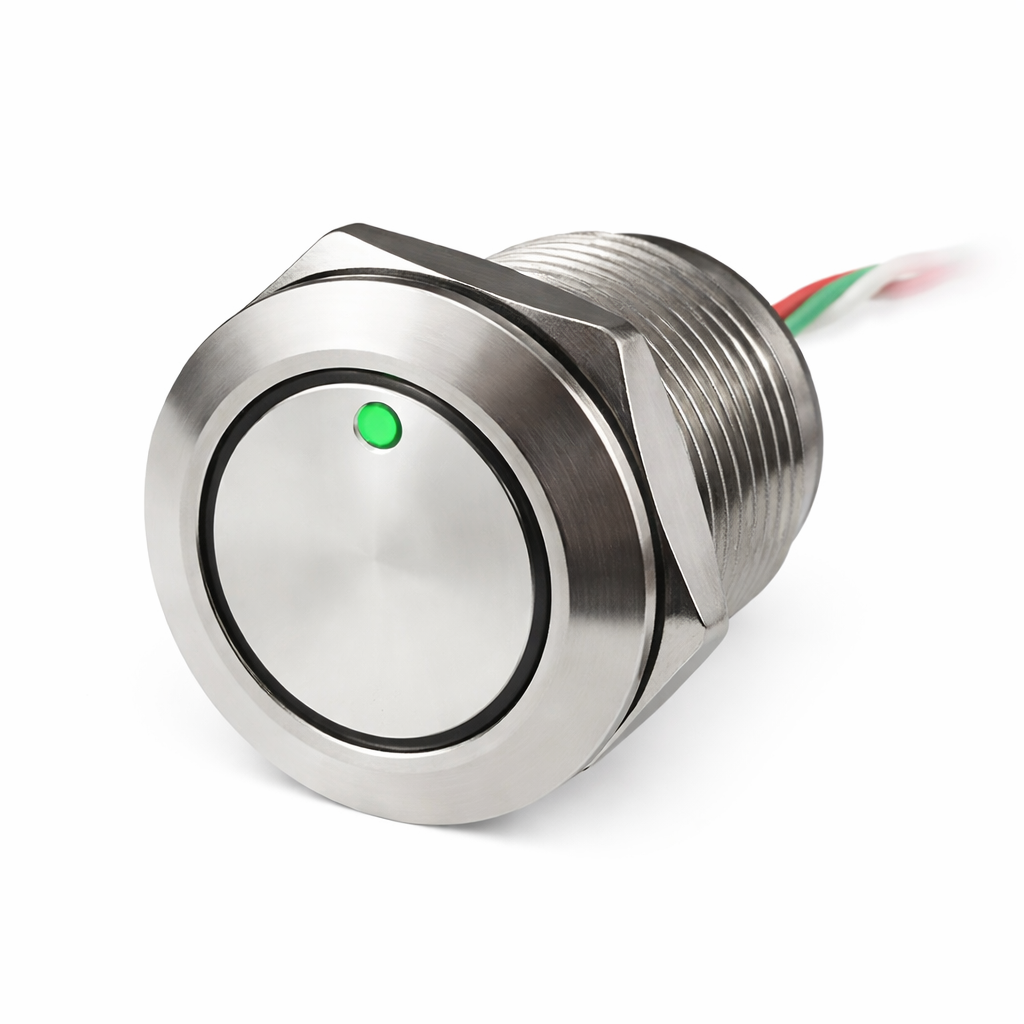

The TK series consists of touch-sensitive button switches featuring IP66 water resistance and IK10 impact resistance.
Key Features
High‑quality materials and surface treatment: The actuator and button are made of premium stainless steel and aluminum with anodized finish, enhancing corrosion resistance and aesthetic appeal.
UV‑resistant properties: Aluminum offers UV resistance and is available in natural or black anodized finishes, suitable for outdoor applications.
Integrated multi‑functions: Capable of integrating timer, lighting, and I/O delay functions to meet diverse control requirements.
High‑level panel protection: Front panel achieves IP66 protection rating, effectively preventing unintended activation caused by rain or water droplets.
International compliance: Meets RoHS, REACH, and CE EMC 2014/30/EU standards, ensuring environmental safety and electromagnetic compatibility.
Applications
Medical Equipment
Marine Equipment
Home Appliances
Security and Anti-Theft Systems
Queue Management Systems
