Technical Parameters
| Specification | |
| Rating | 5-24V / 1A DC. |
| ontact Resistance:C | 50 Million cycles min. |
| Contact Resistance: | ΙΩ ΜΑΧ. |
| Operating Temperature: | -20°C to 65°C. |
| Ingree Protection: | IP68 (In house test) |
| Material | |
| Bushing: | Aluminum alloy / Stainless steel. |
| CAP: | PC ; Aluminum alloy / Stainless steel. |
| Sealing: | Silicone, EPOXY. |
| O-Ring: | Silicone |
| Wire: | Standard wire 26 AWG. |
| Hex Nut: | Nickel plated brass |
Product Description

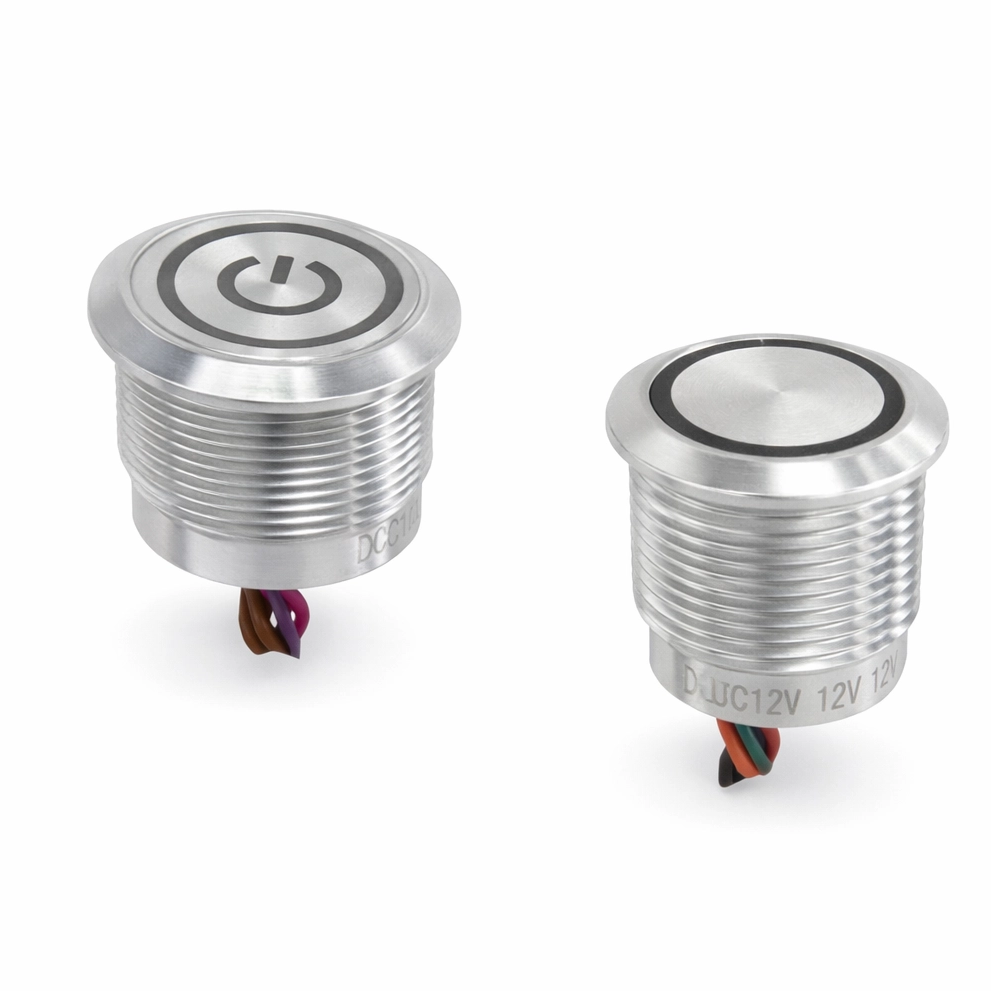

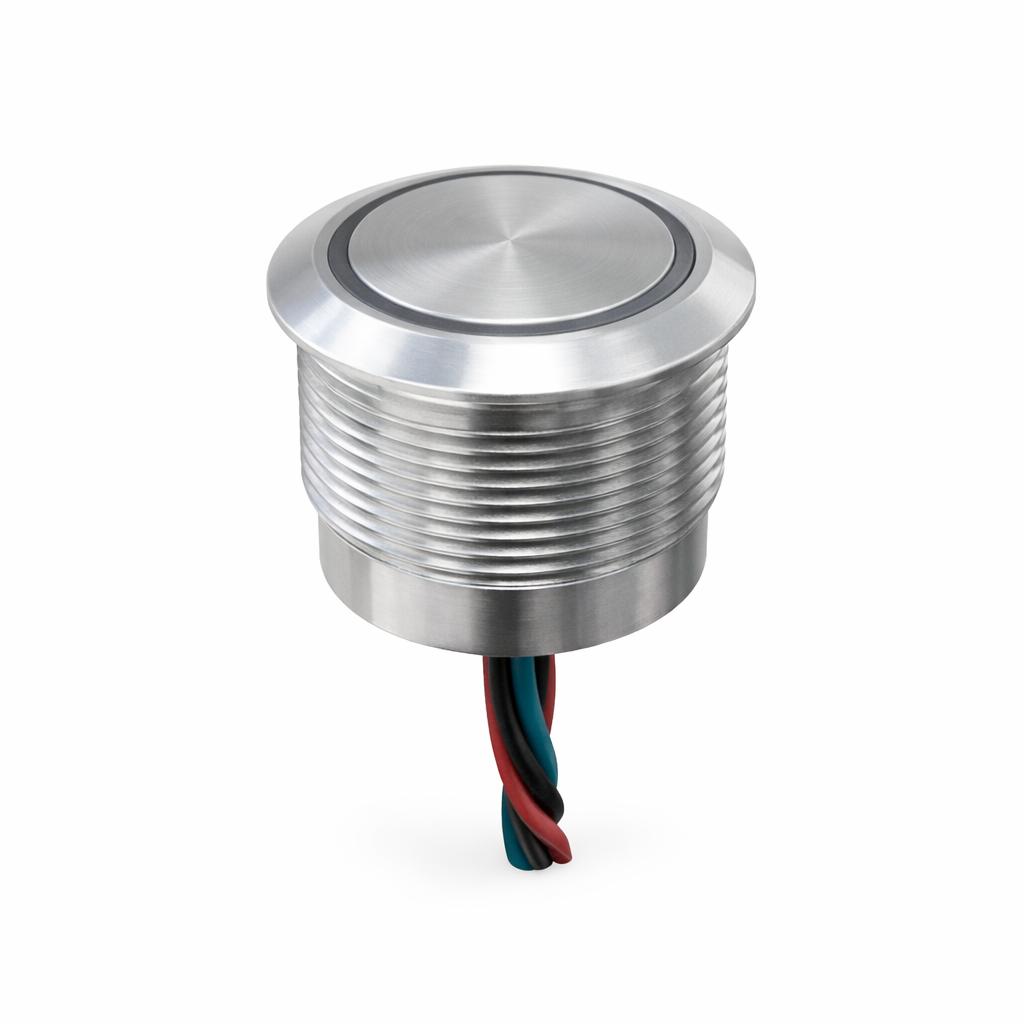

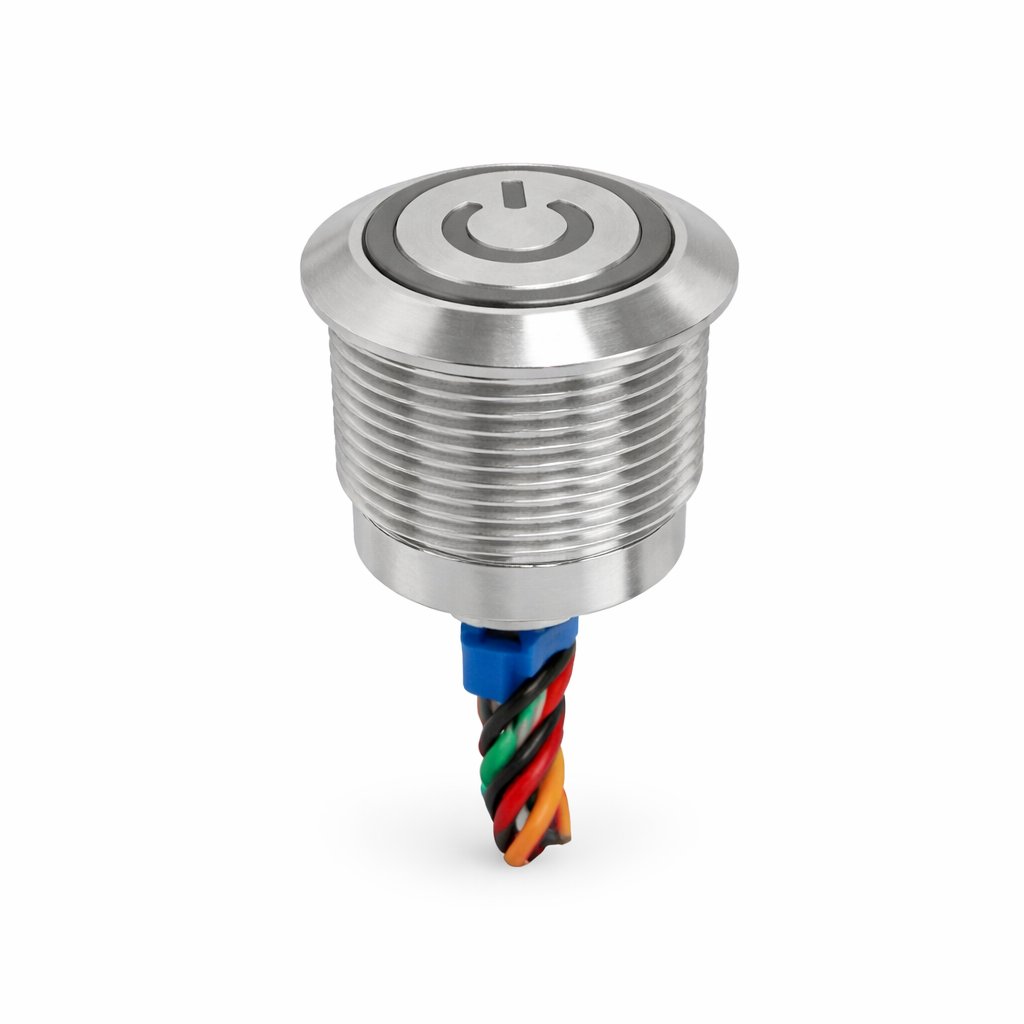

The TC Series consists of touch switches, metal switches, and vandal-resistant switches
Key Features
1. Fully waterproof construction: Utilizes capacitive technology with a metal appearance and is encapsulated with epoxy resin, achieving complete waterproofing of the switch body.
2. Multi‑color illumination with switching function: Features RGB LEDs throughout the series, allowing flexible adjustment of various colors. Integrated light‑color switching supports two‑stage bi‑color or even three‑stage tri‑color transitions.
3. Touch sensing with precise actuation: As a touch switch, it offers zero operating force and no tactile feedback. The activation zone is precisely defined on the contact surface, ensuring the switch responds only upon deliberate contact, effectively preventing accidental activation.
4. Ultra‑long service life: Product lifespan far exceeds that of mechanical switches, reaching over 10 million cycles, delivering exceptional durability.
Applications
Access control systems.
Bathroom fixtures.
Marine equipment.
Parking lot equipment.
Automotive electronics.
