Technical Parameters
| Specification | |
| Rating | Ith 5A/250VAC resistive load 3A/250VAC |
| Insulation Resistance | 1,000 MΩ min. at 500VDC |
| Operating Life | Momentary 1,000,000 cycles |
| Self-lock 500,000 cycles | |
| Contact Resistance | 50 mΩ max. @ 1A 12VDC (initial value) (without wire leads) |
| Dielectric strength | 2,000V RMS @ sea level |
| Operating temperature | -20°C ~ +55°C |
| Travel | About 3.2mm |
| Torque | 5~14Nm |
| Operation Pressure | 1Pole 2.5±1N / 2Poles 3.5±1N |
| INGRESS PROTECTION | IP67,IK10(Stainless) |
| Material | |
| Bushing: | Stainless Steel / Aluminum Alloy. |
| Base: | PBT (UL 94 V-0), PC (UL 94 V-2). |
| Actuator: | PC (UL 94 V-2); Stainless Steel / Aluminum Alloy. |
| Inner Assembly: | POM / PA66. |
| Spring: | Spring steel. |
| Sealing: | Silicone. |
| O-Ring: | Silicone |
| Terminal: | Brass, gold over silver plated. |
| Contact: | Brass, coin silver, gold or silver plated. |
| Nut: | Nickel plated brass. |
Product Description

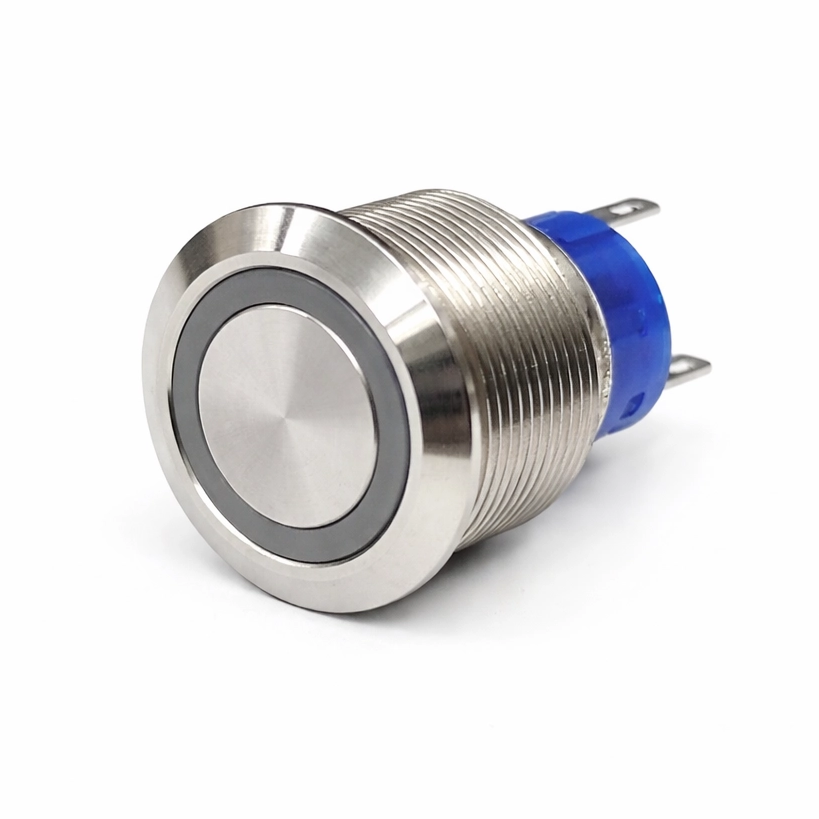

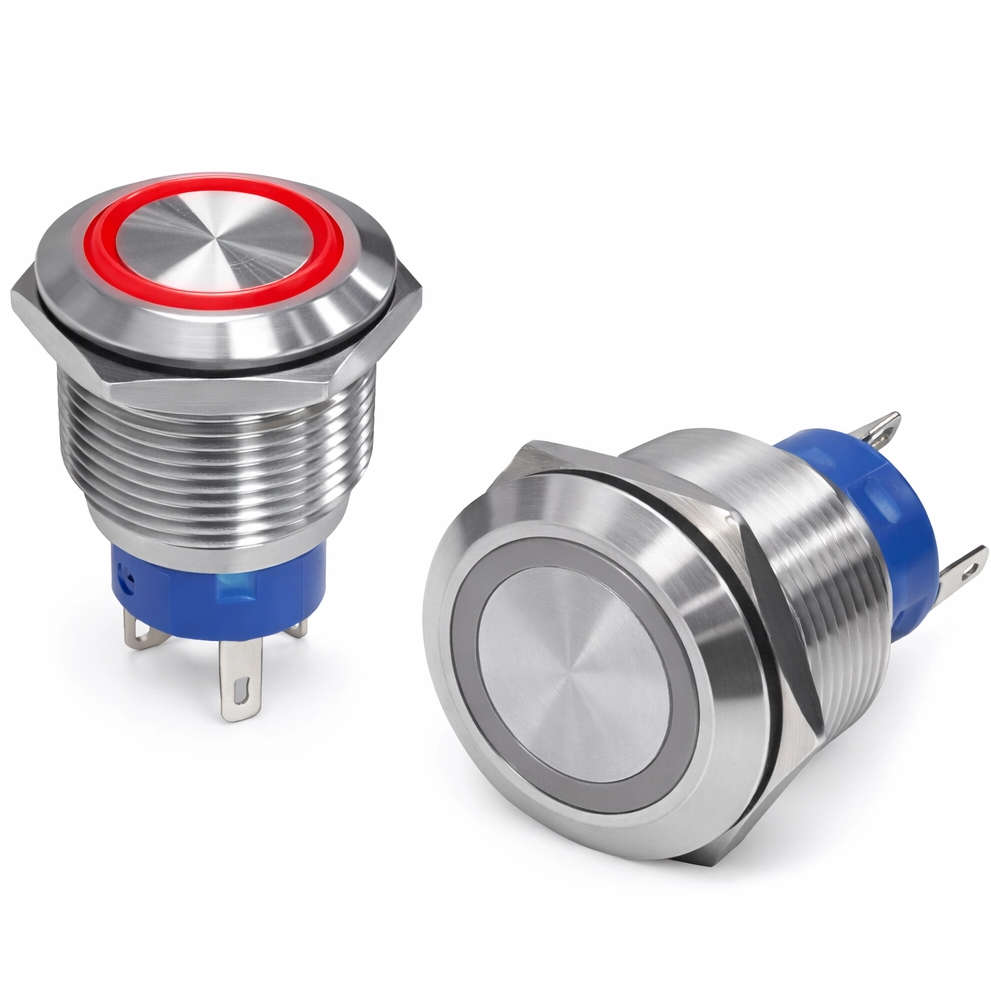

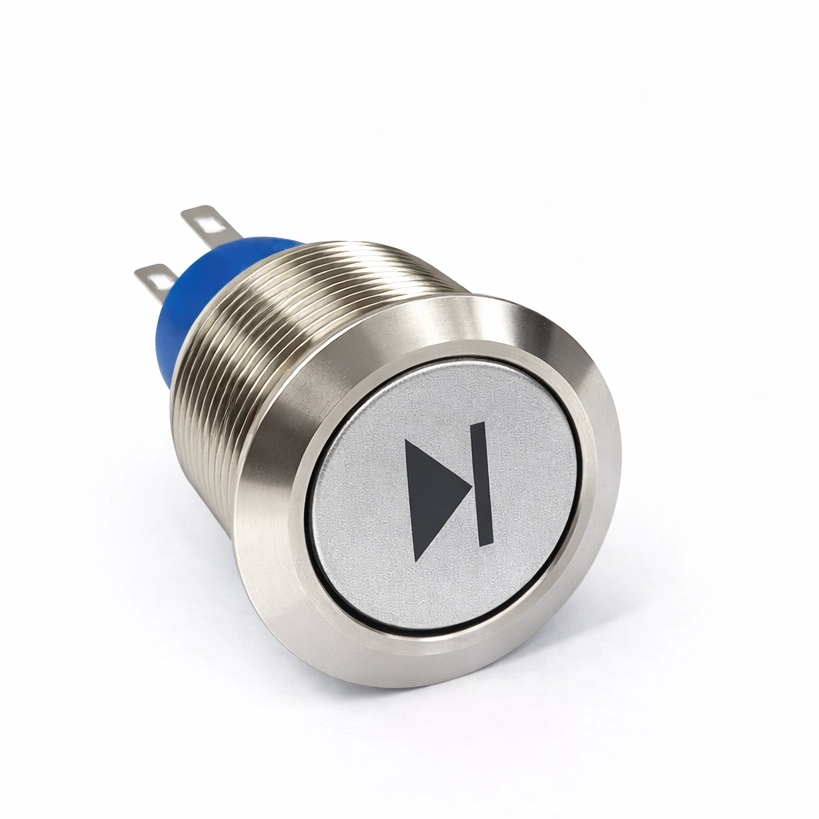

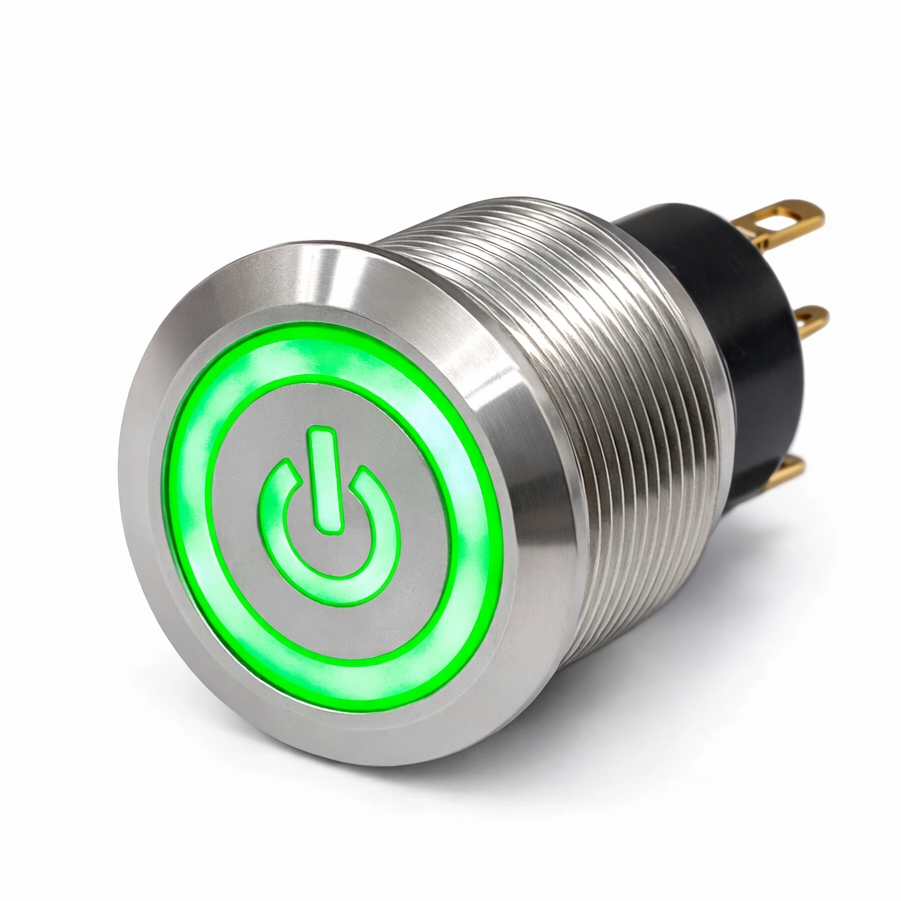

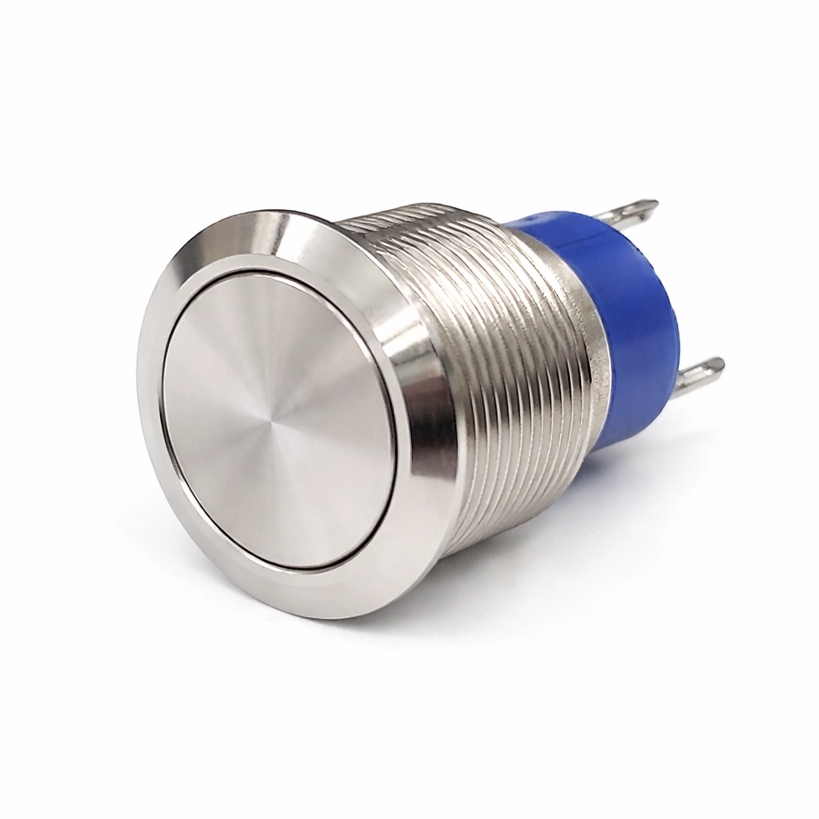

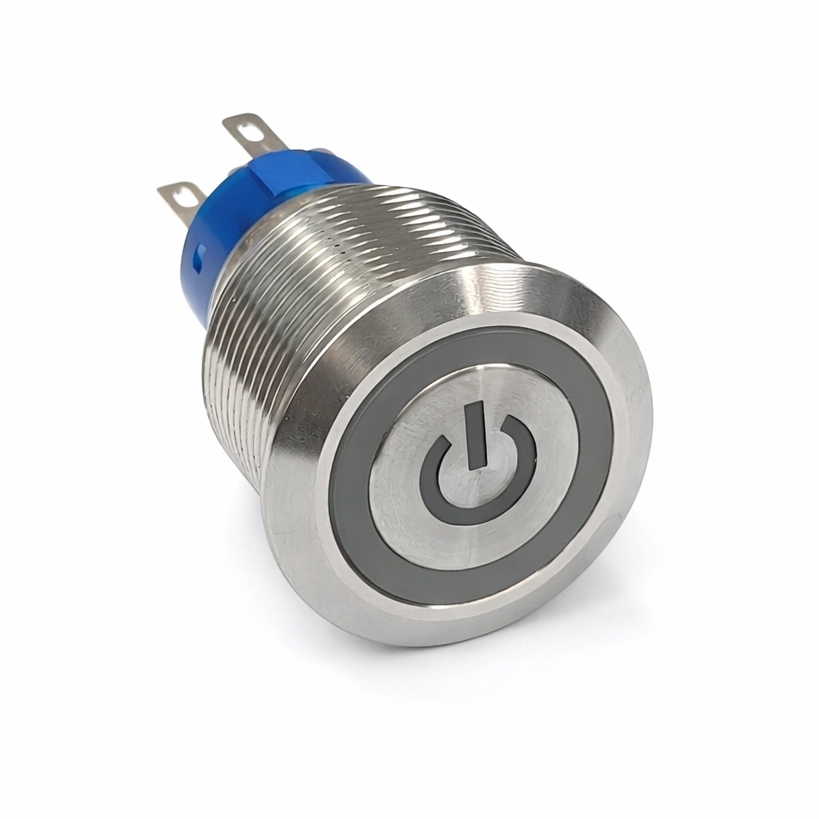

The MPB22 series includes vandal-resistant switches, multi-position switches, and waterproof illuminated switches.
Key Features
1. Enhanced material, overcoming design limitations: Unlike common market approaches that simplify construction when enlarging switch sizes
2. Maintains high protection ratings: Even in a larger form factor, it preserves IK10 impact resistance and IP67 waterproof protection, ensuring reliability and safety in extreme environments.
3. Consistent operational convenience: Users only need to be familiar with one switch size, eliminating the need to adjust to different form factors while maintaining design variety and a unified user experience.
4. High electrical rating: The 22mm metal switch withstands 5A current, with an operating rating of 3A / 250VAC, meeting the demands of higher-power applications.
Applications
Industrial Control Panels，Charging Piles，Robotic Arms，Robot Vacuums，Medical Equipment，etc.
