Product Description
SF25BB Series Capacitive Touch Switch
Key Features
Capacitive touch technology: Utilizes capacitive sensing principles to achieve touch operation without physical pressing, offering long lifespan and high reliability.
RGB LED multi‑color backlight: Built‑in RGB LED allows customizable lighting colors and patterns, providing intuitive indication of equipment status (e.g., standby, triggered).
High protection rating: Rated IP65 for dust and water resistance, suitable for humid or dusty environments.
Robust and durable housing: Constructed with SUS stainless steel anti‑vandal housing, resistant to impact and wear, ideal for public or industrial applications.
Easy installation: Features M25 threading with a 25mm panel cutout, compatible with panel thicknesses from 1.5mm to 4mm, secured simply with a nut.
Multiple output and power supply options: Offers NPN output (momentary or alternate mode) with selectable operating voltages of 5V DC or 7–24V DC, providing flexibility for various control systems.

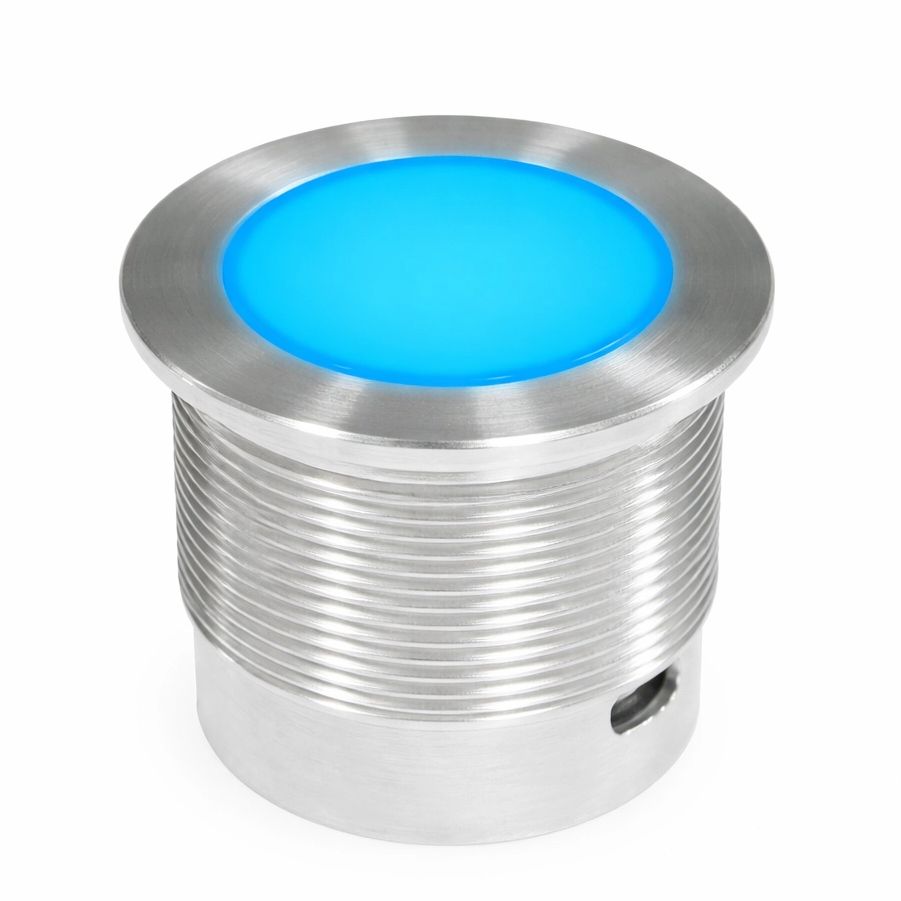

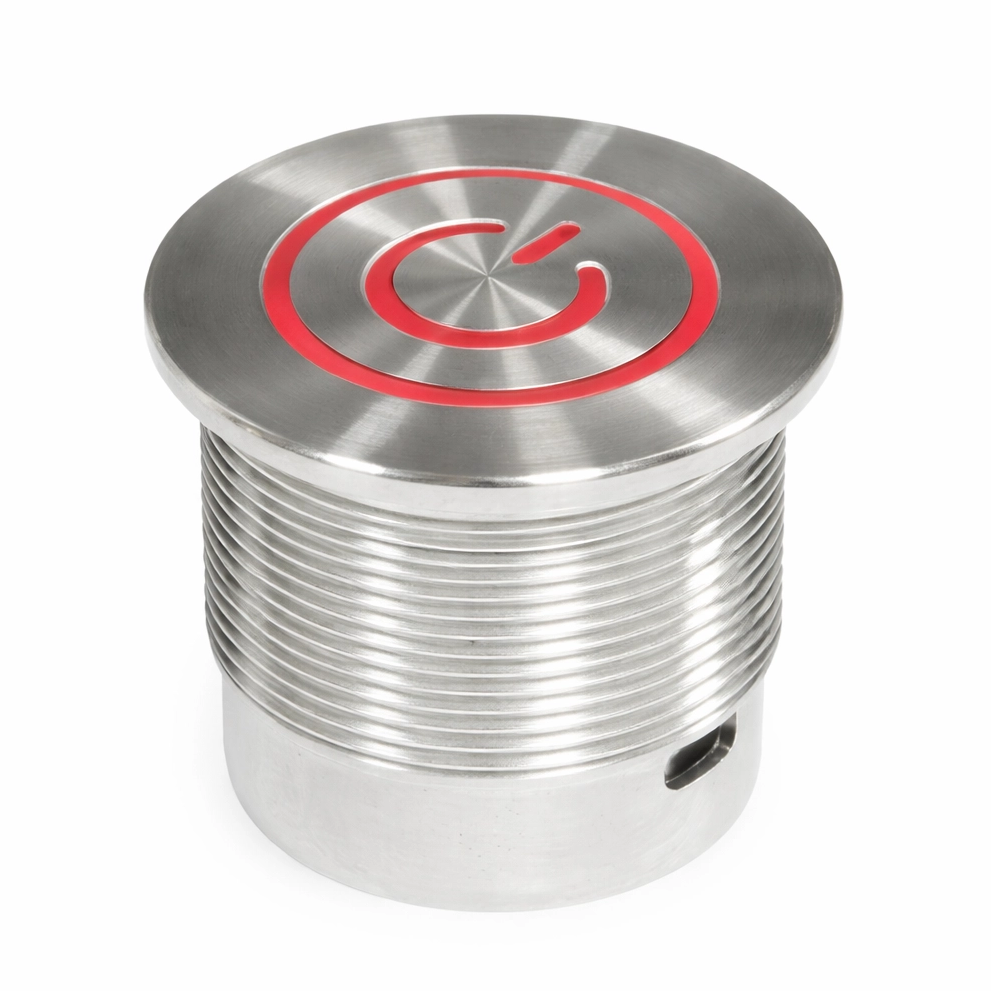

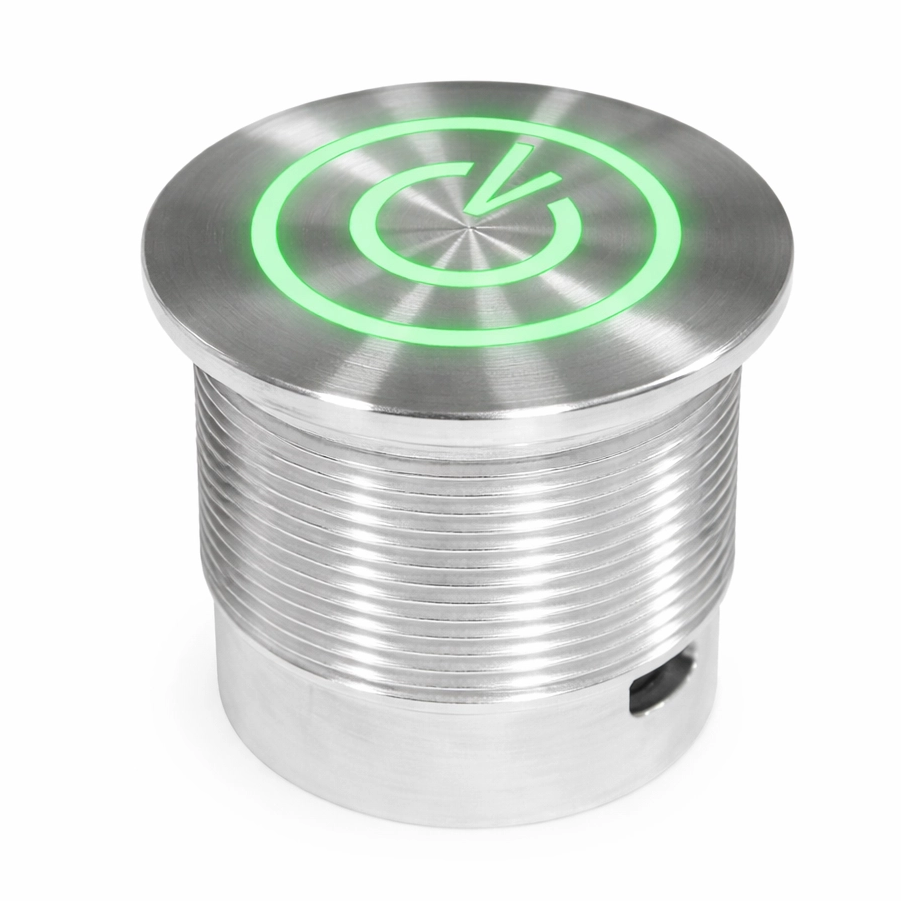

Versatile appearance: Available with fully illuminated round or power symbol actuator options to suit different design preferences.
Connector wiring: Uses connector terminals with optional dedicated cables, simplifying installation and maintenance.
Applications
Instruments and Meters, Smart Home
