Technical Parameters
| Specification | |
| Rating | Max : 2A / 36 VDC ; Min : 0.5A / 12 VDC. |
| Operating temperature | -20 ℃ to 70 ℃ |
| Contact Resistance | 50 mΩ max (without wire leads) |
| Insulation Resistance | 1,000 MΩ min. at 500VDC |
| Life Cycles | Mechanical:1,,000,000 cycles |
| Electrical:200,000 make-and-break cycles at full load | |
| Dielectric Strength | 1,000V RMS @sea level |
| Travel | About 2.0±0.20 mm |
| Operating Pressure | 4.5 N±1.5 N |
| Torque | 11.5 kgf cm |
| Ingree Protection | IP67 |
| Material | |
| Bushing: | Aluminum Alloy / Stainless Steel. |
| Base: | PBT (UL 94 V-0). |
| Actuator: | PC (Translucent) (UL 94 V-2). |
| CAP： | Aluminum alloy / Stainless Steel. |
| Spring: | steel. |
| Sealing: | Silicone (Translucent). |
| O-Ring: | Silicone (Translucent). |
| Terminal: | Brass, Gold flash plated. |
| Contact: | Brass, Coin silver, Gold flash plated. |
| Hex Nut: | Brass (Nickel plated). |
Product Description

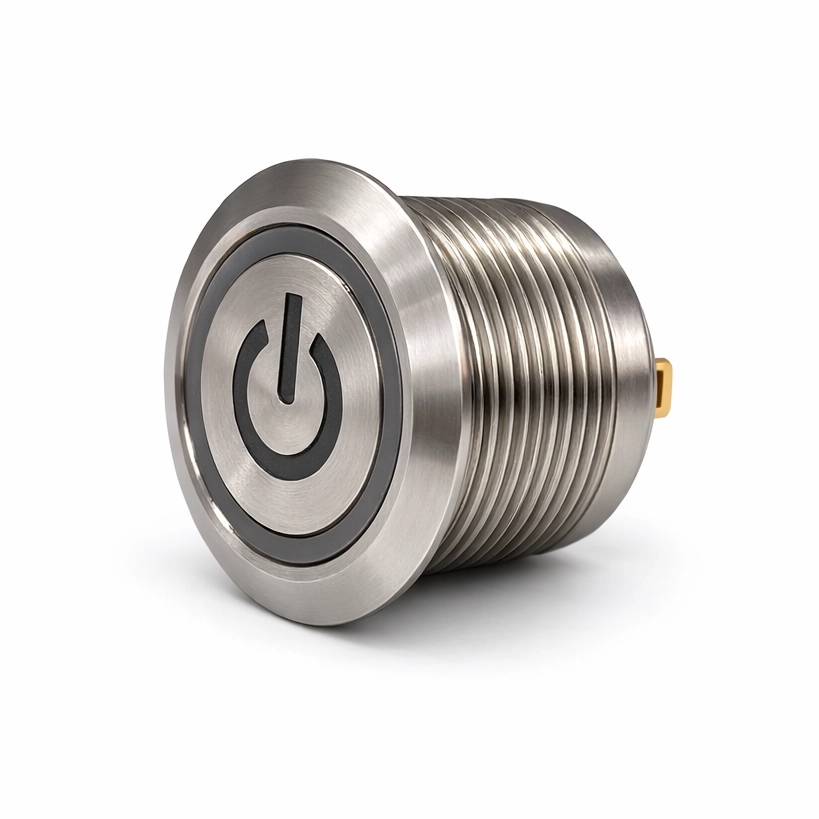

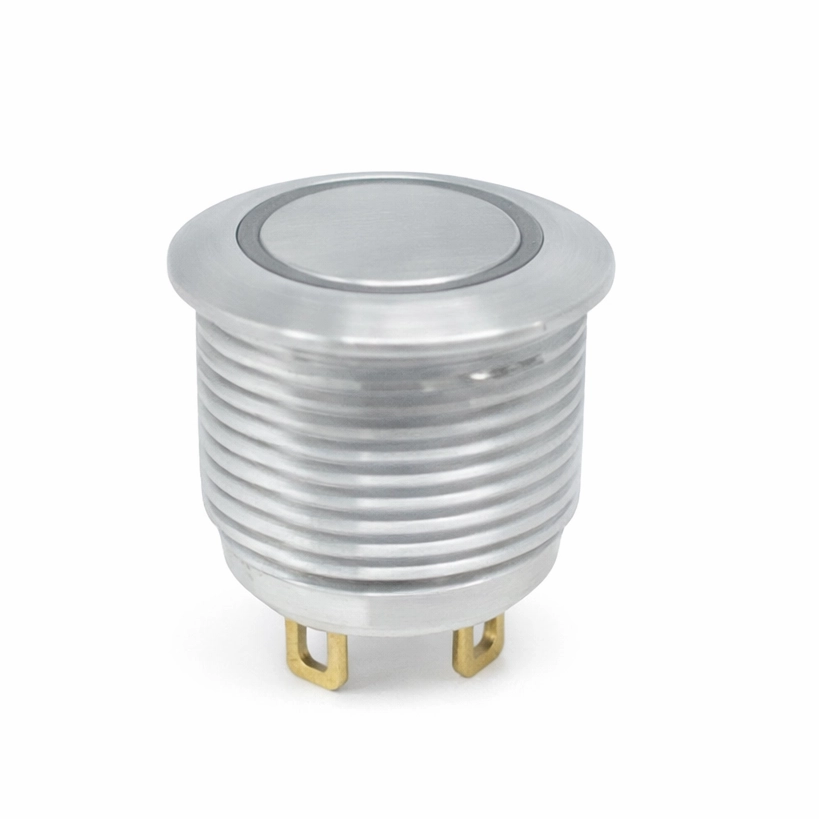

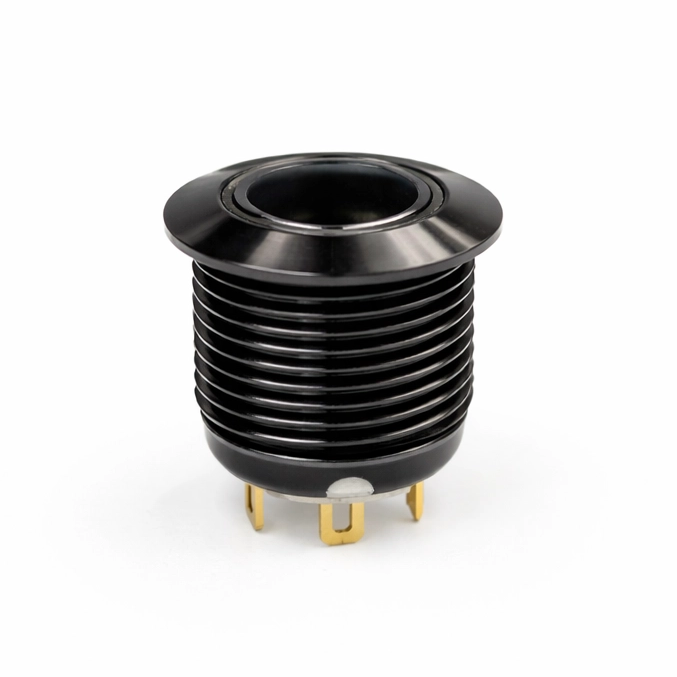

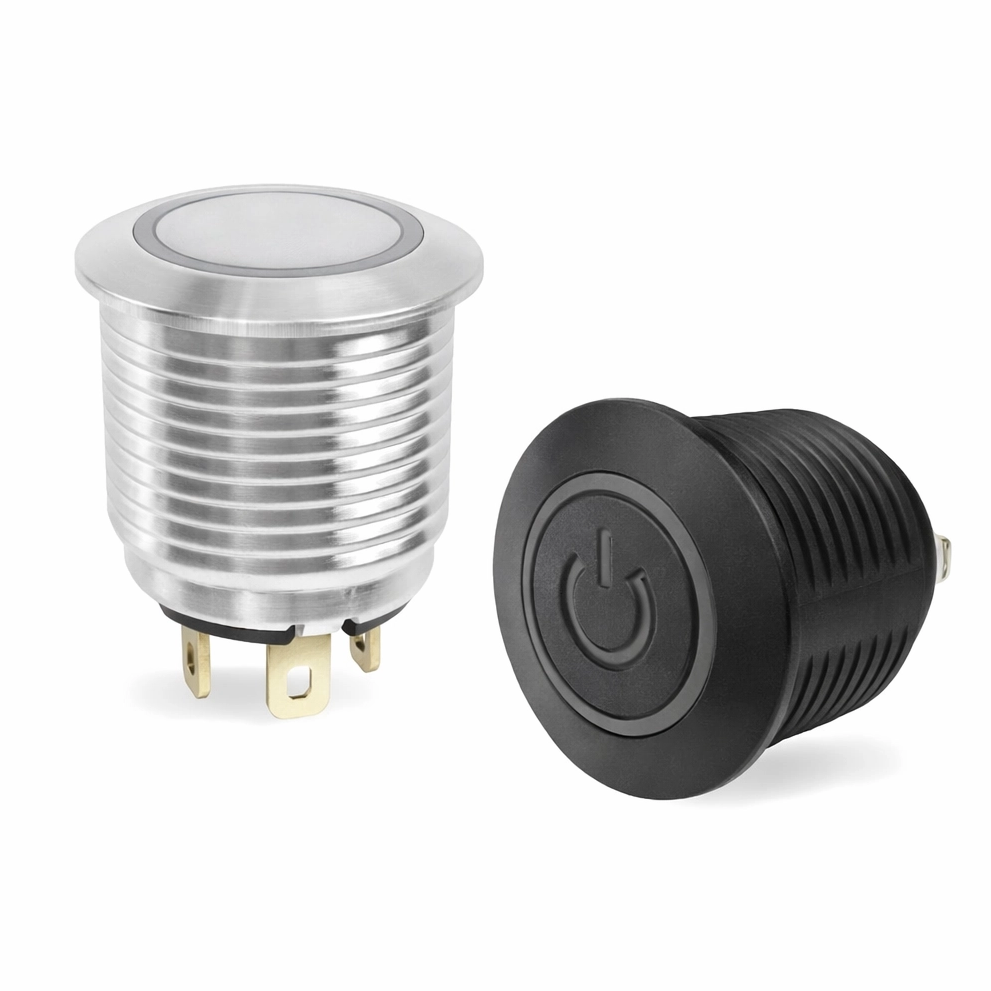

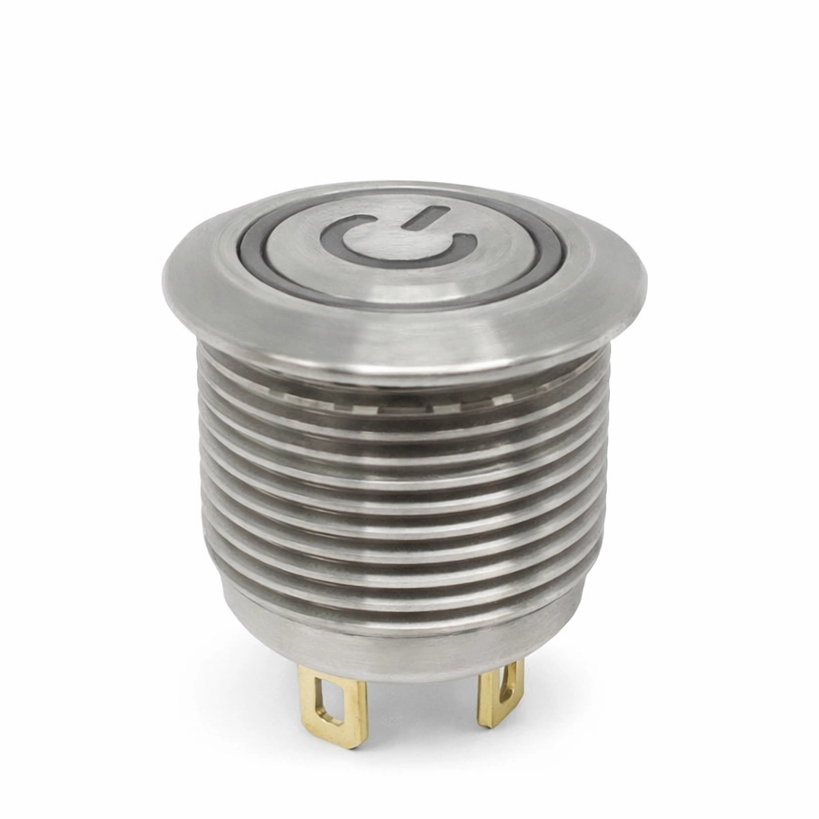

The MPB16 series consists of vandal-resistant switches, explosion-proof switches, and waterproof switches.
Key Features
Most compact switch on the market
Achieves extreme miniaturization through structural design, saving internal equipment space and reducing mechanical design complexity.
High current rating
Despite its compact size, the electrical rating reaches 2A / 36VDC, meeting the requirements of most industrial and equipment applications.
Long service life
Electrical life: 200,000 make‑and‑break cycles at full load; mechanical life: up to 1,000,000 cycles.
Versatile appearance options
Available in multiple button styles and illumination types, including flat, fixed ring, movable ring, and spot, to suit various design needs.
Applications
Industrial control products.
Healthcare.
Telecommunications.
Energy storage equipment.
