Technical Parameters
| Specification | |
| Rating | 50mA 12VDC |
| Operating temperature | -40°Cto85°C |
| Contact Resistance | 100mΩ Max.@1A/12VDC(Initial value) |
| Insulation Resistance | 100MΩ Min.at500VDC |
| Operating Life | 500,000 Cycles. |
| Dielectric Strength | 500V RMS@sea level. |
| Travel | About3.0±0.3mm |
| Operating Pressure | 300gf土150gf. |
| Torque | 11.5 kgf·cm |
| Ingree Protection | IP67 |
| Material | |
| Bushing: | Aluminum alloy, Black. |
| Base: | PA66 |
| Actuator: | PC. |
| CAP： | PA66，Black. |
| Spring: | steel. |
| O-Ring: | NBR(Black). |
| Terminal: | Brass, Gold flash plated. |
| Contact: | Brass, Gold flash plated. |
| Nut: | SPCC(Nickel Plated). |
Product Description

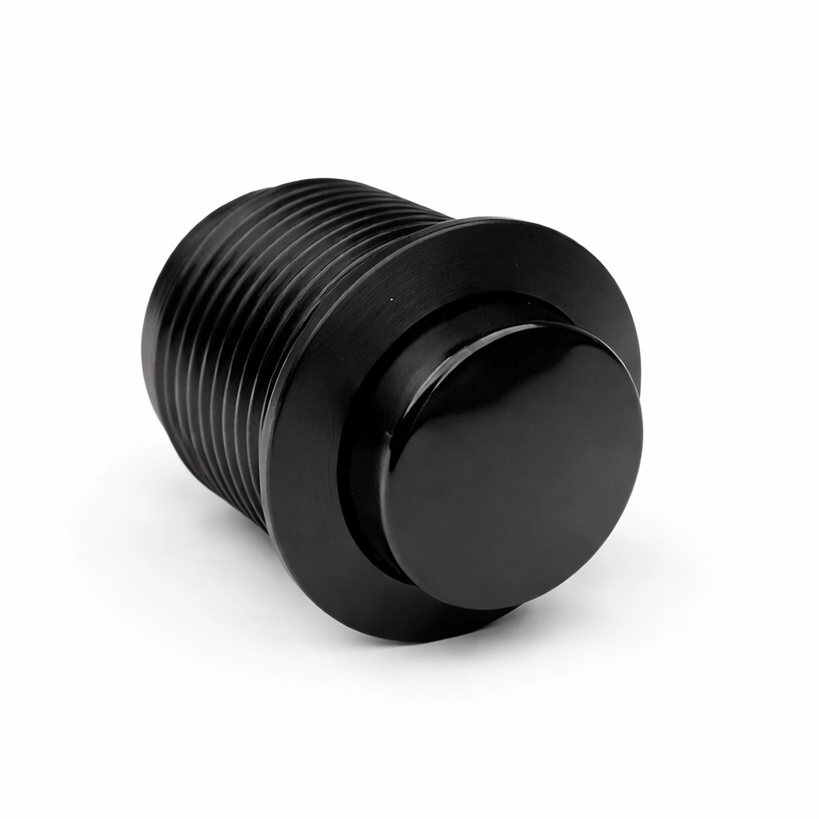

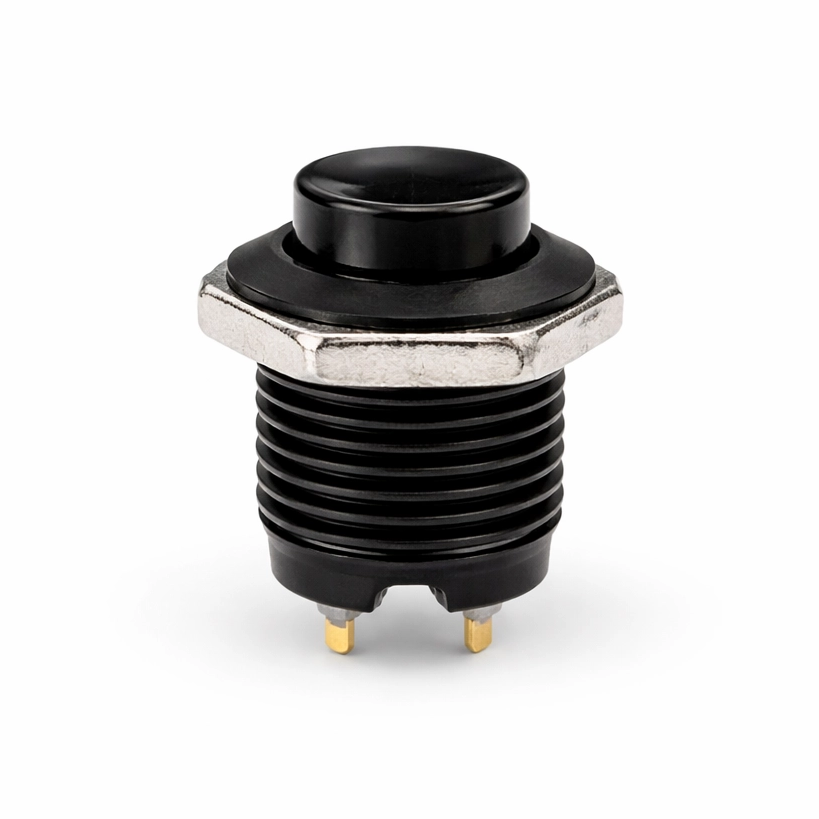

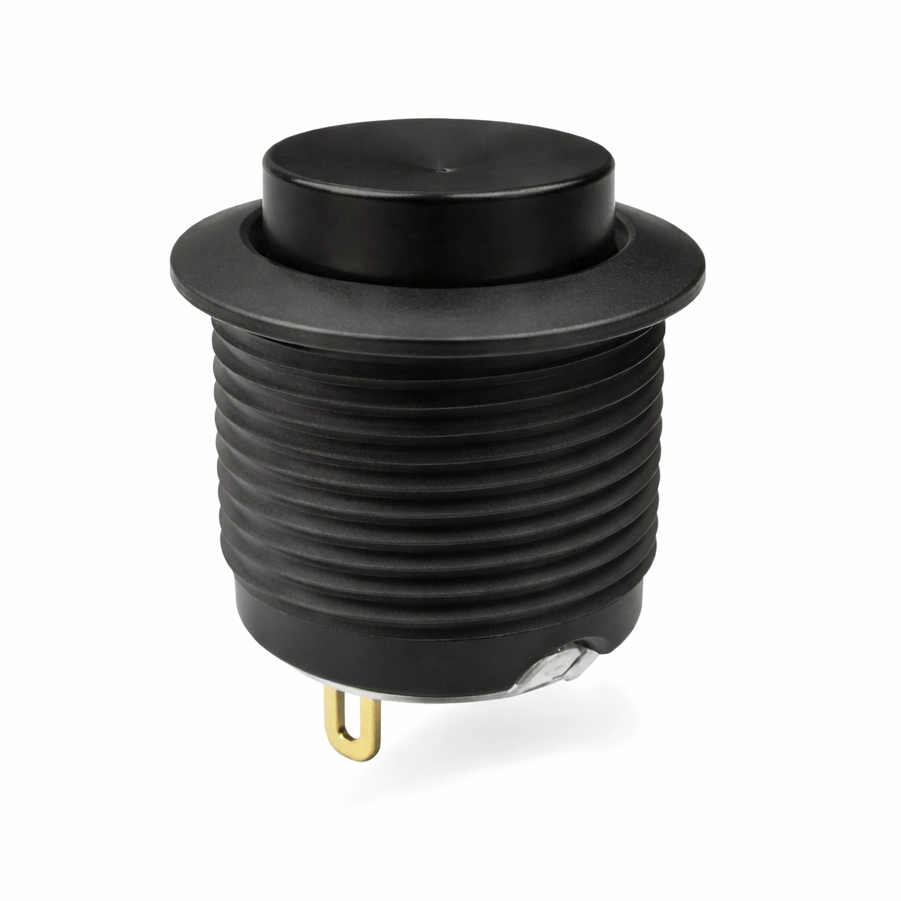

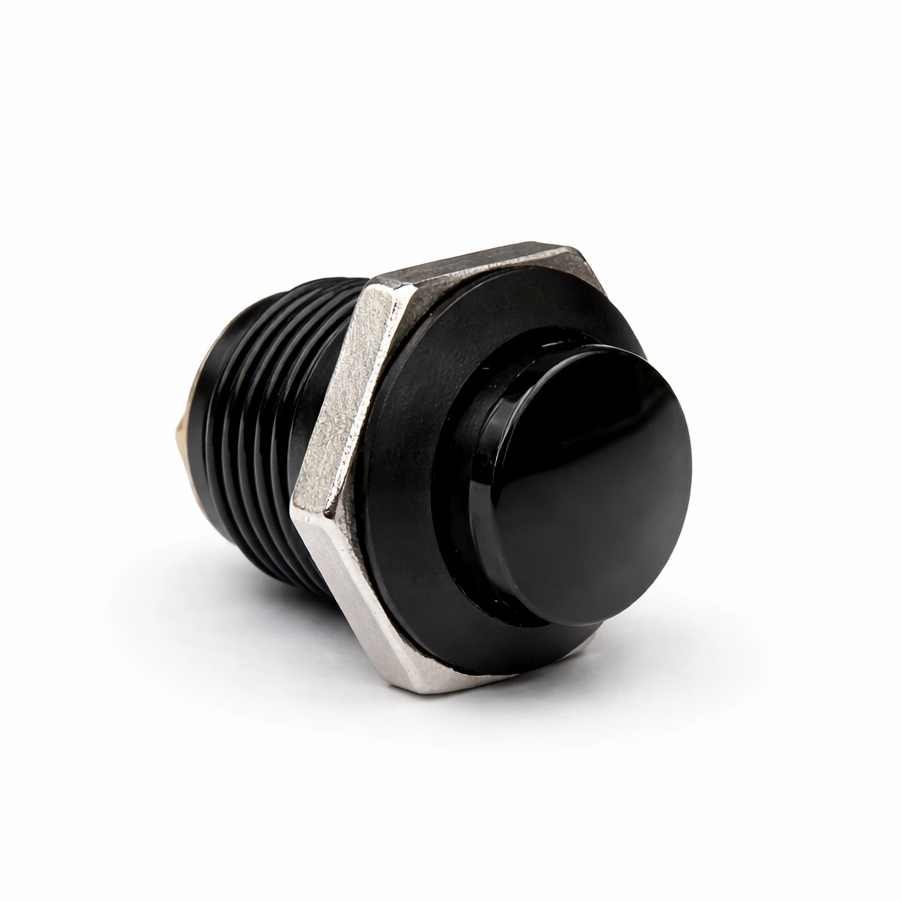

MPF16 is a black, low-current, waterproof metal pushbutton switch without a light
Key Features
Since 16mm switches are already difficult to use, we incorporated ergonomic considerations into the switch design to ensure that even users with long nails can operate the switch without interference or discomfort. By adjusting the actuation force curve, the switch automatically guides the user to the actuation point upon pressing, preventing accidental activation or failure to trigger. Furthermore, the meticulous structural design makes this the smallest switch on the market, thereby alleviating some of the challenges faced by customers' mechanical designers;
Applications
Industrial control products.
Healthcare.
Telecommunications.
Energy storage equipment.
