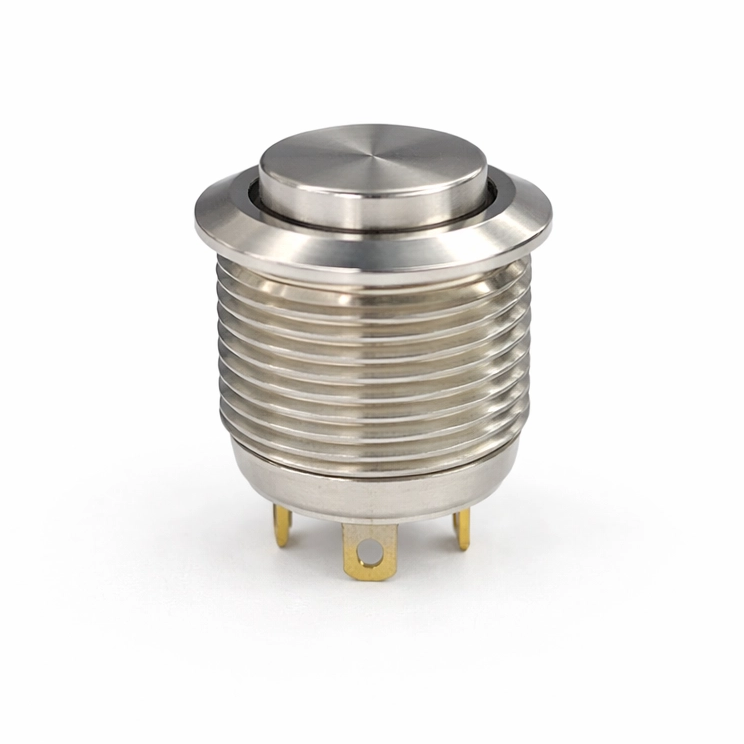

MPB16T Low Current Metal Pushbutton Switches

Quantity:
Availability:





Inquiry Add to Basket Download as PDF

Product Description

Technical Parameters

Specification
Rating：	50 mA / 12 VDC.
Electronics Life :	200,000 make-and-break cycles at full load.
Mechanical Life:	1,000,000 cycles
Insulation Resistance:	1,000 MΩ Min.
Dielectric Strength:	250V RMS@sea level.
Contact Resistance:	100 mΩ Max (Initial value).
Operating Temperature:	-20C to +70°C.
Travel	0.85 mm ± 0.25 mm.
Operating Pressure	4.5 N ± 1.5 N.
Torque	11.5 kgf·cm
Ingree Protection	IP67（In house test)

Material
Bushing:	Stainless steel
Base:	Nylon 6/6.
Actuator:	PC (Translucent UL 94 V-2)
CAP：	Stainless steel
Rubber:	Silicone (Translucent)
Sealing:	Viton
O-Ring:	Silicone (Translucent).
Terminal:	Brass, gold flash over silver plated.
Contact:	Stainless, silver plated.
Nut:	Brass(Nickel Plated).

Product Description

16mm low-current metal switch: Precision control × Enhanced protection, combining reliable performance with a modern design

Key Features

1. Designed for low‑current applications: Features a 16mm panel cutout, delivering stable and precise control.

2. Robust and durable: High‑quality metal housing with anti‑vandal design effectively resists external impact and wear, ensuring long‑term reliable operation.

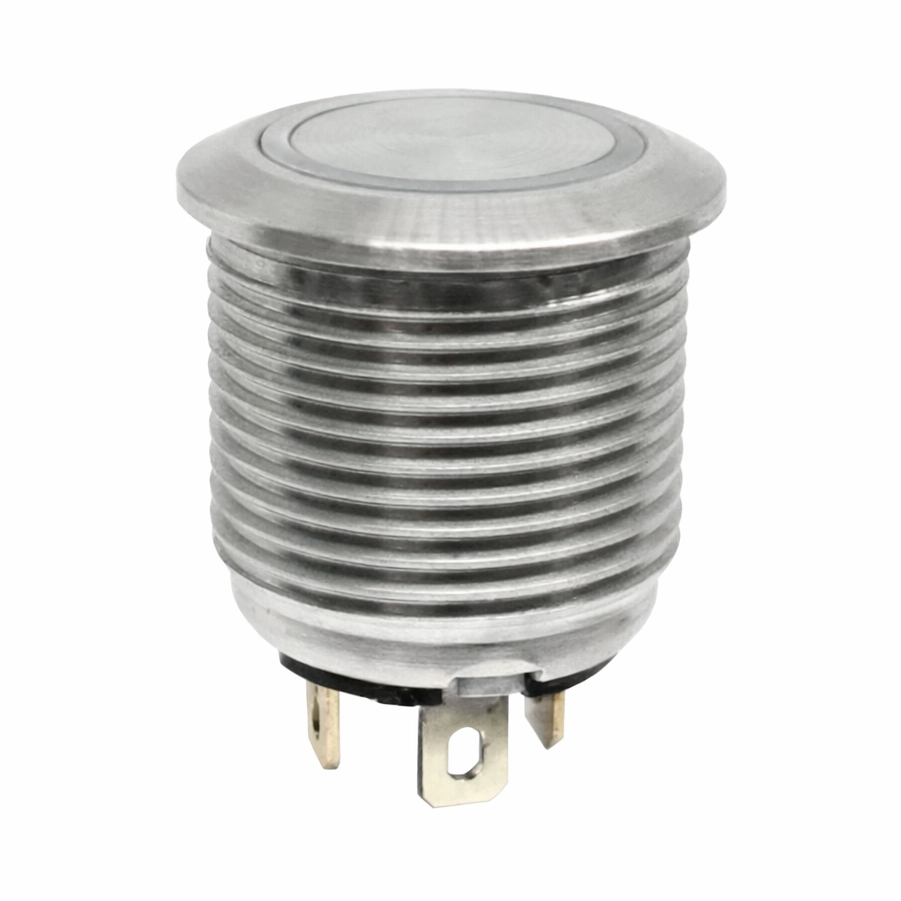

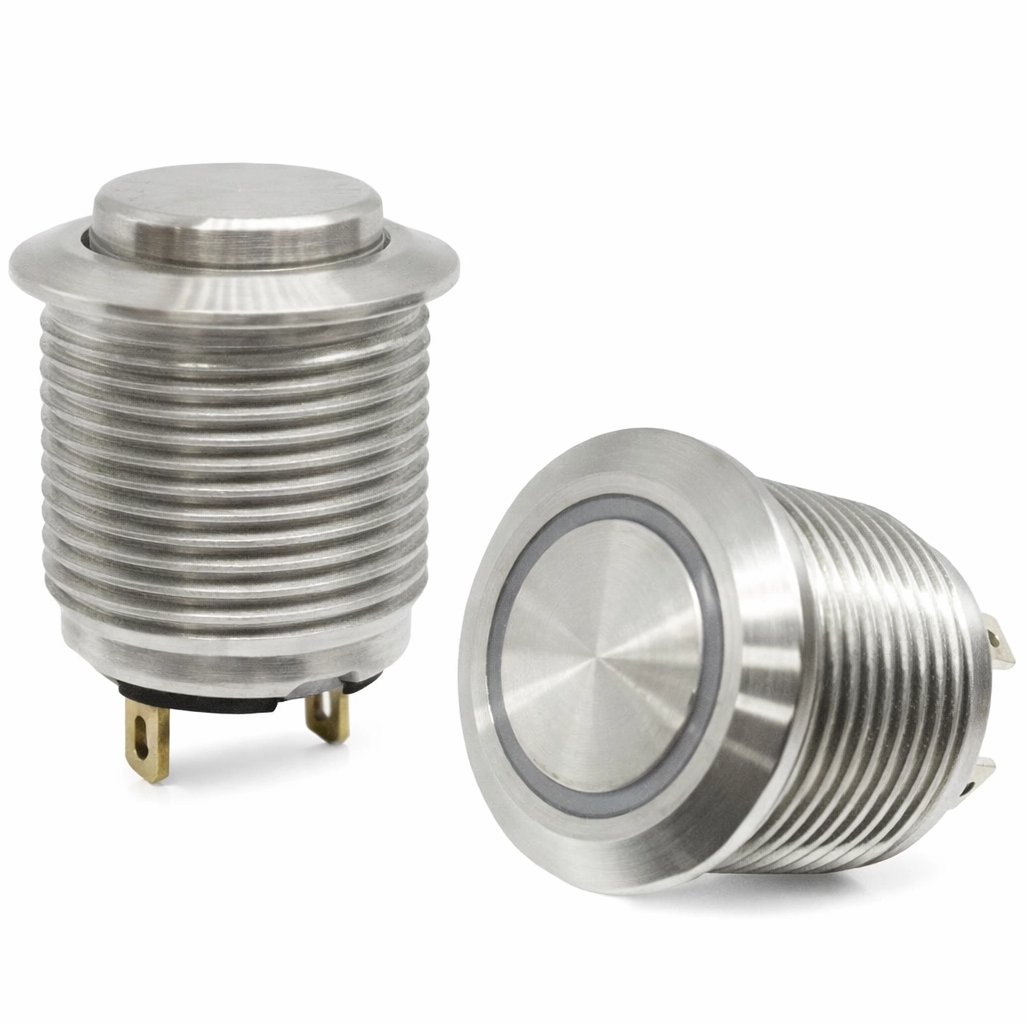

3. Multiple button styles: Available in flat and high‑profile button types to meet different aesthetic and tactile requirements.

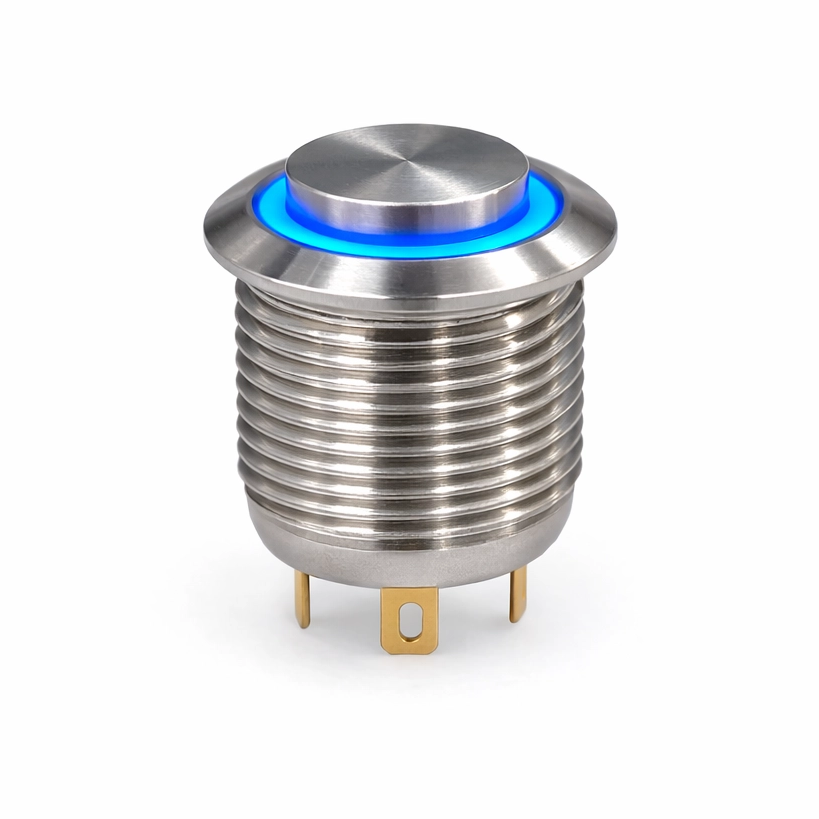

4. LED illumination: Clearly indicates operating status in low‑light environments, combining functionality with design appeal.

Applications

Electric shared bicycles, bathroom fixtures, parking lot access control systems, industrial controllers, computer peripherals, and medical equipment
