MPS19 Series Short Metal Pushbutton Switches

Quantity:
Availability:





Inquiry Add to Basket Download as PDF

Product Description

Technical Parameters

Specification
Rating:	2A / 36 VDC
Electrical Life:	200,000 make-and-break cycles at full load.
Mechanical Life:	1,000,000 cycles.
Dielectric Strength:	2,000V RMS@sea level.
Contact Resistance:	50 mQ MAX.@1A 12 VDC (initial value). (without wire leads)
Electrical Life:	-20°C to 70C.
Travel	About1.8mm
Operating Pressure:	4.5 ± 1.5 N.
Torque	1~3Nm
Ingree Protection	IP67,IK10(Stainless)

Material
Bushing:	Stainless Stee.l
Base:	PA66, White (UL 94 V-0).
Actuator:	PC, Translucent (UL 94 V-2), Stainless Steel
Inner Assembly:	PC, Transparent (UL 94 V-2).
Spring:	steel.
Sealing:	Silicone, Translucent.
O-Ring:	Silicone.
Terminal:	Brass, Gold flash plated.
Contact:	Brass, Coin silver, Gold flash plated.
Hex Nut:	Brass, Nickel plated.

Product Description

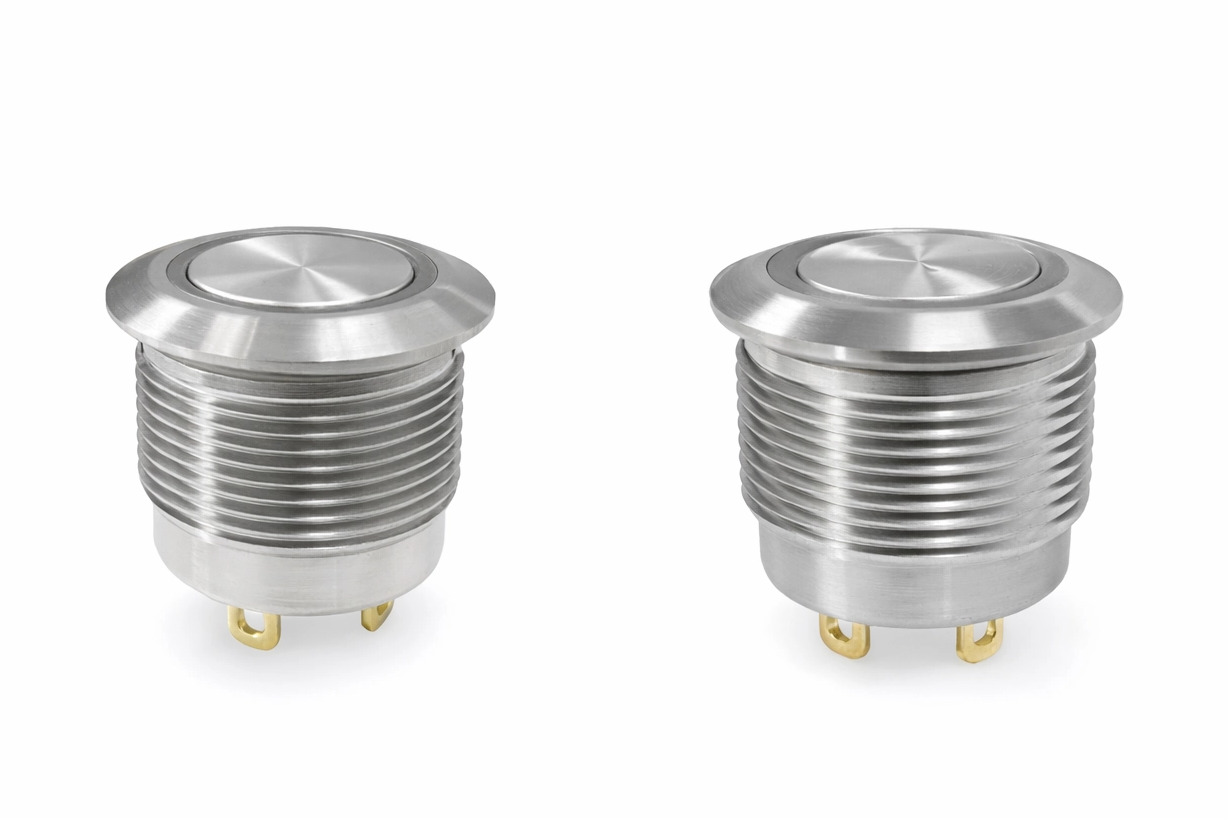

The MPS19 series consists of vandal-resistant switches, ultra-thin metal pushbutton switches, and short-stroke metal switches.

Key Features

1. Ultra‑long lifespan: Mechanical life up to 1,000,000 cycles and electrical life up to 200,000 cycles, ensuring reliability and durability.

2. High electrical rating: Rated at 2A / 36VDC, suitable for a wide range of industrial and equipment applications.

3. Superior protection ratings: Achieves IP67 waterproof rating and IK10 impact resistance (stainless steel version), ideal for harsh environments such as outdoor, underwater, and explosion‑prone settings.

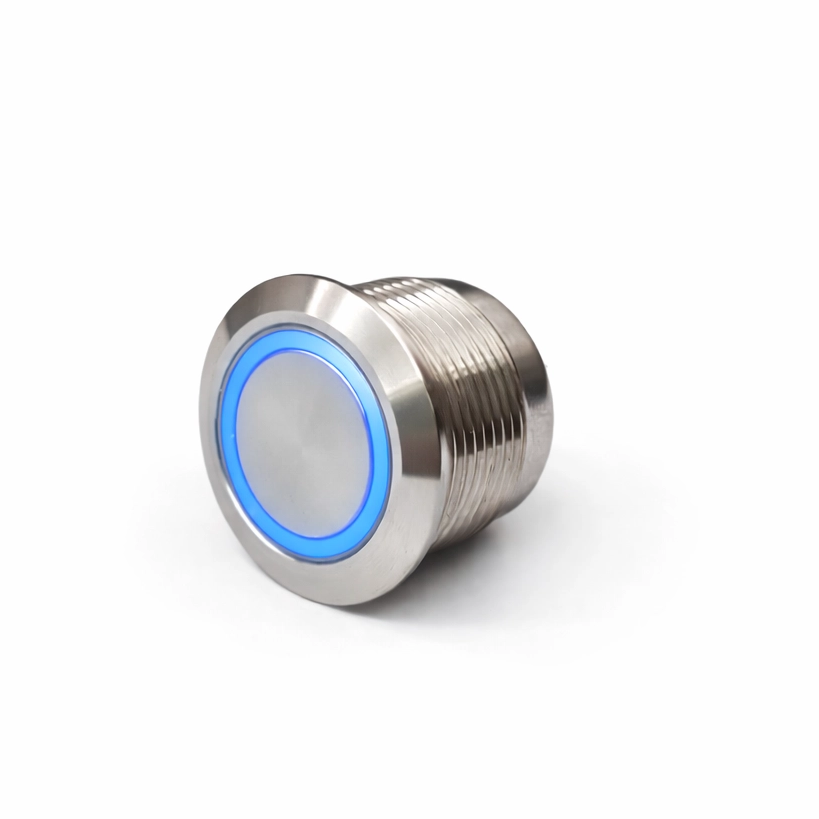

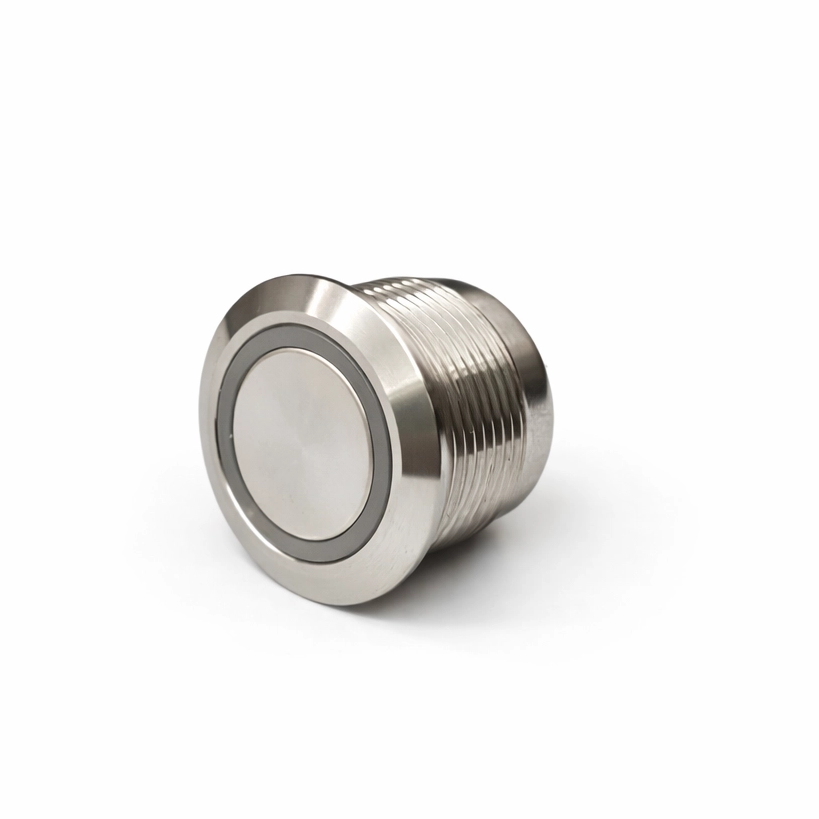

4. Versatile illumination options: Available in non‑illuminated, ring illumination, or power symbol with ring illumination styles to meet various design needs.

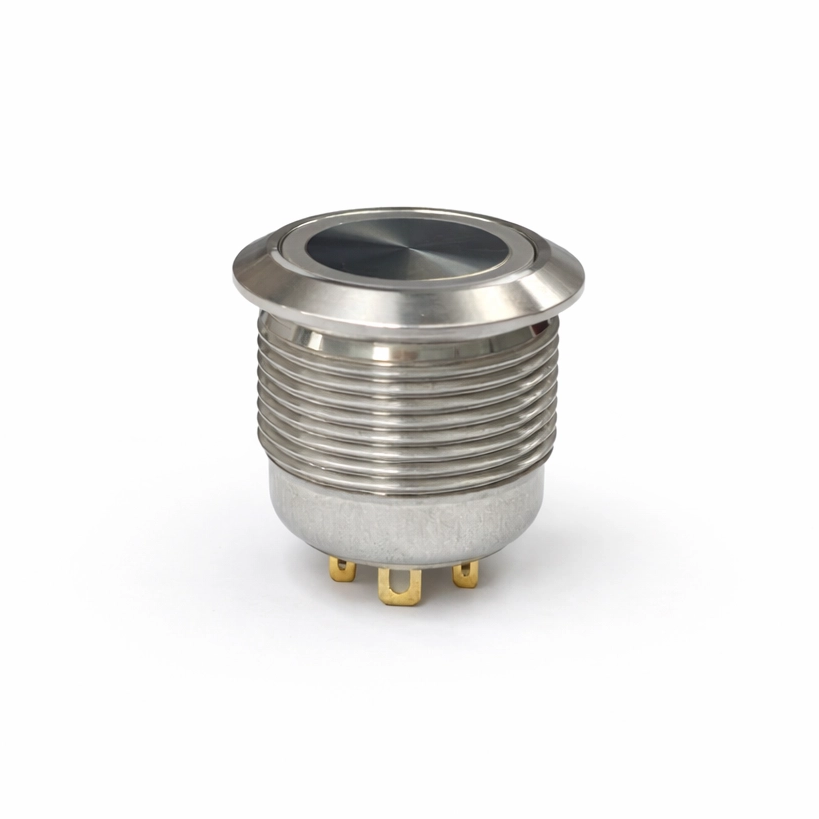

5. Flexible terminal options: Offers choices of soldering terminals, wire leads, or connector integration for easy installation and wiring flexibility.

Applications

Electric shared bicycles, bathroom fixtures, parking lot access control systems, industrial control systems, computer peripherals, medical equipment, and more.
