Technical Parameters
| Specification | |
| RATING : | 2A 24VDC |
| ELECTRICAL LIFE : | Min. 10,000 cycles |
| MECHANICAL LIFE : | 1,000,000 cycles |
| INSULATION RESISTANCE : | 100mΩ min. at 500VDC |
| OPERATING TEMPERATURE RANGE : | -20°C ~ 65°C |
| TRAVEL : | 1.5(0.59inch)+0.3mm |
| INGRESS PROTECTION : | IP67 (In house test) |
| Materials | |
| CASE & BUSHING: | Nylon 6/6 |
| CAP: | Polyurethane |
| BUTTON: | Silicone. |
| Case: | POM |
| NUT: | SPCC(Nickel Plated) |
| O-RING: | Silicone(Translucent) |
Product Description：

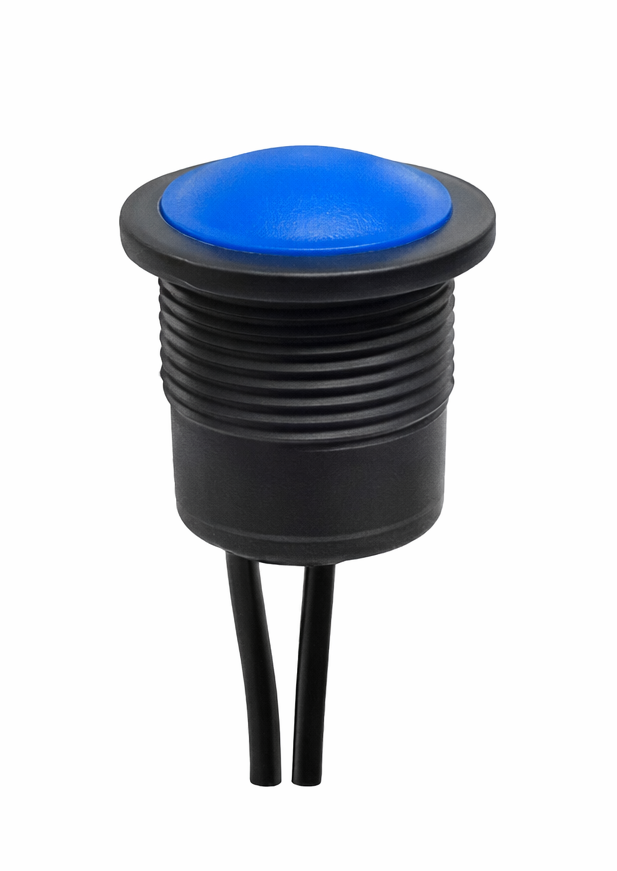

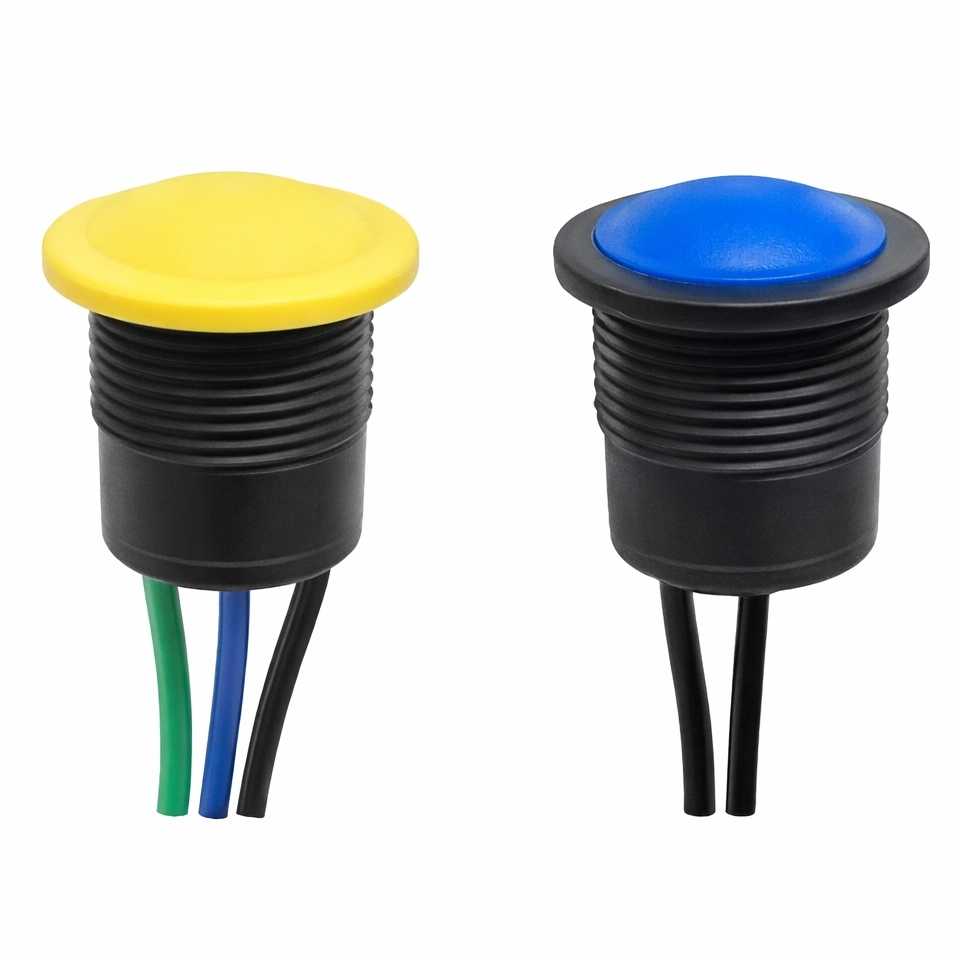

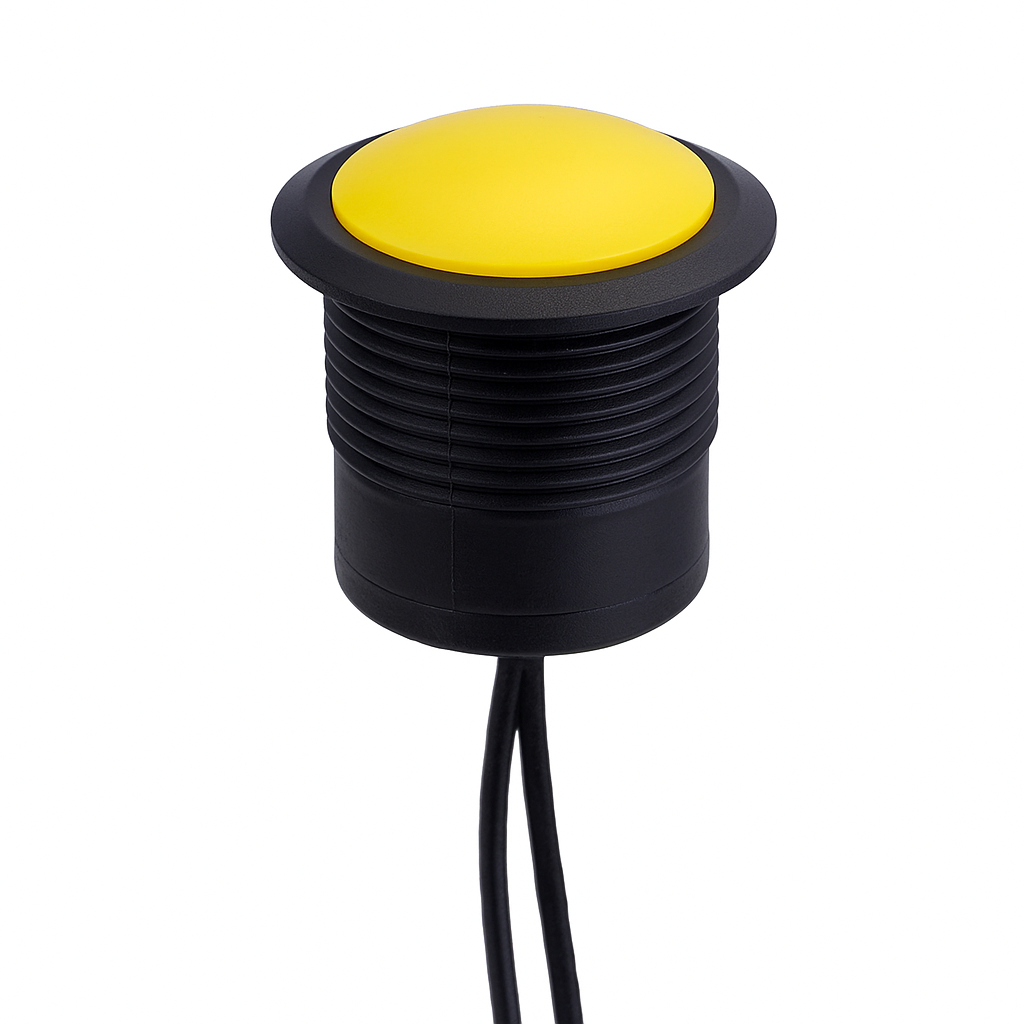

This is a slim 16mm push-button switch that effectively addresses the issue of accidental activation during use, while also offering a high-quality, premium appearance.
Advantages：
1. The PMD16 series is an excellent choice for those who prefer exposed, slim buttons.
2. It offers miniature thin-type pushbutton switches with a return function.
3. The mechanical life of the thin-type PMD16 series pushbutton switch reaches up to one million cycles.
4. The voltage rating is 2A/24VDC.
5. It features a short operating travel of only 1.5mm.
6. The switch is fully waterproof and has been tested in-house to meet IP67.
Application：
Industrial controllers, lighting fixtures, computer peripherals, communication equipment, medical devices, industrial instruments, ship equipment, overhead crane equipment.
