8A Series Sealed Pushbutton Switches

Sealed IP67 Pushbutton Switches
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Technical Parameters

Specification
MAX.CURRENT/VOLTAGE RATING WITH RESISTIVE LOAD:

3A with resistant load @120 VAC or 28VDC

1A with resistant load @250 VAC

CONTACT RESISTANCE: 20mΩ max. (initial value) @ 2-4VDC   100mA for both silver and gold plated contacts.
DIELECTRIC STRENGTH: 1000 Vrms min.@sea level. (initial value)
MECHANICAL LIFE: 50,000 make-and-break cycles
OPERATING TEMPERATURE: -40°C to 85°C
INSULATION RESISTANCE: 1,000MΩ min./1000VDC

Material
CASE: Glass filled nylon 6/6, flame retardant, heat stabilized ( UL94V-0 ).
PLUNGER: Thermoplastic polyester (UL 94V-0), internal o-ring sealed.
SWITCH SUPPORT:  Brass or steel electrotin plated.
CONTACT: Copper or brass with silver or gold plated

Product Description:

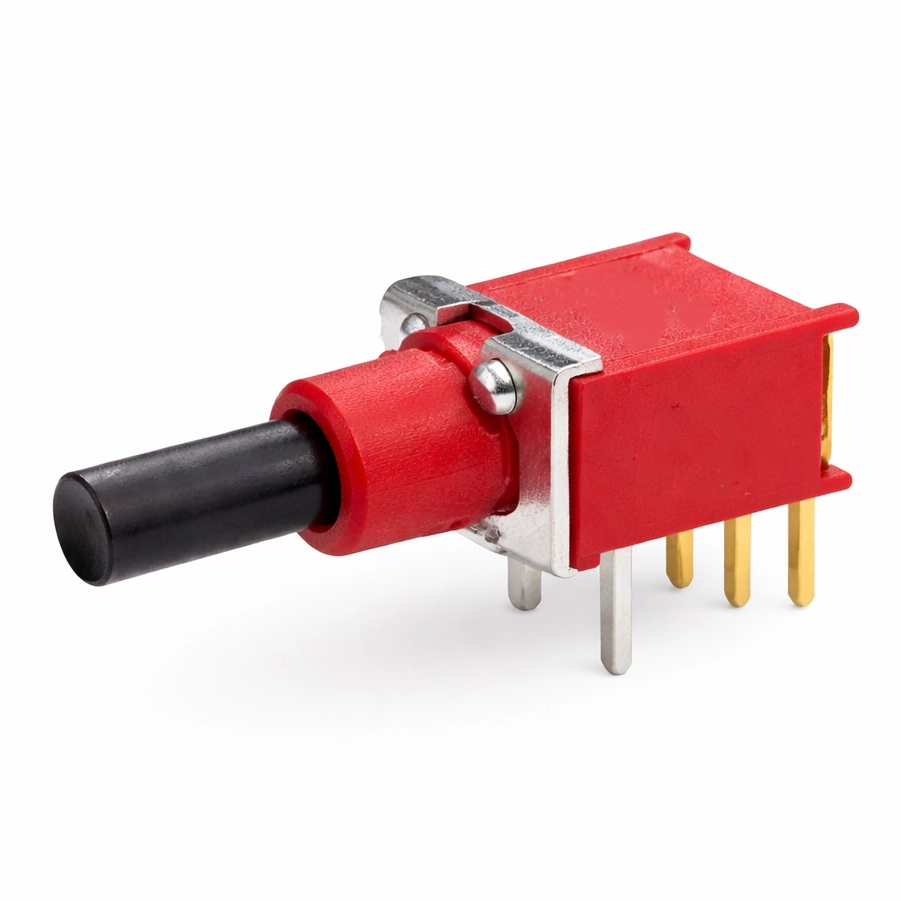

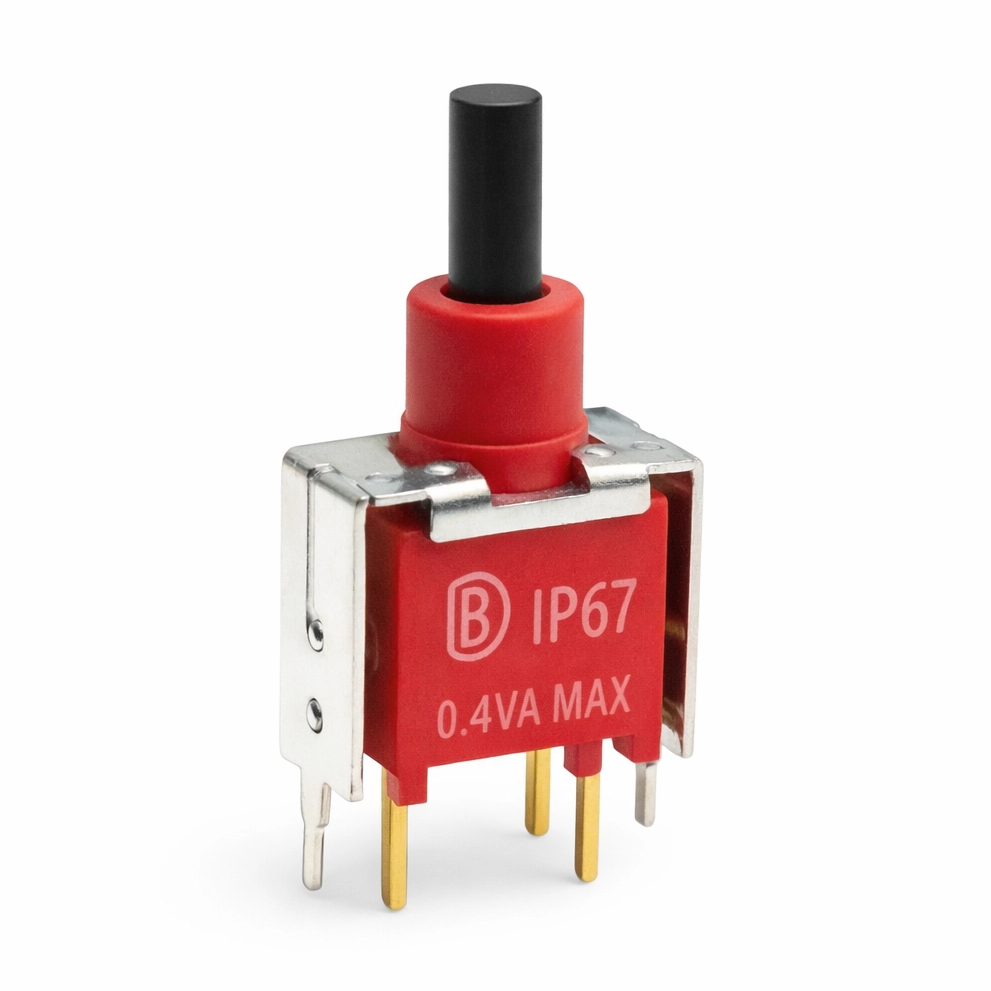

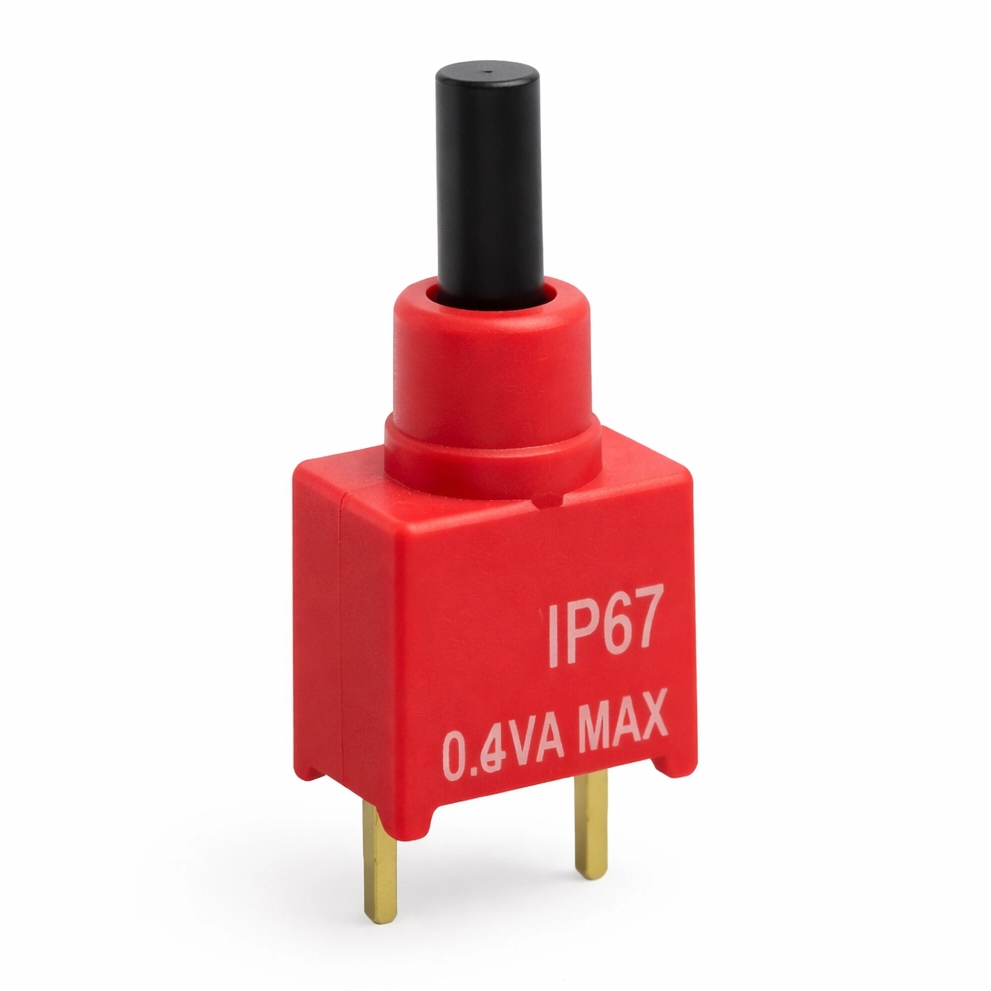

8A Waterproof Micro-Miniature Pushbutton Series, featuring IP67-rated waterproof design and materials,


Advantages

1. Reliable Waterproof and Dustproof Performance;
Adopts IP67‑rated waterproof and dustproof design with high‑quality materials, suitable for harsh environments such as moisture and dust.

2. Flexible Mounting and Operation;

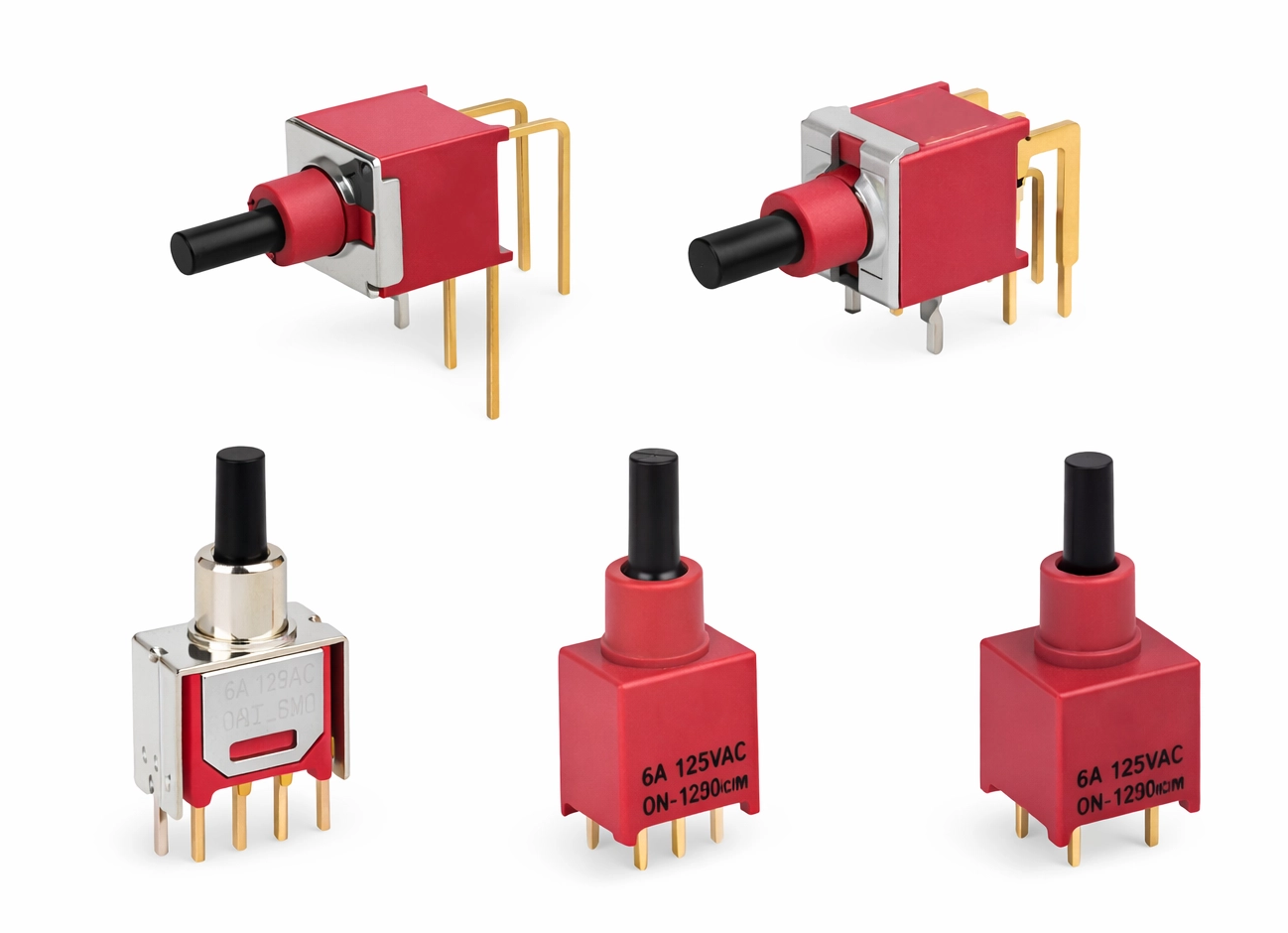

Offers 90° and 180° pin configurations, with a choice of straight or horizontal body orientation to accommodate different user habits and space layouts.


Application:

Telecommunications and network equipment;

Instrumentation and testing equipment.;

Computer peripherals.;
