700H

Quantity:
Availability:





Inquiry Add to Basket Download as PDF

Product Description

Technical Parameters

Specification
ELECTRICAL LIFE:	3 Min. 50,000 make-and-break cycles at full load.
INSULATION RESISTANCE:	1,000M-ohms min.
CONTACT RESISTANCE:	10m-ohms max. initial @2-4VDC 100mA for both silver and gold plated contacts.
DIELECTRIC STRENGTH:	1,500VAC for 1 minute.
OPERATING TEMPERATURE:	-30°C to 85°C

Materials
CASE:	Diallyl phthalate(DAP)(UL 94V-0).
PLUNGER:	Brass, black finish with o-ring sealed.
BUSHING:	Brass, black finish with o-ring sealed.
EXTERNAL SHELL:	FR52 (UL 94V-0).
TERMINAL SEAL:	Epoxy.

Product Description：

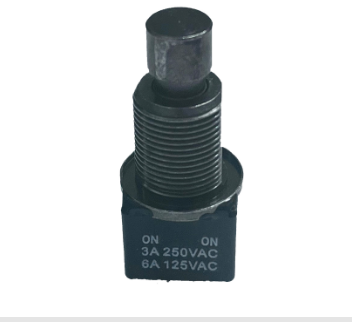

Professional ON-ON pushbutton switches are available in SPDT and DPDT configurations, offering different switching functions, with 15/32-inch threaded copper terminals and an 8.00 mm diameter pushbutton.

Key features：

The housing is made of high-temperature-resistant FR52 nylon

Double-shell construction with high mechanical strength and electrical insulation

The main body, copper terminals, buttons, and accessories feature a matte black or glossy black finish

IP68 waterproof rating in accordance with IEC/EN 60529; the front is sealed with two O-rings, and the rear is fully waterproof

Complies with UL, CUL, RoHS, and REACH standards

Application:

Medical Equipment

Instruments and Meters

Marine Equipment

Handheld Devices
