Technical Parameters
| Specification |
| FUNCTION: | Momentary action. |
| MECHANICAL LIFE: | 100,000 make-and-break cycles. |
| ELECTRICAL LIFE: | 50,000 cycles. |
| CONTACT RESISTANCE: | 200 m12 max. (initial value) @ 2-4VDC 100mA |
| CONTACT RATING: | 0.4Volt-Amps(VA) max.@20V max(AC or DC) |
| OPERATING POSITION: | 0.65±0.2mm. |
| OPERATING FORCE: | 450±130gf. |
| DIELECTRIC STRENGTH: | 1,000 V RMS@sea level.(initial value) |
| DEGREE OF PROTECTION： | IP67 (In house test) |
| OPERATING TEMPERATURE: | -30℃ to 85℃ |
| TORQUE: | 2.2 Nm max. applied to nut. |
| INSULATION RESISTANCE: | 1,000MΩ min. |
| Material |
| HOUSING&BUSHING: | Nylon 6/6 |
| BUTTON: | Stainless |
| ACTUATOR: | Silicon |
| CONTACT: | Copper with gold plated |

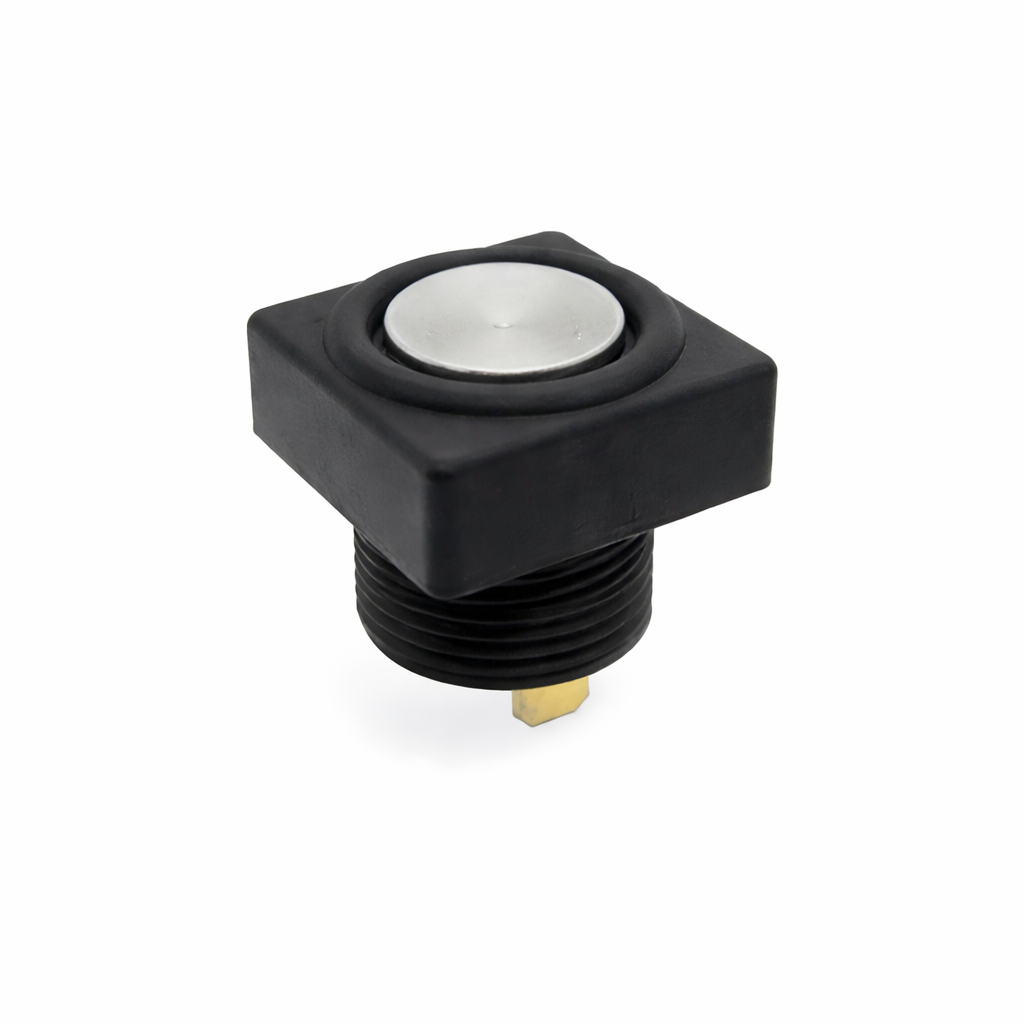

Product Description：
The PY Series consists of industrial control switches and industrial switches
Advantages：
The PY series features a stable actuation mechanism with an operating force of approximately 600–700 grams, delivering a distinct tactile feel suitable for industrial environments.
With an operating temperature range of -30°C to 85°C, the contact interface uses stainless steel and a dust-proof rubber seal, making it ideal for demanding applications such as machine tools while preventing travel obstruction.
Application：
Industrial remote control.
Large control panel.
