PSD Series

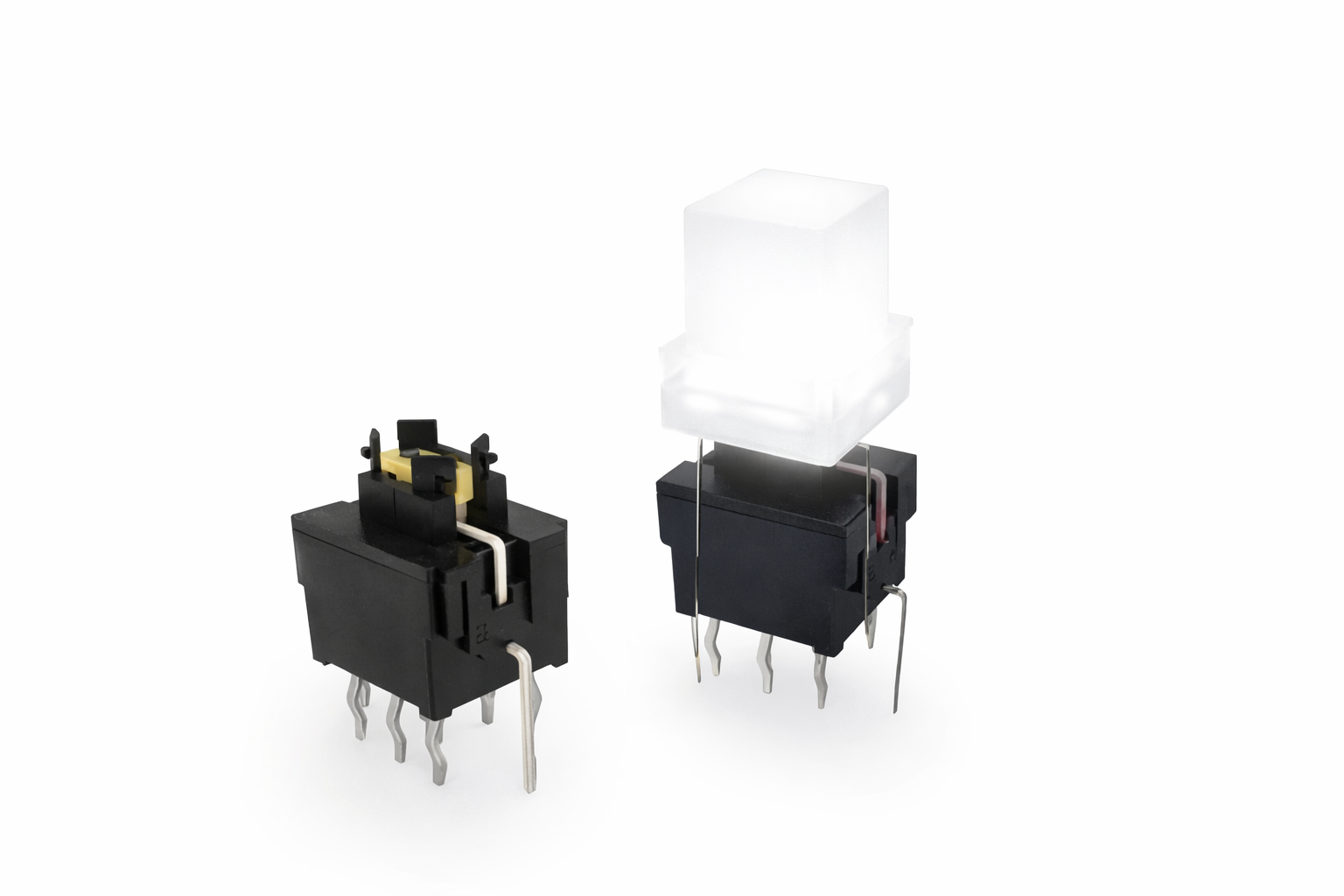

PSD Series Pushbutton switch
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Technical Parameters

Specification
CIRCUIT:

DPDT

RATING: 0.1A, DC30V MAX. / 100mA, DC1.5V MIN.
CONTACT RESISTANCE: 50 m 12 MAX.
INSULATION RESISTANCE: 100 MΩ MIN./500VDC
OPERATING TEMPERATURE: -20°C to 70°C
ELECTRICAL LIFE: 50,000 cycles
ACTUATION FORCE: 250 ± 100g
TRAVEL:

Full Travel : 1.5± 0.4mm

Contact Travel : 1.0±0.4mm

INSULATION RESISTANCE: 1,000MΩ min.
Material
CASE: Glass filled Nylon 6/6, black.
TERMINAL: LCP, Black & Brass, silver plated.
ACTUATOR: Glass filled Nylon 6/6, black.
HOUSING: Glass filled Nylon 6/6, black.
CONTACT: Phosphor bronze, silver plated.

Product Description:

The PSD series consists of illuminated switches and self-locking pushbutton switches


Advantages:

  • Features a latching function and a variety of interchangeable caps, allowing combinations of different heights, sizes, and shapes such as square and round.

  • It is the smallest illuminated latching switch available on the market.


Application:

Audio equipment.

Consumer products.

Instruments and meters
