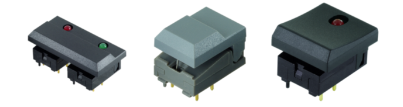

SP86N Series

Piano-style button

Momentary and latching functions

LED illumination

SPDT circuit

Applications: Audio equipment, broadcasting systems

Switch rating: 24V DC @ 12mA

Terminals: Through-hole (TH)

Total travel: 2.5mm + 0.5mm

Operating Force: SP86N and SP86L: 170 gf ± 50 gf; SP86NH: 400 gf ± 100 gf

Mechanical Life: SP86NH: At least 1,000,000 cycles; SP86L: 500,000 cycles

Illumination
