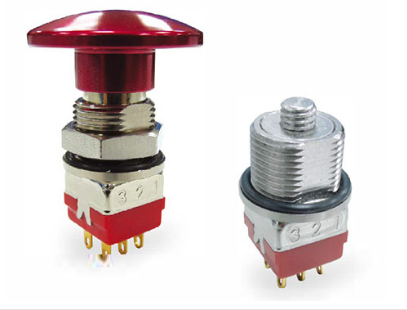

PTW Series

Push-Pull Switches
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Technical Parameters

Specification
Actuation Force:

Push force: 2,000 ± 500g.

Pull force: 2,100 ± 600g.

Total travel: 2 mm ± 0.2 mm

Contact Resistance10 mQ MAX.
Operation Temperature:-40±3°C (96 hours) to +85±3°C (96 hours).
Operating Life

Electornics Life: 4A, 24V DC, 10,000 cycles.

Mechanical Life: 6-8 operational cycles

per minute, 100,000 cycles

Dielectric Strength:

1,000V RMS 50HZ MIN. Between terminals (initial value).

2,000V RMS 50HZ MIN. Between terminals and metal panel

(initial value)

Ingree Protection:IP65 (In house test)

Materials
Case:Diallyl phthalate (DAP) (UL 94 V-0).
Plunger:Brass, nickel plated.
Bushing:Brass, nickel plated.
Housing:Brass, nickel plated.
Moving Contact:Copper, Gold plated.
Terminal:Copper, Gold plated.

Product Description:

Common emergency switches typically require a twist-to-unlock function before use and are often damaged by impact during operation. Our R&D team has reinforced the switch structure with high-density, all-metal materials, enhancing both durability and user-friendly convenience. Through testing, we have achieved optimal specifications to prevent accidental activation or shutdown, ensuring extended service life.


Advantages:

  1. Reinforced structure with high impact resistance
    Made of high-density, all-metal materials, making it less prone to damage from impact compared to conventional switches.

  2. More user-friendly operation
    Enhances convenience while maintaining the safety of the twist-to-unlock mechanism.

  3. Anti-mistake design
    Validated through testing to achieve optimal specifications, effectively preventing accidental shutdown or activation.

  4. Extended service life
    Overall durability is improved, ensuring a longer operational life.

  5. IP65 Waterproof


Applications:

Heavy-duty equipment remote control
