TF-11 Series

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Technical Parameters

Specification
RATING:

6A 125VAC, 3A 250VAC

CONTACT RESISTANCE: 50 mΩ max
DIELECTRIC STRENGTH:

AC 1500V 1minute

INSULATION RESISTANCE: DC 500V 100MΩ min.
Material
CONTACT COPPER STRIP(C1100)
SPRING PIANO WIRE
SLIDER PA66
CASE PHENOLIC (373)
TERMINAL COPPER STRIP(C1100)

Product Description:

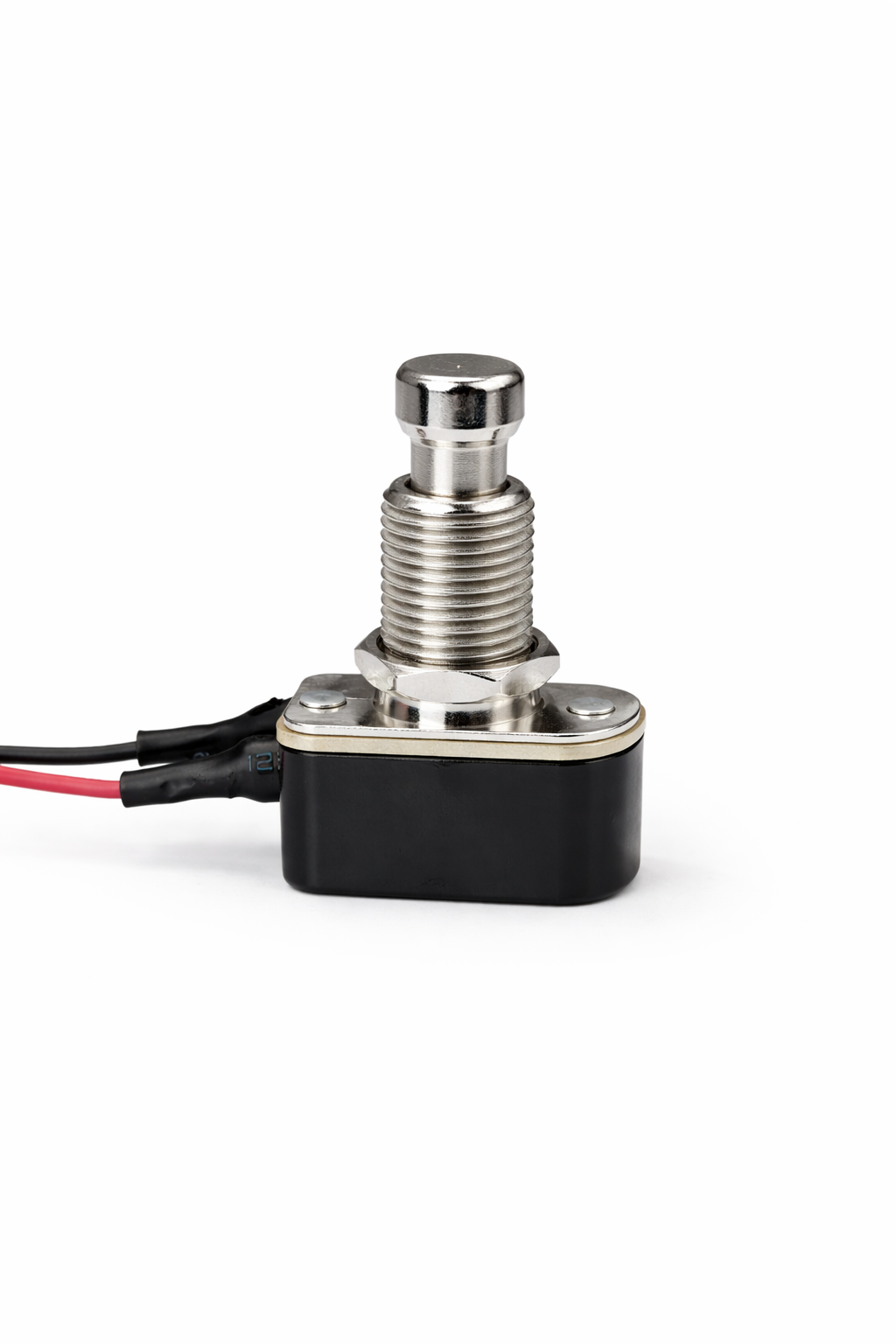

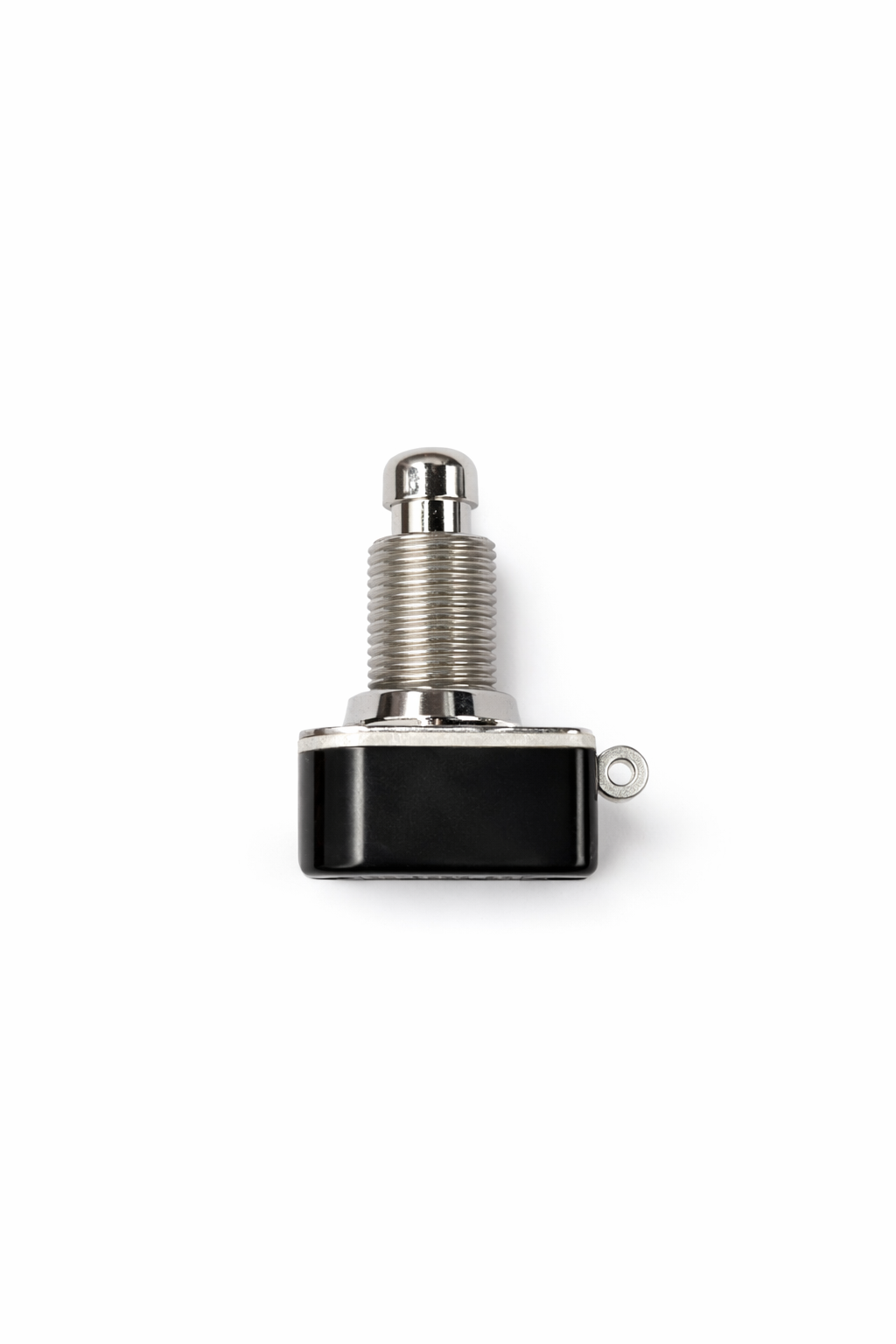

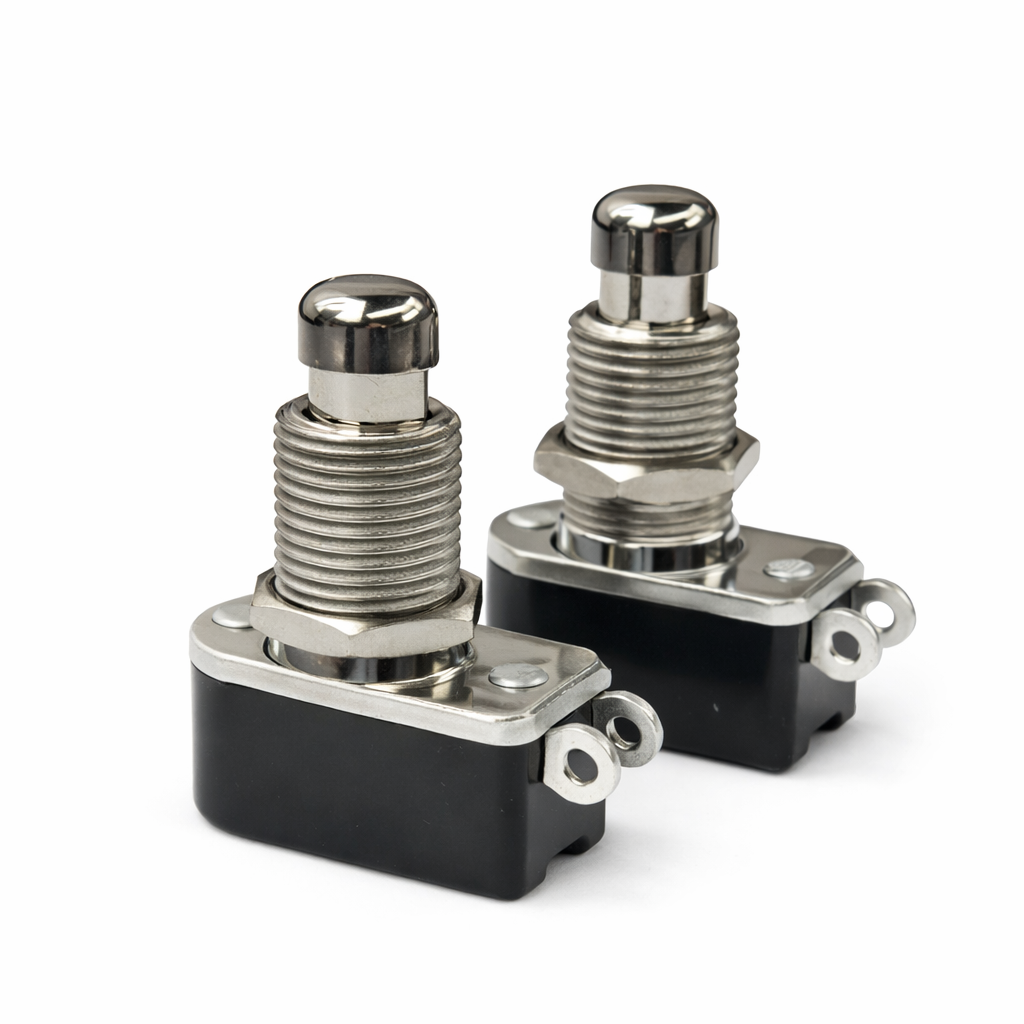

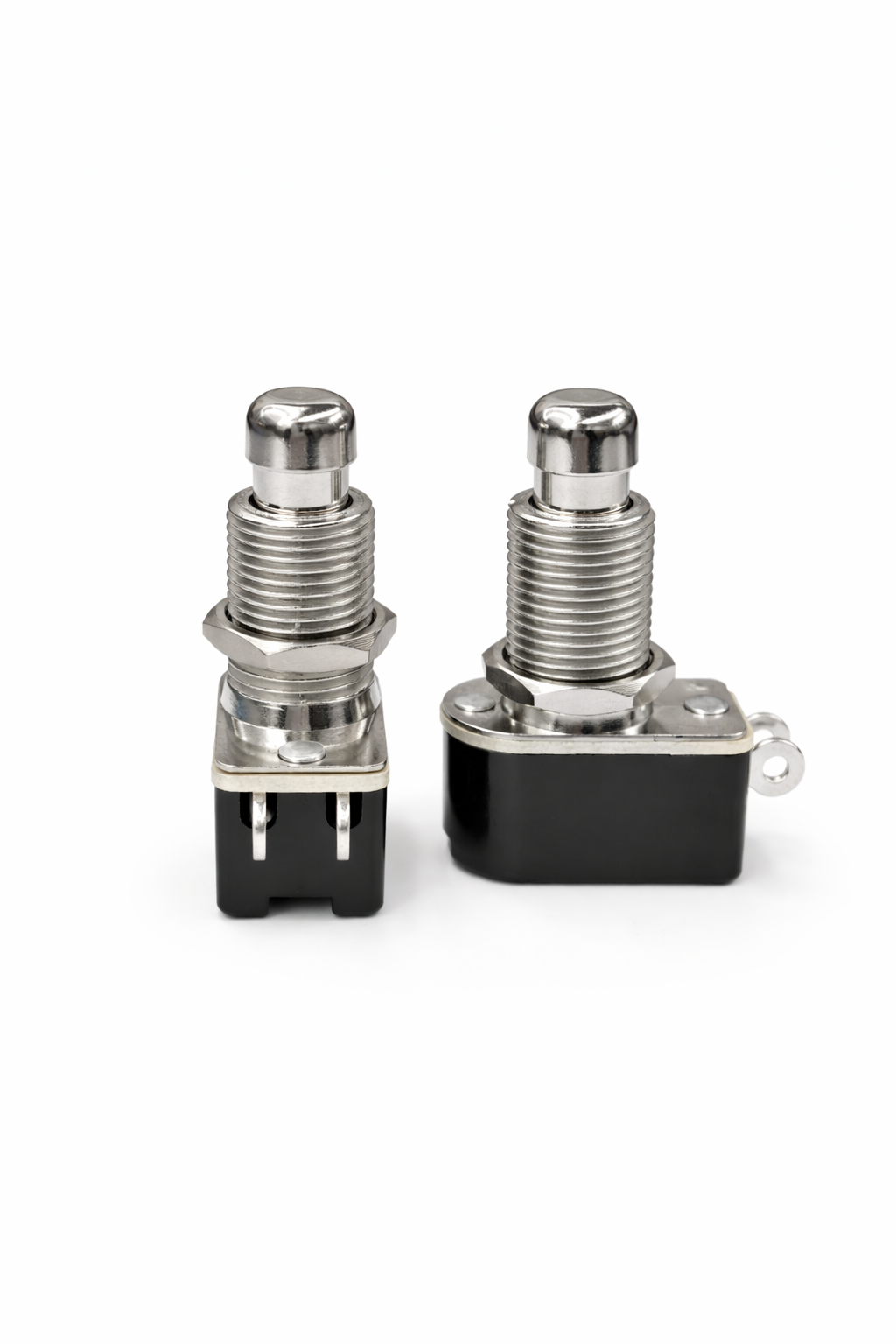

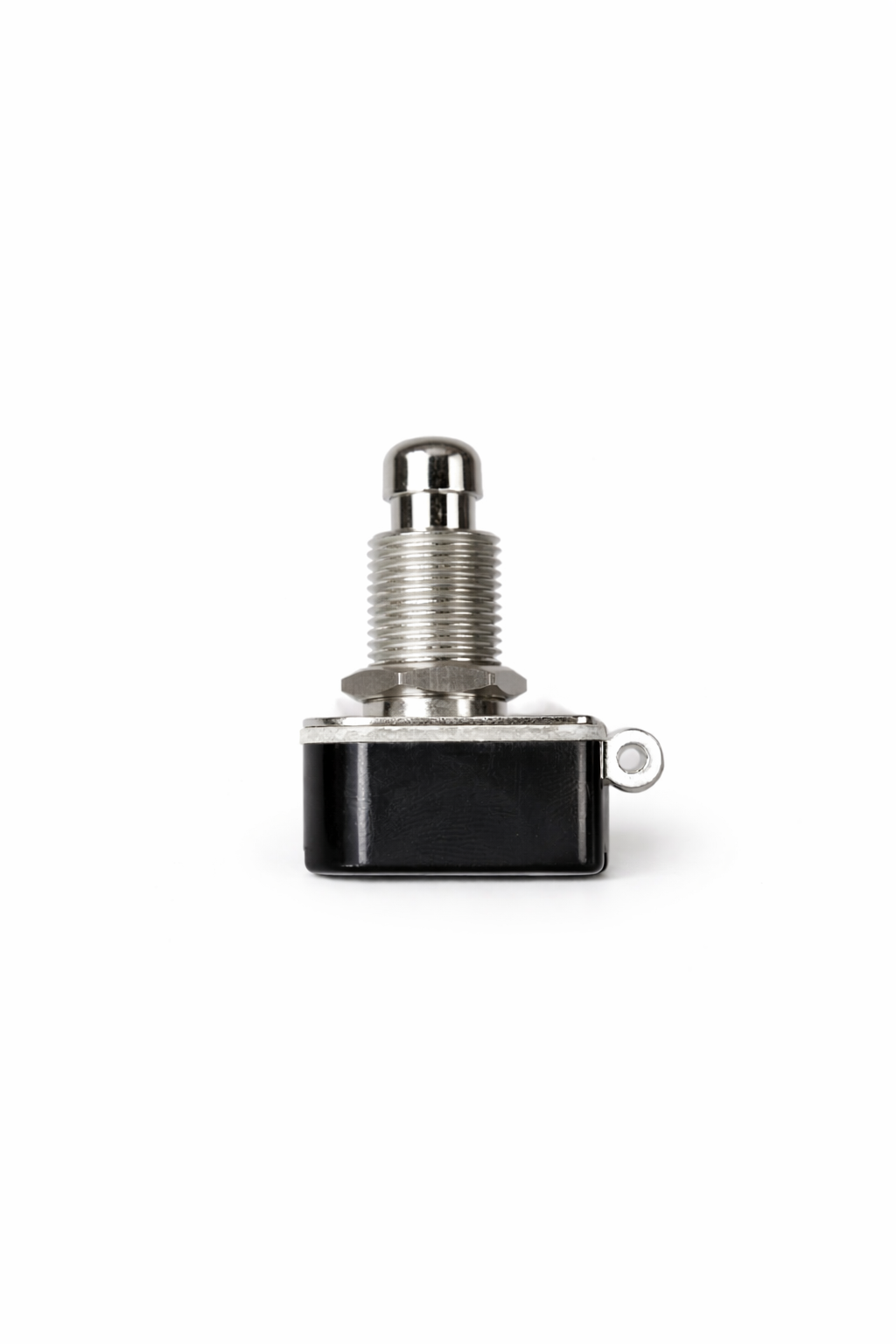

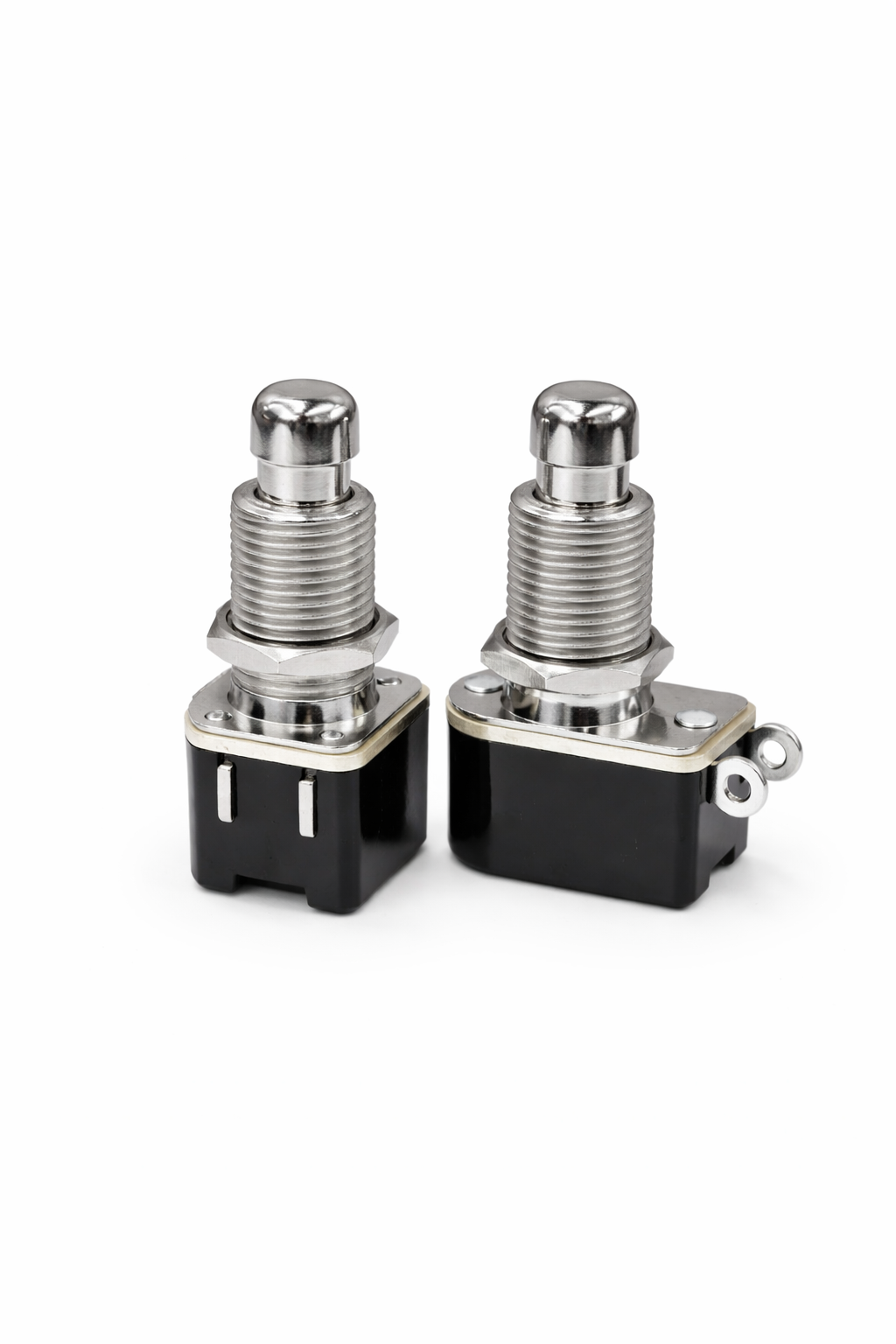

The TF-11 series is a foot switch with an electrical life of up to 6,000 cycles.


Feature:

MATERIAL: Frame is stainless plate. Bushing and toggle are nickel plated metal. Base is phenolic.

Mounted by nut.


Application:

Music effects pedals
