Technical Parameters
| Specification | |
| MAX.CURRENT/VOLTAGE RATING WITH RESISTIVE LOAD: | 100mA 24VDC 2A 125VAC |
| INITIAL CONTACT RESISTANCE: | 50mΩmax |
| INSULATION RESISTANCE: | 1GΩmin.at 500VDC |
| DIELECTRIC STRENGTH: | 1,000 VAC rms.(initial value) |
| ELECTRICAL LIFE AT FULL LOAD: | 200,O00 cycles |
| OPERATING TEMPERATURE: | -30°C to 85°C |
| TOTAL TRAVEL: | 2.5mm(.098) |
| OPERATING FORCE: | 2N~5N |
| CONTACT BOONCE: | 10ms |
| MECHANICAL LIFE: | 1.000.000 cycles |
| TORQOE: | 0.5Nm max |
| INGRESS PROTECTION: | IP67 |
| Materials | |
| Cap: | Polyamide 6/6. |
| Case： | Polyamide 6/6. |
| Bushing: | Polyamide 6/6. |
Product Advantages：
Function & Construction: SPST function with a die-cast metal housing that combines aesthetics with industrial strength, meeting both appearance and durability requirements.

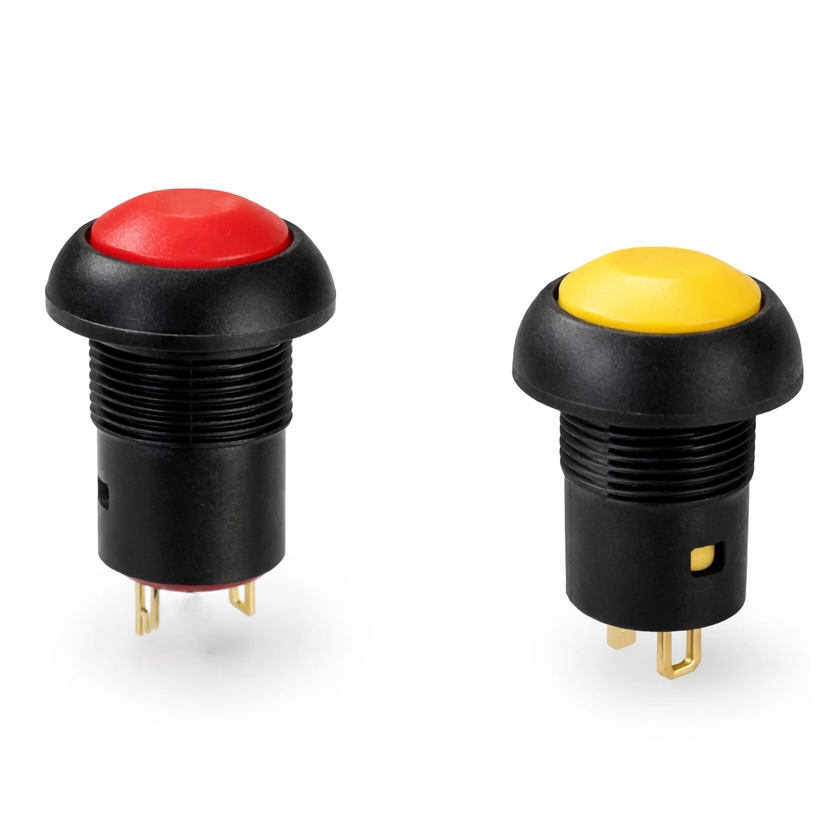

Versatile Options: Available in round, square, and high-profile button caps in multiple colors to suit various design and identification needs.
High Protection Rating: Threaded panel mounting with IP67 sealing, ensuring dust-tight and waterproof performance.
Extended Service Life: Electrical life up to 500,000 cycles, capable of reliable operation in harsh environments.
Application：
• Communication equipment.
• Medical devices.
• Industrial control panel.
• Marine equipment.
