Technical Parameters
| Specification | |
| Rating | 2A 28VDC,4A 12VDC,125mA 125VAC,100mA 28VDC |
| Operating temperature | -30°C to +70°c |
| Contact Resistance | 100mΩ max. initial |
| Dielectric Strength | 1500 V rms@sea level 1 minuite |
| Insulation Resistance | 1GQ min. at 500VDC 1 minute |
| Life Cycles | Mechanical:500,000 cycles |
| Electrical:50,000 cycles | |
| Materials | |
| Base | PA9T+30%GF(94V2) |
| Actuator | Silicon |
| Bushing | PA-66(94v2) |
| Terminal/Contacts | Copper alloy |
Product Description

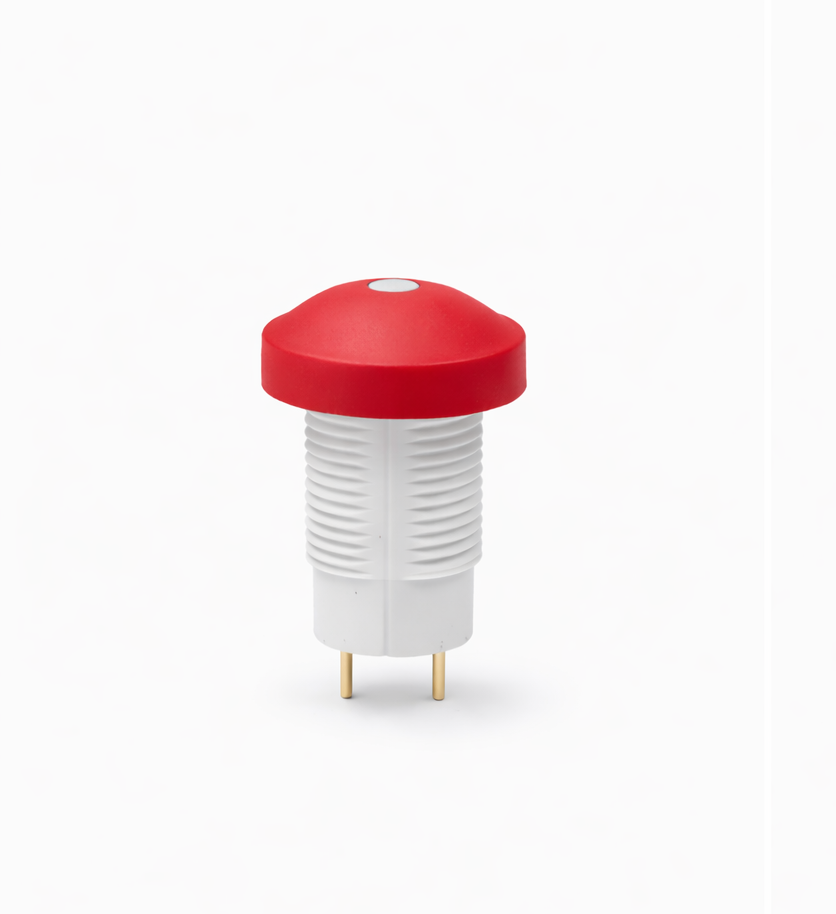

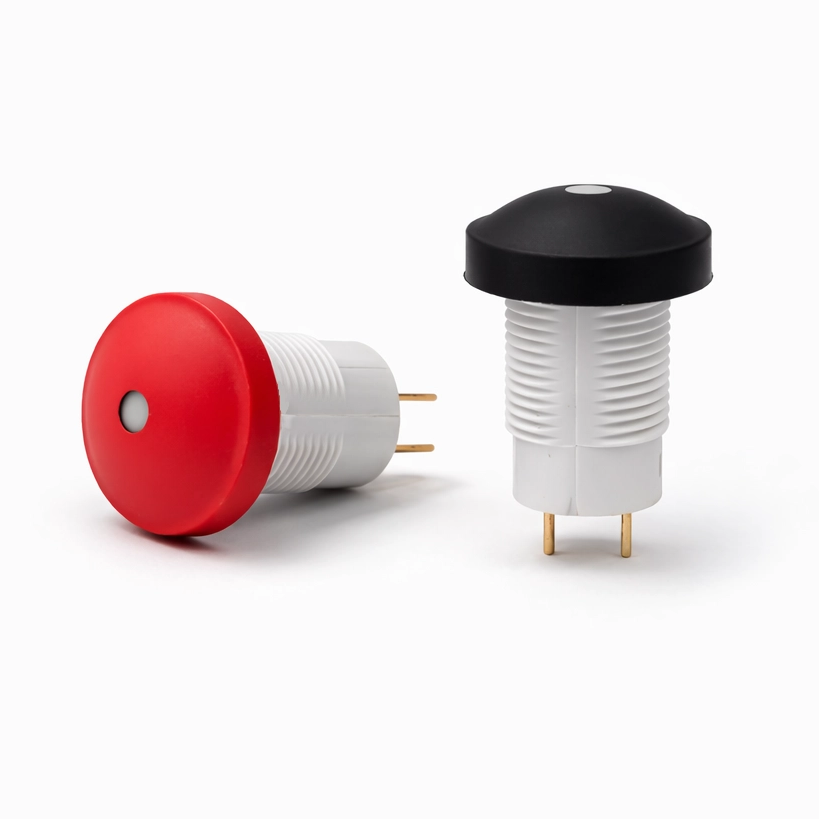

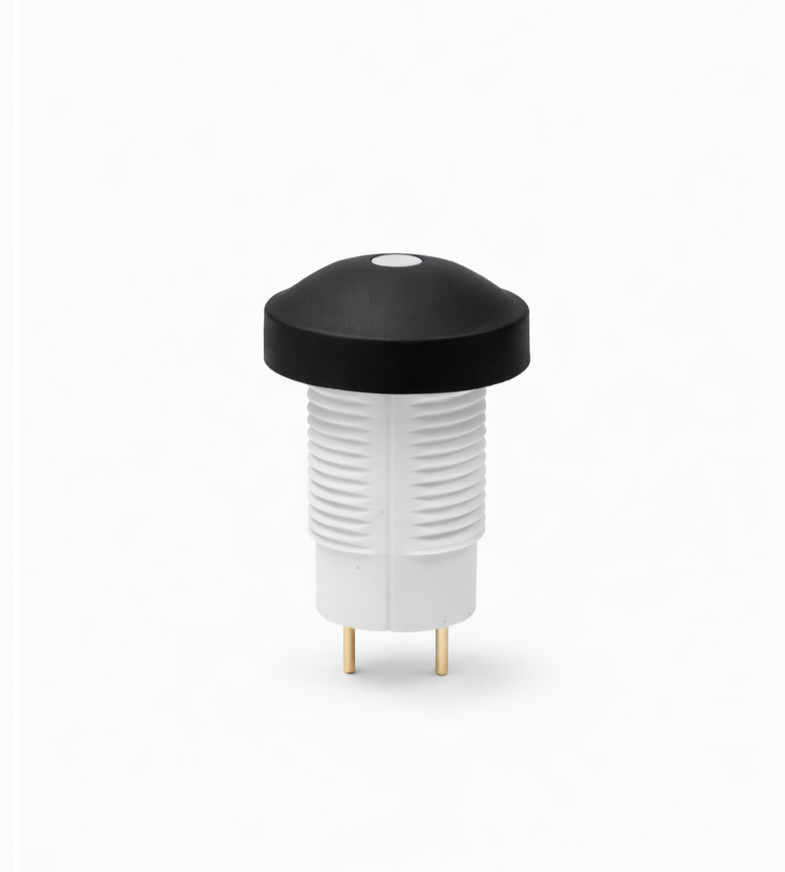

IPX Series Pushbutton Switches are illuminated snap-action/press-type pushbutton switches designed for reliable circuit control in demanding environments. Unlike membrane-based tactile switches, these are robust mechanical pushbutton switches with integrated illmination, combining long operational life, waterproof protection, and space-saving construction. They support momentary(push-to-make) action with customizable LED indicators, delivering stable performance for space-constrained and harsh-condition applications while meeting global environmental compliance standards.
Key Features
Illuminated Multi-Mode Operation: Momentary pushbutton functionality withe selectable LED colors( red, green, blue, white,etc.) for clear visual status indication.
IP67 Waterproof Protectoin: IP67 rated sealed construction, ensuring stable and reliable perform in wet, humid, or harsh environmental conditions.
Compact & Space-Efficient: Miniaturized footprint reduces rear panel orrupancy, ideal for high-density mounting and space-limited equipment designs.
Superior Mechanical & Electrical Life: Extended mechanical and electrical lifespans support long-term, high-frequency use without performance degradation.
Global Environmental Compliance: Fully RoHS compliant, free of hazardous substances, safe for users and eco-friendly for worldwide market deployment.
Applications
Industrial control panels & machinery
Medical deviced & diagnostic instruments
Test & measurement instruments
Outdoor & harsh-environment electronic equipment
High-density mounting & space-constrained devices
