Technical Parameters
| Specification | |
| MAX.CURRENT/VOLTAGE RATING WITH RESISTIVE LOAD: | 400mA 32VAC - 200 mA 50VDC - 125 mA 125VAC |
| INITIAL CONTACT RESISTANCE: | 50mΩmax |
| INSULATION RESISTANCE: | 1GΩmin.at 500VDC |
| DIELECTRIC STRENGTH: | 1,50O VAC rms.(initial value) |
| ELECTRICAL LIFE AT FULL LOAD: | 500,O00 cycles |
| OPERATING TEMPERATURE: | -30°C to 85°C |
| TOTAL TRAVEL: | 1.5mm(.059) |
| OPERATING FORCE: | 3N~6N |
| CONTACT BOONCE: | 10ms |
| MECHANICAL LIFE: | 1.000.000 cycles |
| TORQOE: | 0.5Nm max |
| INGRESS PROTECTION: | IP68(In house test) |
| Materials | |
| Cap: | Polyamide 6/6. |
| Plunger: | PFS6 model: PC. / PFS7 model: Polyamide 6/6. |
| Rubber: | Silicone |
| Case: | Diallyl phthalate (DAP) (UL 94 V-0). |
| Terminal: | Copper or brass, gold over silver plated. |
| Contact: | Brass, gold over silver plated. |
| Bushing: | Polyamide 6/6. |
Product Description：

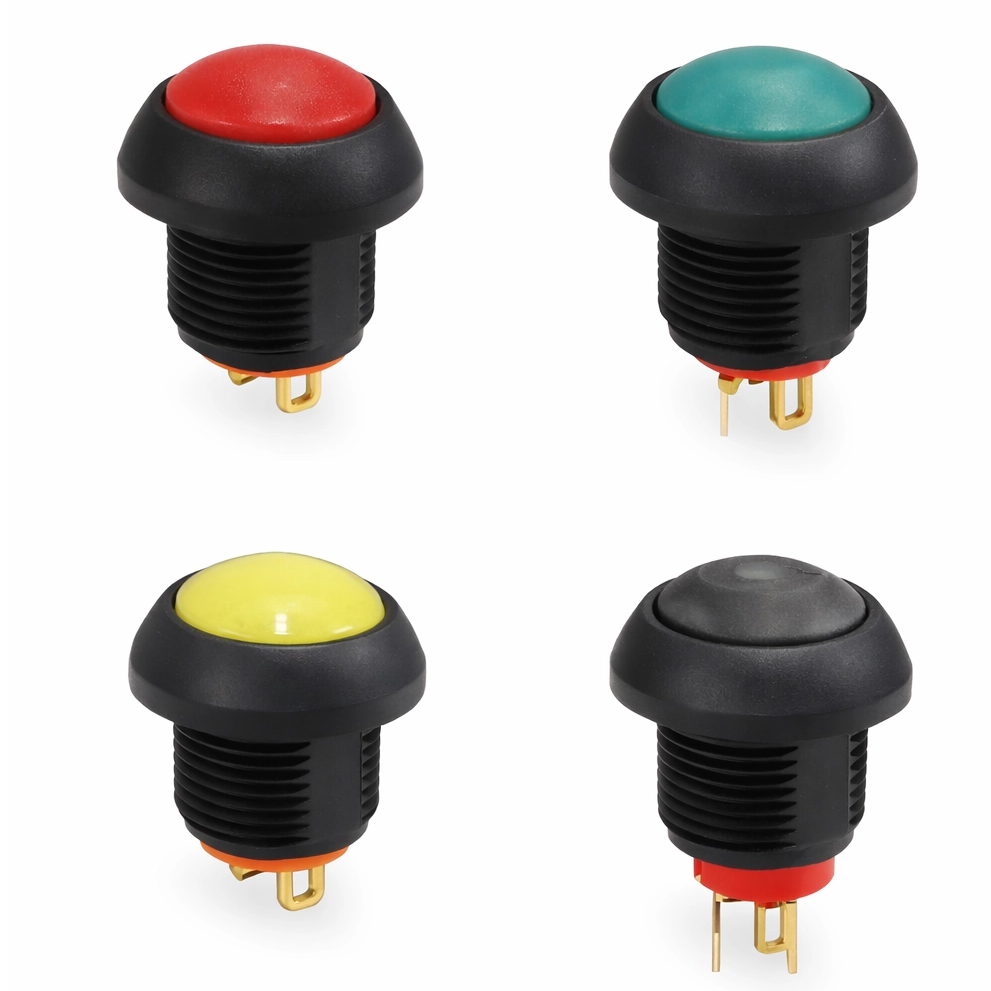

The PF miniature illuminated pushbutton switch incorporates a positioning design that gives the cap a more directional feel. The LED dot light transmission features a diameter of 3.0 mm, increasing the illuminated area. Additionally, the PF miniature illuminated pushbutton switch is available with a cable option, better meeting user needs.
Product Advantages：
1. Has SPST functionality.
2. Offers a choice between round and flat-top buttons, with a wide variety of styles.
3. Uses a plastic casing, sealed to meet IP68 waterproof standards.
4. Complies with RoHS certification and uses halogen-free materials.
Applications：
• Lighting fixtures and illumination.
• Computer peripherals.
• Communication equipment.
• Medical devices.
• Industrial control instruments.
• Marine equipment.
