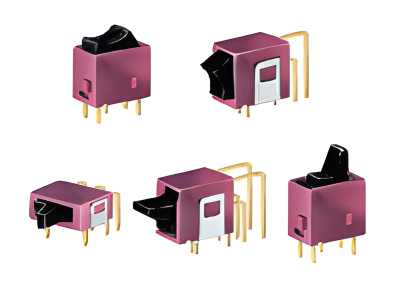

Product Type: Ultra-compact Waterproof Rocker Switch
Specifications
Power: 0.4 VA max. @ 20 V AC or DC max.
Mechanical Life: 50,000 make-and-break cycles.
Contact Resistance: 100 mΩ typ. initial @ 2–4 VDC, 100 mA.
Insulation Resistance: 500 MΩ at 500 V DC.
Dielectric Strength: 500 V RMS min. @ sea level.
Operating Temperature Range: -30°C to 85°C.
Materials Used
Housing & Copper Terminal: Glass-filled nylon 6/6, flame-retardant, heat-stabilized (UL94V-0).
Toggle lever: Nylon, black (standard).
Support bracket: Brass or steel, tin-plated.
Contact/Terminal: Silver- or gold-plated copper alloy.
