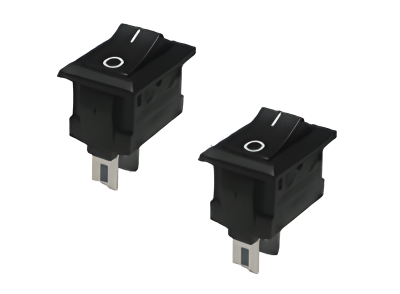

10*15mm Rocker

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Product Advantage

1. Multiple color options for the cover/base: black, red, etc.

2. The printing type on the cover can also be customized as needed for use in different scenarios.

3. For the base type, you can choose whether to have partitions or not.

4. 10*15mm, compliant with UL, CQC, and other certifications.


Technical Parameters

Specification IF Series
Contact Rating 10A 125/250VAC(UL;CUL)
21A 125/250VAC(UL;CUL)
16A 250V-T125/55(ENEC17)
Mechanica Life 10,000 make – and – break cycles
Endurance 10,,000 cycles
Insulation Resistance 100MΩ Min 500VDC
Operaion force 800±200gf/400±200gf
Storage temperature -30 to +80℃ Max
Terminal base PA66
Actuator PA66/PC
Spring Stainless steel wire
Contact Copper pickling
Terminal Brass/silverplated


Product Uses

Audio amplifiers, industrial control cabinets, testing instruments, HVAC systems, medical devices, automotive control for windows, windshield wipers, etc.
