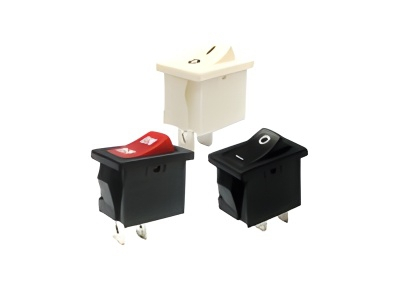

Product Type: Miniature Rocker Switch
Specifications:
Electrical Ratings: 2A 125V AC / 250V AC (UL, VDE)
6A 250V AC (standard) (UL, VDE)
15A 125V AC & 8A 250V AC (UL)
Mechanical Life: Over 30,000 cycles
Electrical Life: Over 10,000 cycles
Contact Resistance: <20 mΩ
Insulation Resistance: >1000 MΩ
Withstand Voltage: >1500 VAC for 1 min
Ambient Temperature: Terminal side -20 to +85°C
Actuating side: -20 to +55°C
Relative Humidity: Max. 85%
Operating Force: 3 to 6 N (depending on switch function)
Flame Retardancy: UL94V-2 & UL94V-0
Storage Temperature: -30 to +80°C (Max)
Terminal Temperature Rise: Max 30°C (UL1054)
Soldering temperature: Max. 350°C for 3 seconds
Materials
Housing: PA66
Rocker arm: PA66 & PC
Contacts: Silver alloy
Terminals: Copper or brass (silver-plated), phosphor bronze
Springs: SWC
Movable arm: Copper (silver-plated)
Light source: LED
Bracket: PA66
