Rated: 120 VAC 5 A / 250 VAC 2 A

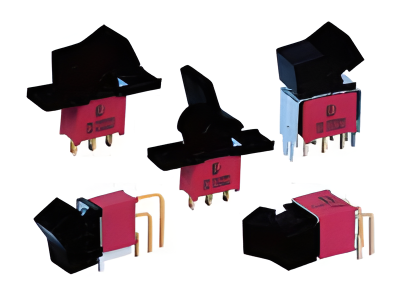

Product Category: Waterproof Rocker Switch
Waterproof Rocker Switch - 3 A Specifications
Contact Rating: Depends on contact material.
Mechanical Life: 30,000 make-and-break cycles.
Contact Resistance: 10 mΩ max. initial @ 2-4 VDC 100 mA for both silver and gold-plated contacts.
Insulation Resistance: 1,000 MΩ min.
Dielectric Strength: 1,000 V rms min. @ sea level.
Operating Temperature: -30°C to 85°C.
Waterproof Rocker Switch - 3A Materials
Housing and Sleeve: (UL94V-0). Glass-filled nylon 6/6, flame-retardant, heat-stabilized
Actuator: Nylon, black standard. Internal O-ring seal standard with all actuators.
Frame: Spring steel, black standard
Contact parts: Brass or steel, tin-plated.
Mounting bracket: Nylon
Contact points/terminals: Silver or gold-plated copper alloy.
