Technical Parameters
| Specification | IF Series |
| Contact Rating | 5 Amps with resistant load @ 120VAC or 28VDC 2 Amps with resistant load @ 250VAC 0.4 Volt - Amps ( VA ) max. @ 20V max. ( AC or DC ) |
| Mechanica Life | 40,000 make-and-break cycles. |
| Contact Resistance | 10 mΩmax. (initial value) @ 2-4VDC 100mA for both silver and gold plated contacts. |
| Insulation Resistance | 1000MΩmin. /500 VDC |
| Dielectric Strength | 1000V rms min@sea level.（initial value） |
| Operating Temperature | -40℃ to 85℃ |
| Materials | |
| CASE: | Diallyl phthalate (DAP) (UL94v-0). |
| Actuator | Nylon, black std. |
| BUSHING: | Brass or zinc, nickel plated. |
| HOUSING: | Stainless steel. |
| SWITCH SUPPORT: | Brass, tin plated or stainless steel. |
| TERMINAL/CONTACT: | Copper with silver or gold plated. |
Product Description

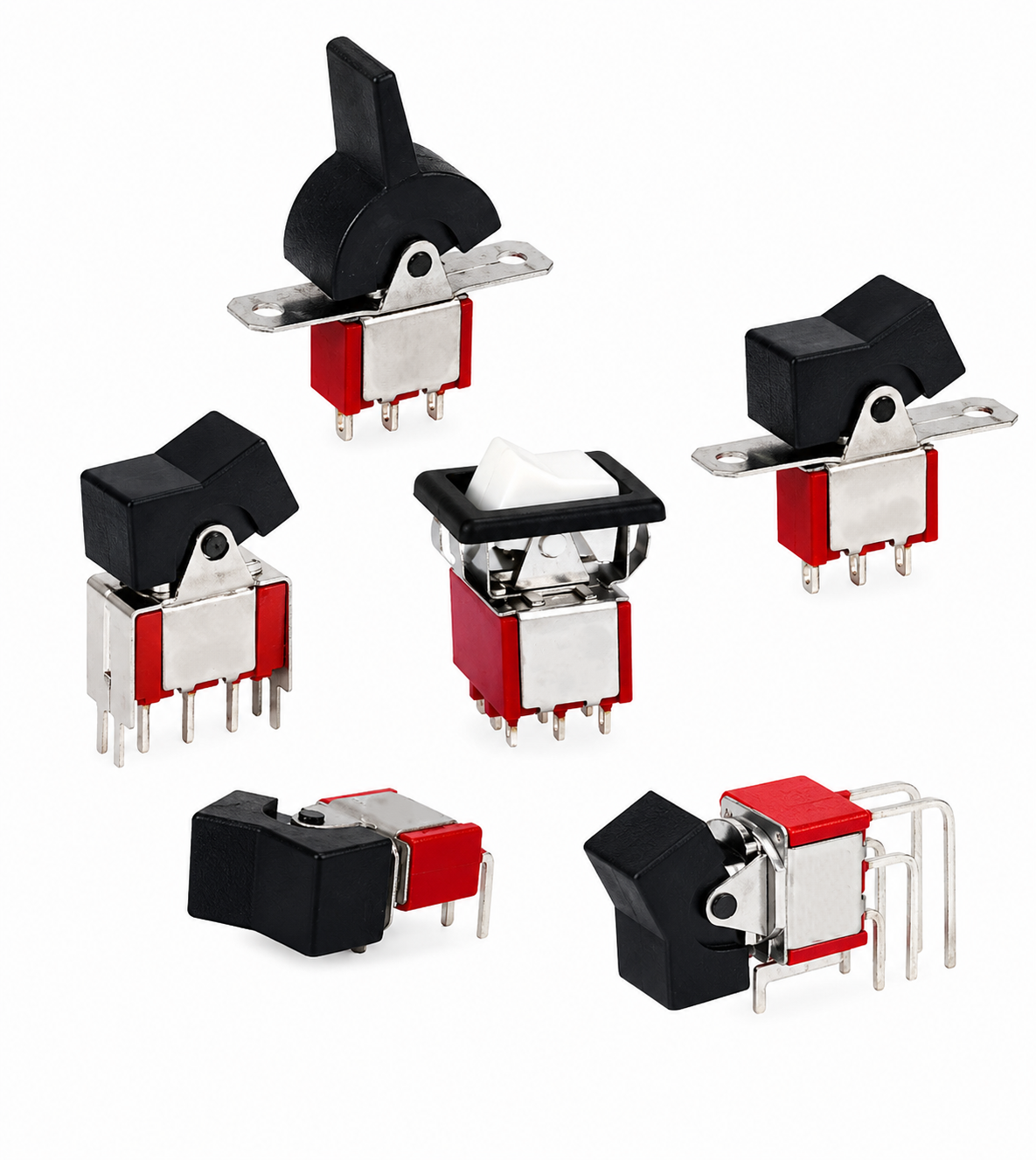

The 3M series of miniature toggle switches offers a variety of functions and top cover options. With a maximum rating of 5A, this series includes SPDT, DPDT, 3PDT, and 4PDT configurations, and offers a selection of terminal pin options.
Product Advantage
Multi‑circuit configurations: Available in SPDT, DPDT, 3PDT, and 4PDT options to meet diverse control requirements in complex circuit systems.
High‑quality terminal materials: Choose from gold‑plated, silver‑plated, or gold‑silver‑plated finishes for excellent conductivity and corrosion resistance, significantly extending product life and suitable for demanding applications.
Authorized certifications & environmental compliance: UL safety certified and fully RoHS compliant, ensuring superior performance while meeting global safety and sustainability standards.

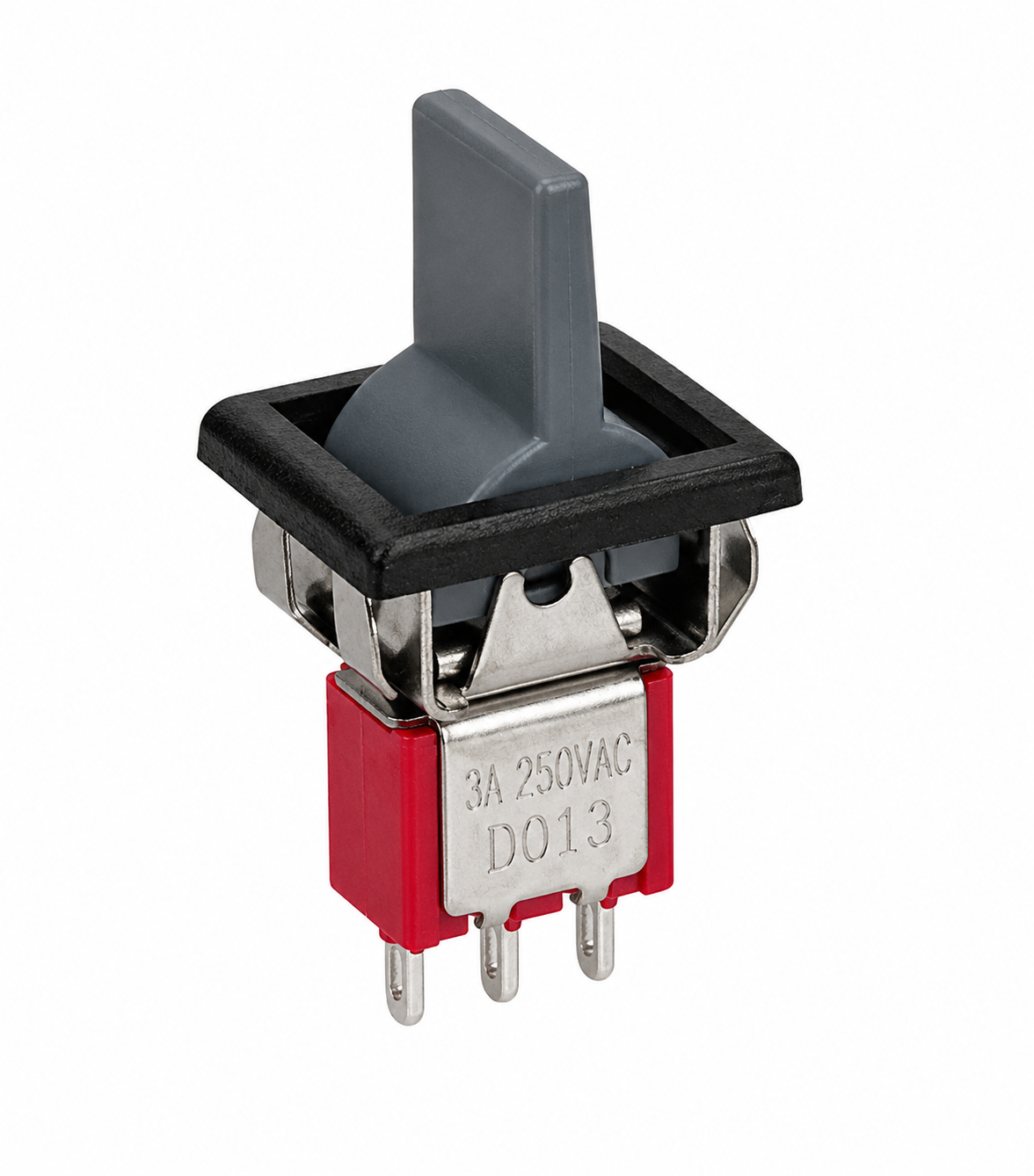

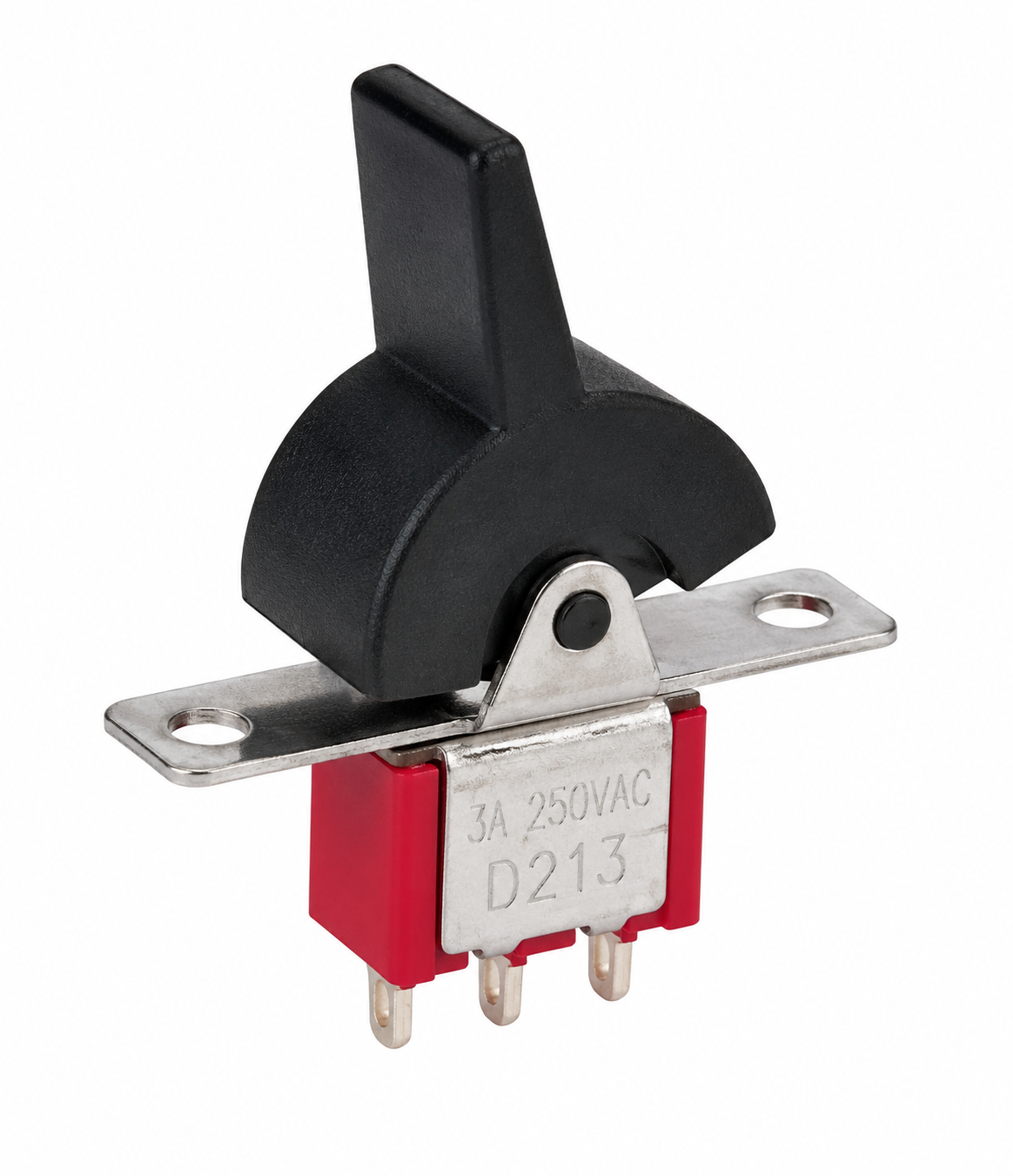

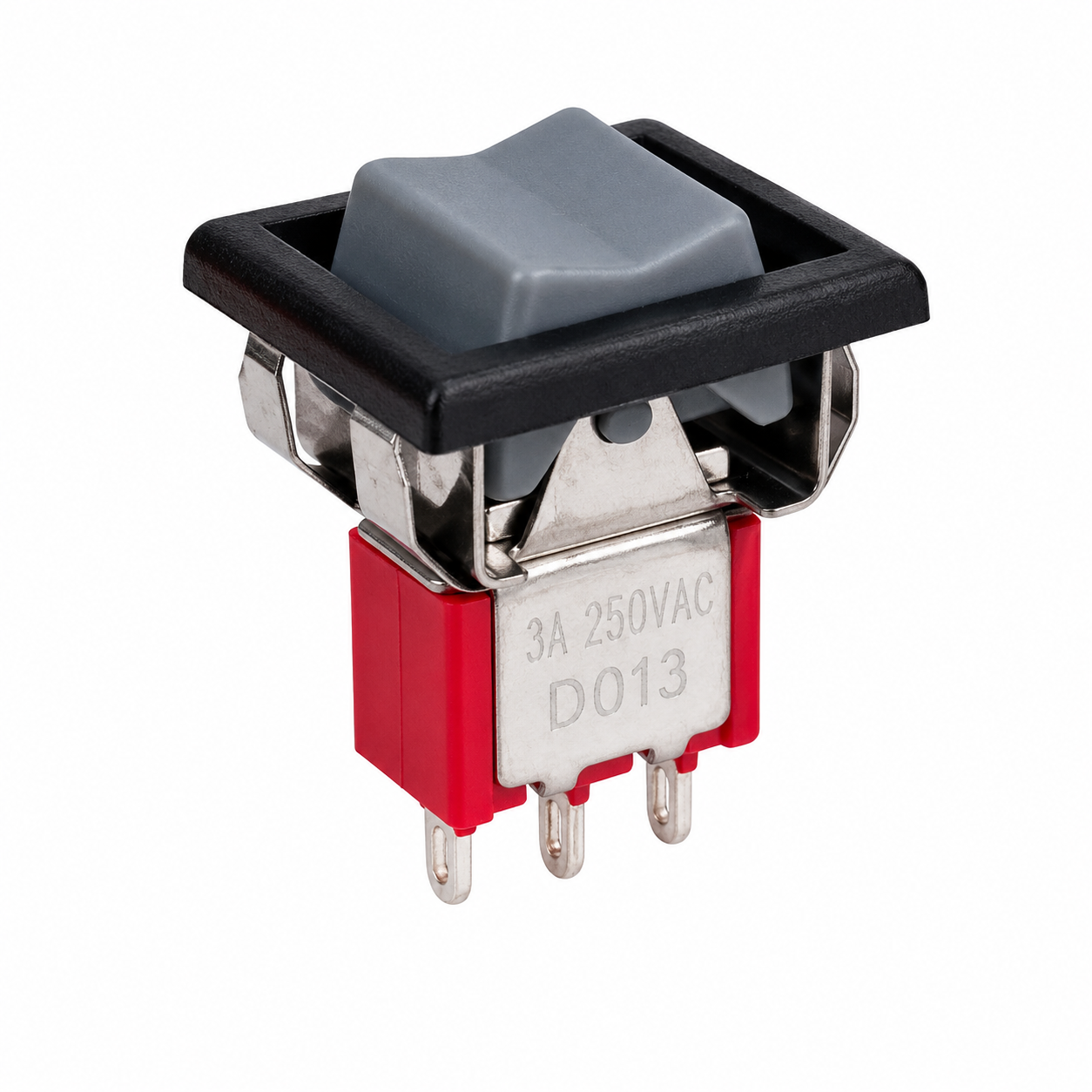

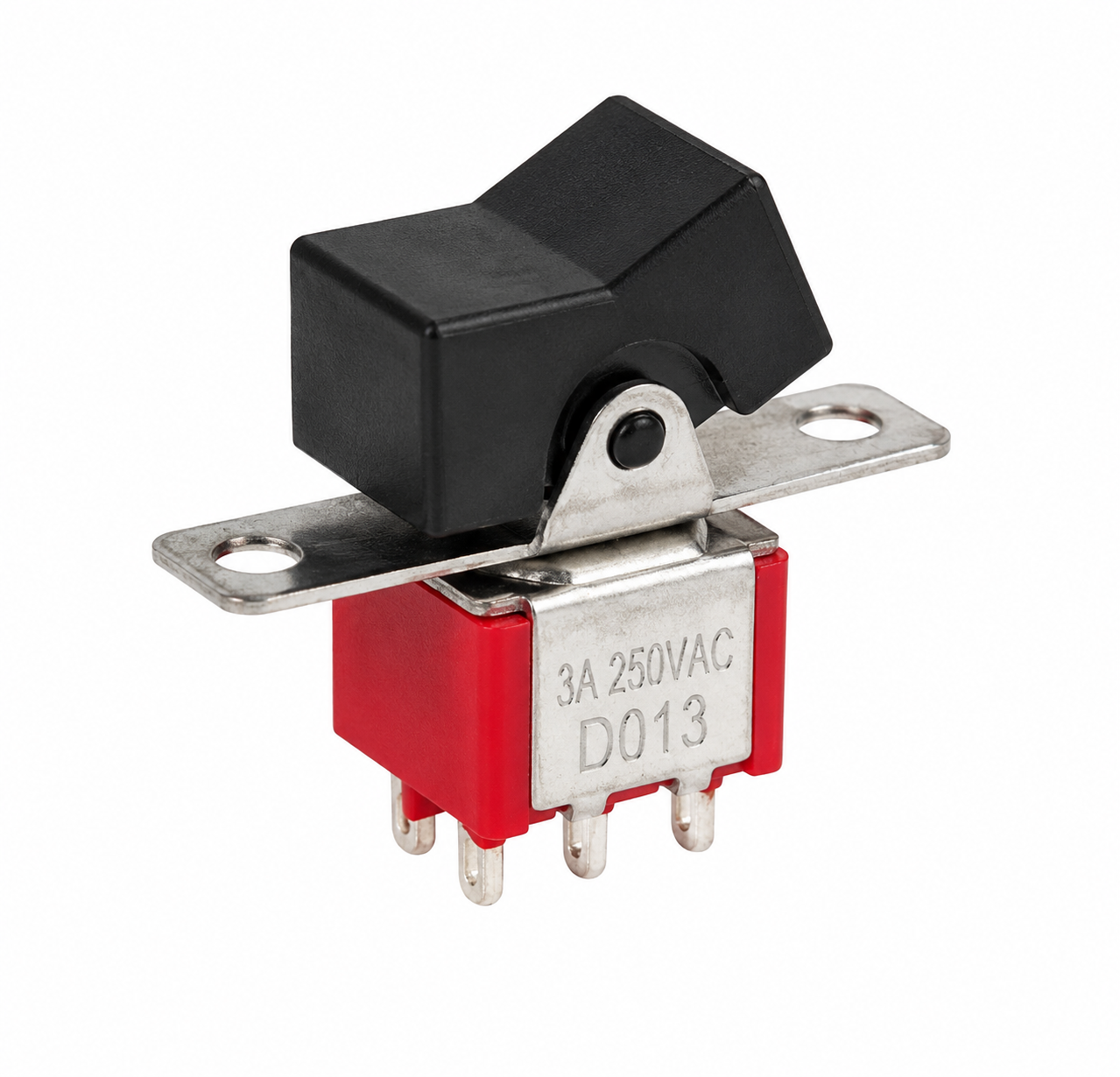

Versatile customization options: Various cap types (standard, dust‑proof, waterproof) and marking choices (numbers, letters, symbols) are available to fulfill specific industry and application needs.
Customizable actuator colors: A wide range of handle colors—including white, red, green, blue, yellow, orange, and gray—enhances visual identification and integrates seamlessly with equipment design for improved aesthetics and user experience.
Applications
Telecommunications.
Instruments and testing equipment.
Medical equipment.
