Technical Parameters
| Specification |
| Rating | 3 Amps with resistant load @ 120VAC or 28VDC 1 Amps with resistant load @ 250VAC 0.4 Volt - Amps ( VA ) max. @ 20V max. ( AC or DC ) |
| MECHANICAL LIFE: | 30,000 make-and-break cycles. |
| Contact Resistance | 20 mΩmax. (initial value) @ 2-4VDC 100mA for both silver and gold plated contacts. |
Dielectric Strength
| 1,000 Vrms min.@sea level. (initial value) |
| OPERATING TEMPERATURE: | -40C to 85°C. |
| Insulation Resistance | 1,000 M Ω min./1000VDC |
| Materials |
| CASE: | Diallyl phthalate (DAP) (UL94v-0). |
| Actuator | Nylon, black std. |
| BUSHING: | Brass or zinc, nickel plated. |
| SWITCH SUPPORT: | SUS or brass, tin plated. |
| TERMINAL/CONTACT: | Copper or brass with silver or gold plated. |
| HOUSING: | Stainless Steel. |
Product Description

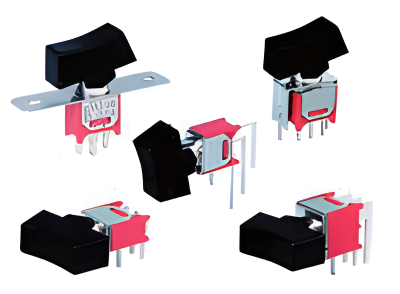

The 4M series of miniature toggle switches are rated for up to 3A and are available in SPDT and DPDT configurations.
Key Features
High current rating: Rated up to 3A, offering strong load capacity for a miniature toggle switch, suitable for more demanding circuits.
Flexible configurations: Available in SPDT and DPDT versions, meeting both simple on/off or changeover needs, as well as complex applications requiring simultaneous control of two independent circuits (such as dual-motor reversing).
Applications
Telecommunications.
Instruments and testing equipment.
Medical equipment.
