Technical Parameters
| Specification | |
| Contact Configuration: | SP5T (5-key Common bus) |
| Rated Voltage/Current: | 50mA @ 12V DC max. |
| Switch Terminal Type: | Connector |
| Operating Force: | Center 650gf±200gf, outside 250gf±100gf |
| Mechanical Life: | 50,000 cycles min. |
| Waterproof Level: | IP65 |
| Light Transmission: | circular illuminative |
| Material | |
| Cover/Lens: | Cap 1&2: PA(Polyamide), Cap3: PC(Polycarbonate) |
| Actuator: | Silicone |
| Base/Frame: | PC / SUS |
| Terminals: | Brass with plating |

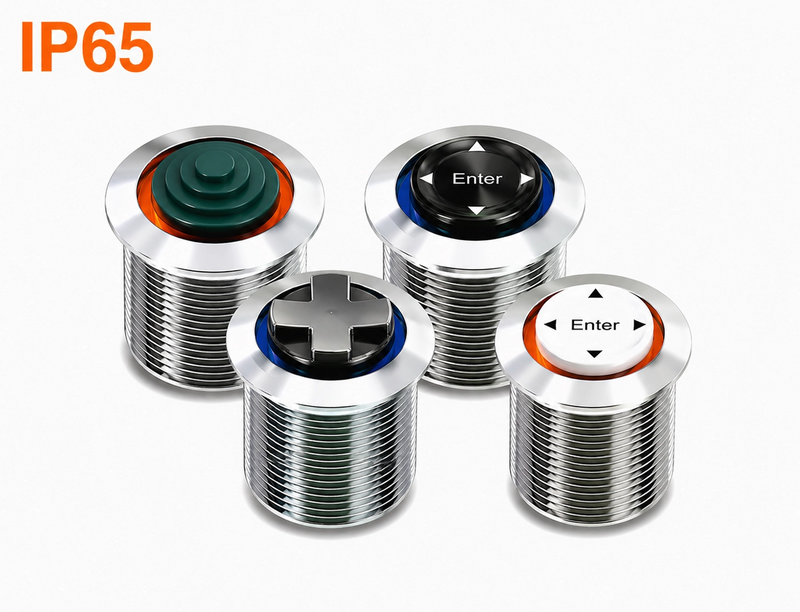

Product description

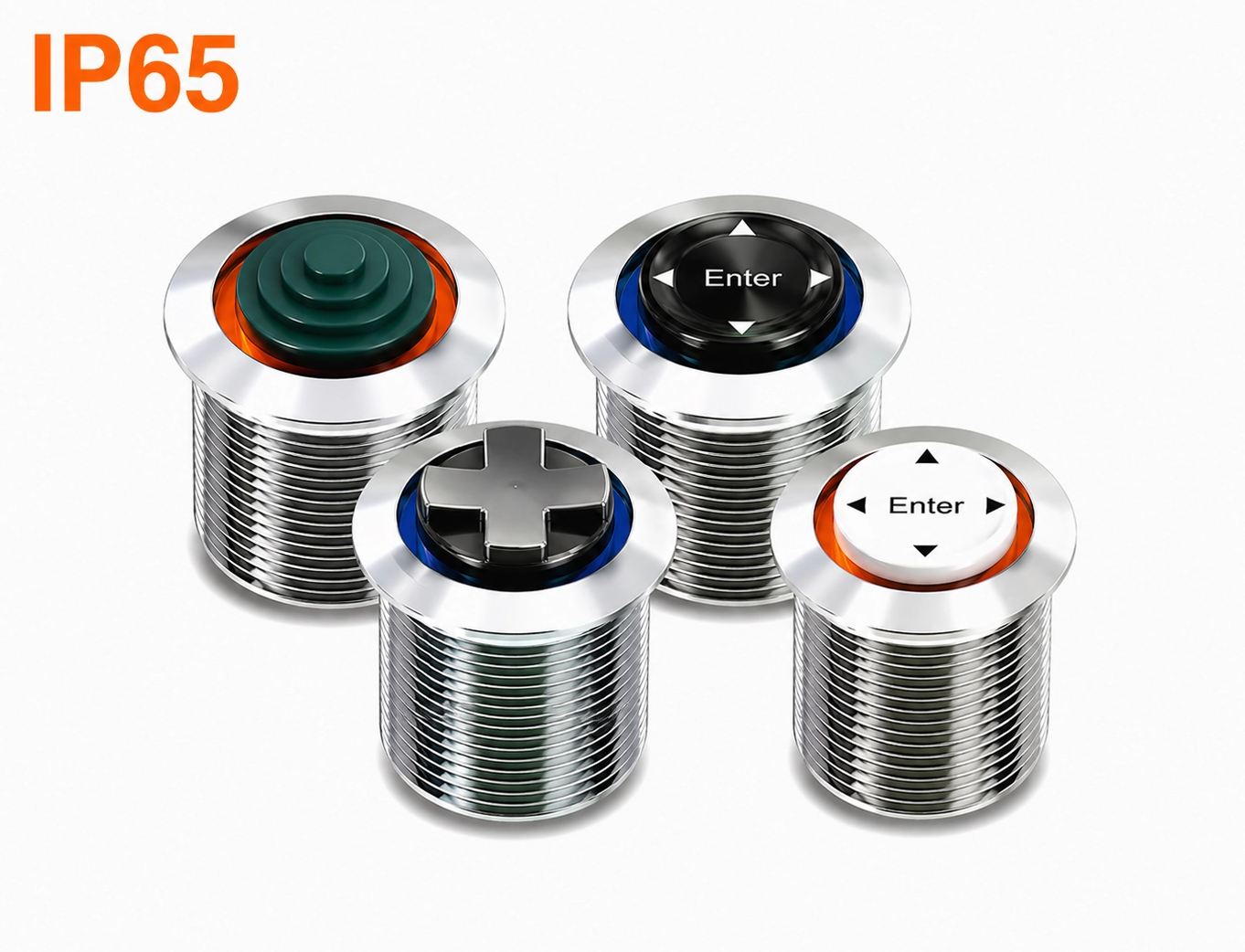

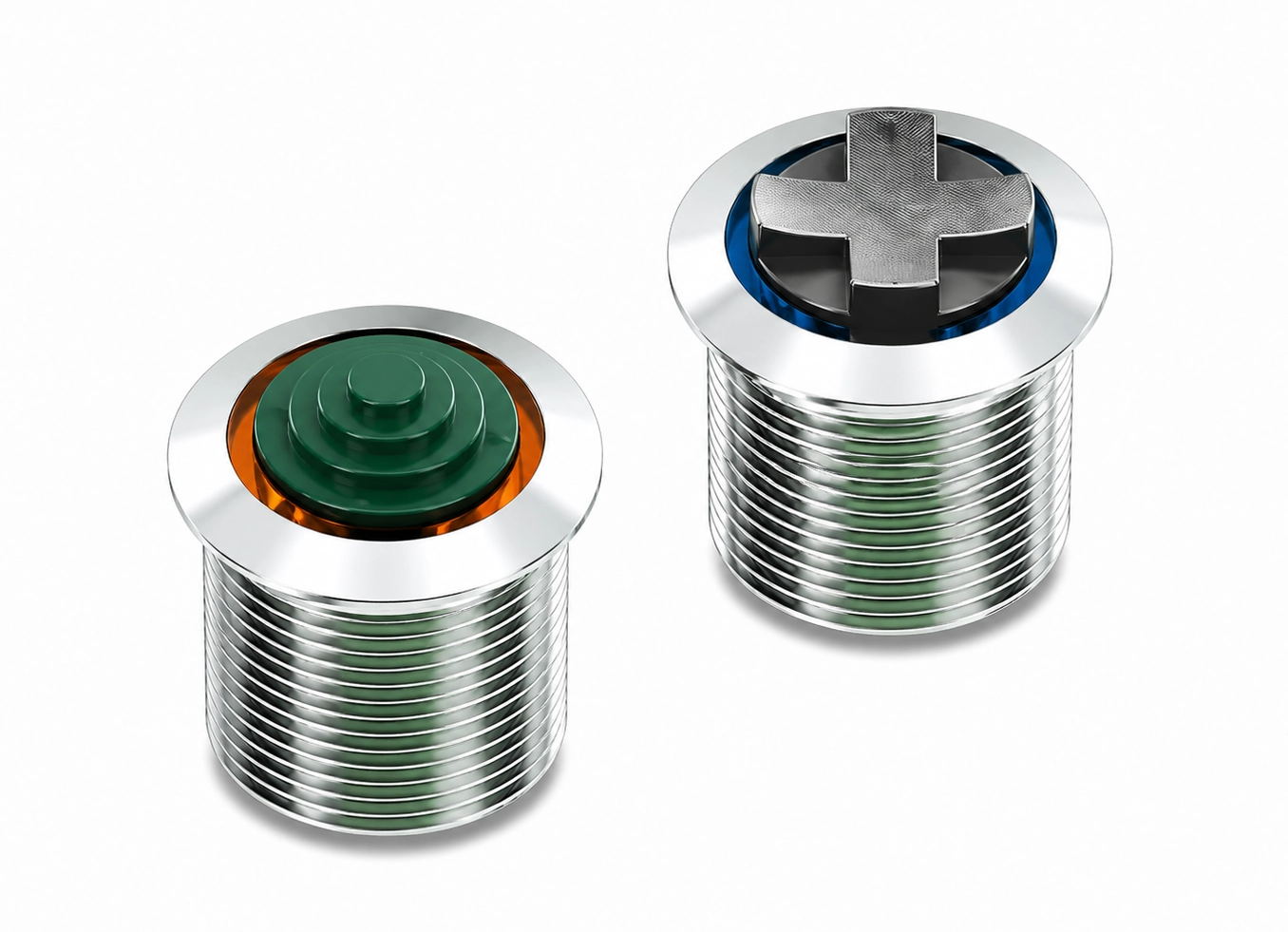

The SF19BA series switches support five-way operation (up, down, left, right, and center), enabling multi-directional input.
Product Advantage
Supports five-way navigation (up, down, left, right, and center) for multidimensional input.
The SP5T features a shared bus circuit design, reducing the number of contacts and simplifying circuit configuration.
The metal housing enhances durability, making it suitable for environments involving frequent, long-term operation.
It offers smooth operation and precise positioning, effectively improving menu navigation efficiency.
Application
menu navigation on control panels, device configuration, and human-machine interface (HMI) operations.
