Technical Parameters
| Specification |
| Contact Configuration: | SP5T (5-key Common bus) |
| Rated Voltage/Current: | 50mA@12VDC max |
| LED Rating： | 30mA@12VDC |
| Contact Resistance： | 300mΩ Max. |
| Insulation Resistance： | 100ΜΩ Min. |
| Operating Force: | Center Push 650±200gf 4-Direction 250±100gf |
| Mechanical Life: | 50,000 cycles Min. |
| Operating Temperature： | - 20°C~+70℃ |
| Material |
| Cap(Type 1,Type 2)： | Polyamide (PA) |
| Cap(Type 3)： | Polycarbonate (PC) |
| Reflector： | Silicone |
| Housing： | Polyamide (PA) |
Product description

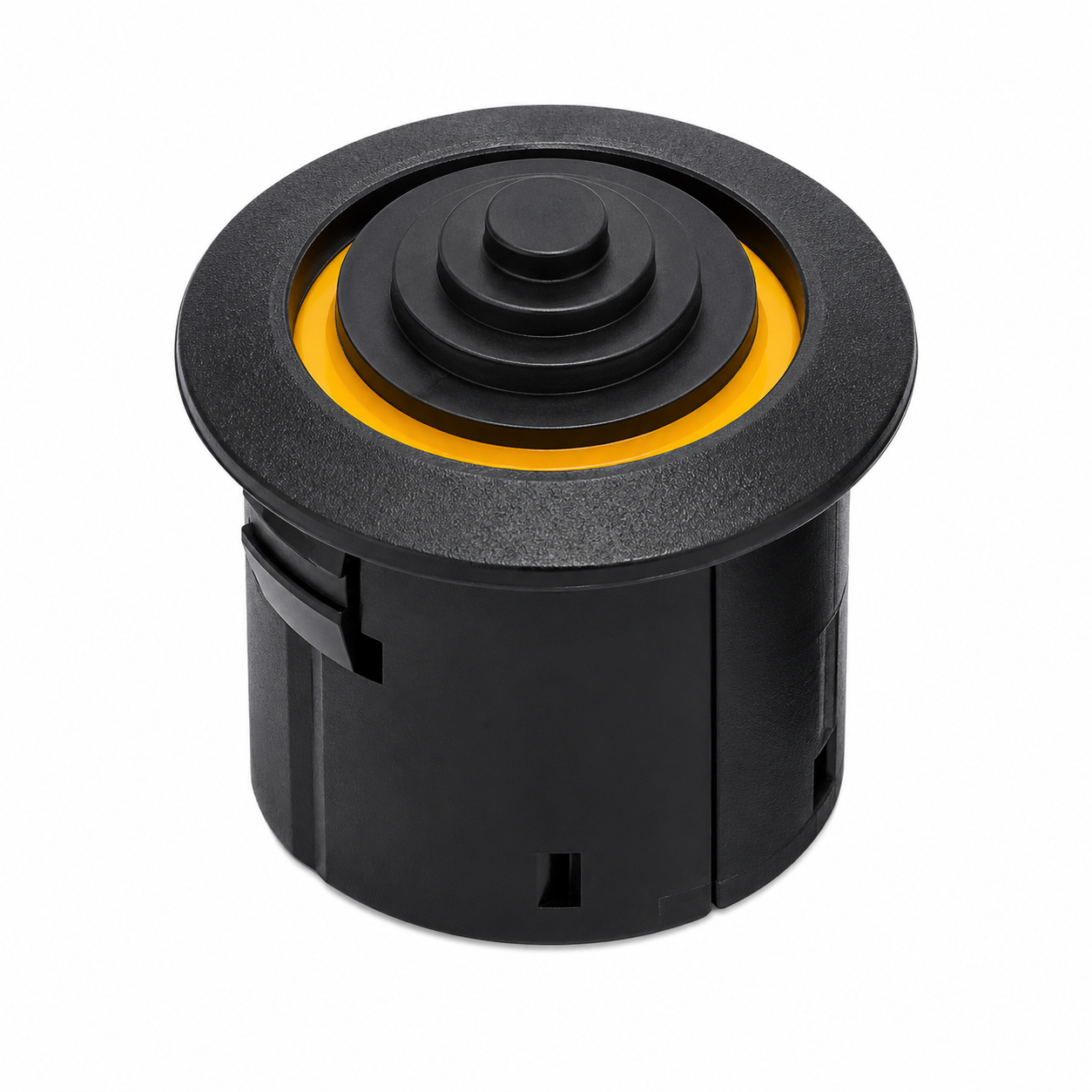

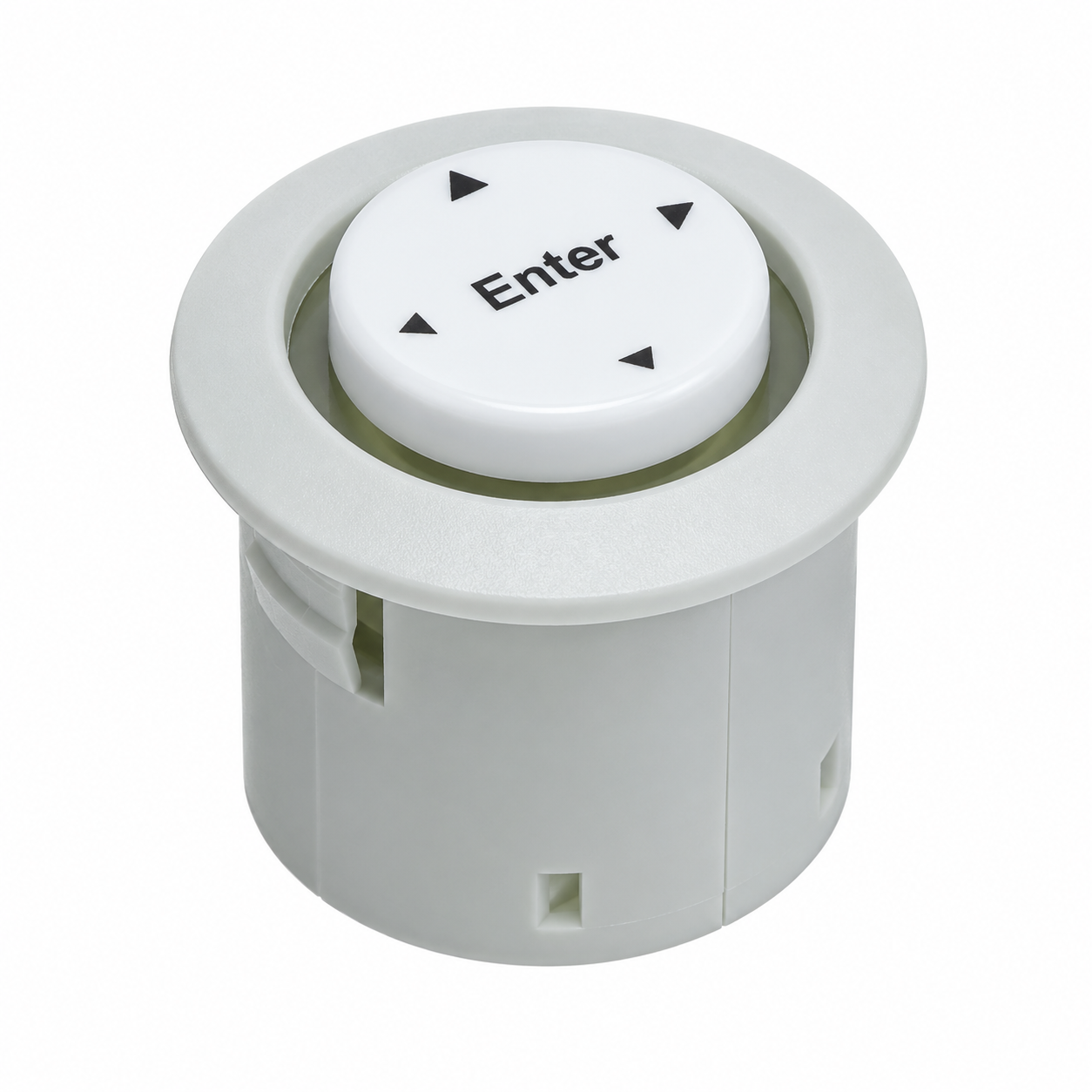

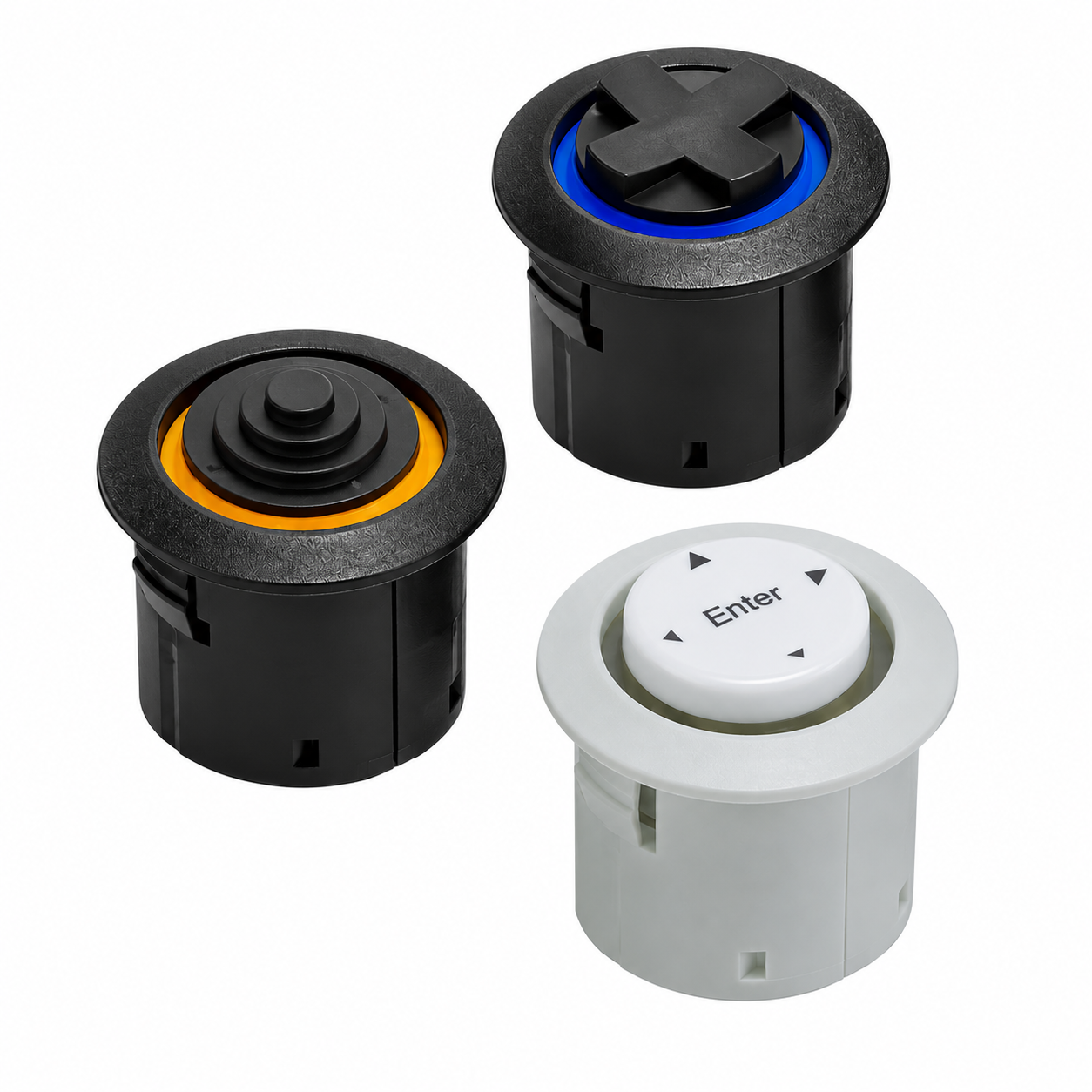

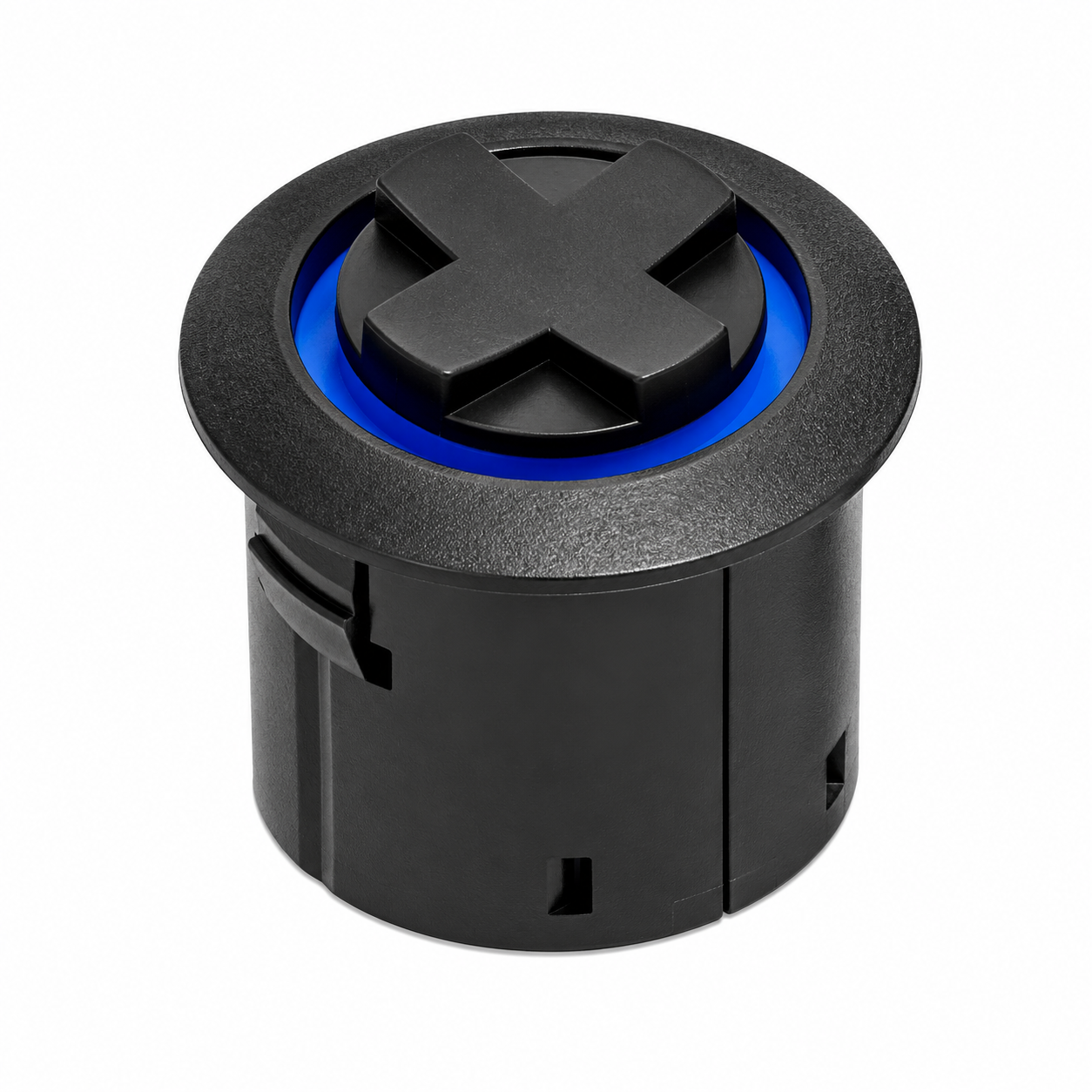

The SF19BA series switches support five-way operation (up, down, left, right, and center), enabling multi-directional input.
Product Feature：
Panel cutting Ø19mm
5 Key Navigation Switches
LED Illuminated
Easy to install
Product Uses
Used in control modules for industrial control systems, instrument panels, and drone remote controls.
