Technical Parameters
| Specification | |
| Contact Configuration: | SPST*3 Momentary |
| Rated Voltage/Current: | 50mA @ 12V DC |
| Switch Terminal Type: | Connector |
| Switch Travel: | 0.2mm ± 0.1mm |
| Operating Force: | 400gf (Max.) |
| Mechanical Life: | 1,000,000 cycles min. |
| Light Transmission: | Pervious to light |
| Material | |
| Cover/Lens: | PC (Polycarbonate) |
| Actuator: | POM (Polyoxymethylene) |
| Base/Frame: | PA (Polyamide) |
| Terminals: | Brass with gold plating |
Product description

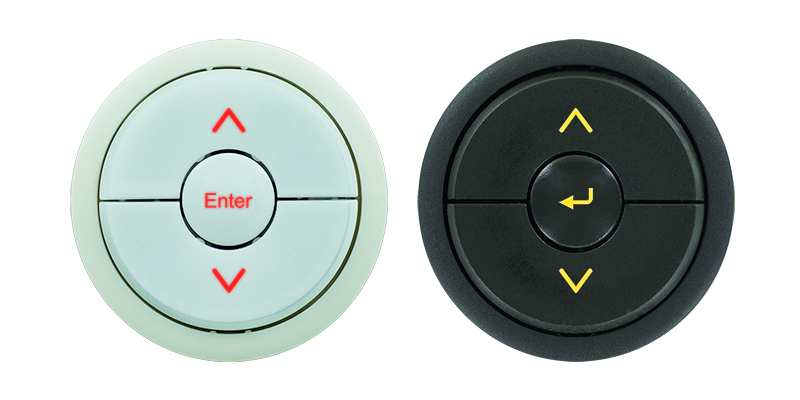

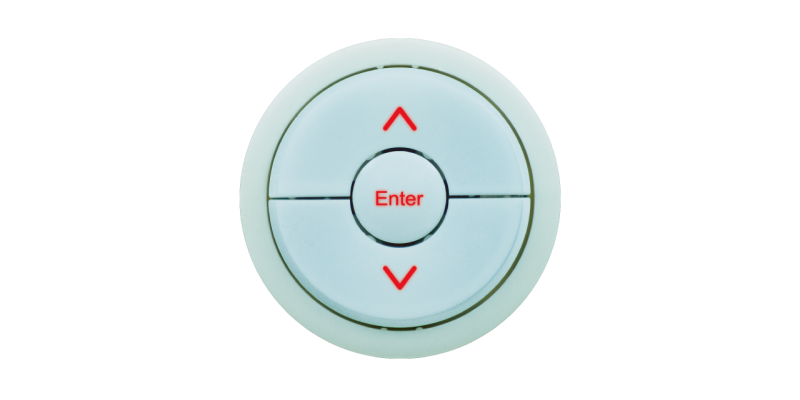

The SNA3 Series modular navigation switch features LED lighting, enhancing visibility, supporting low-light environments, and adding a modern interface design.
Product Advantage
Panel opening diameter 34mm modular design
Three-way navigation touch function
LED lighting
Provides customized graphic and text services
Product Uses
Industrial control, automation equipment
