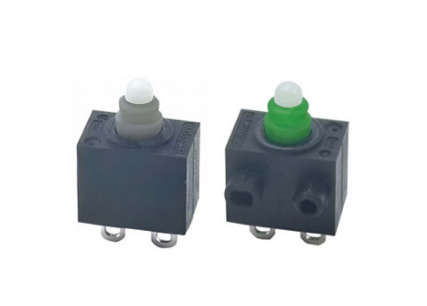

G309

Rated Load: 0.1A at 12VDC, 5mA at 10VDC

Operating Frequency: Electrical: 10–30 cycles/min, 1–500 mm/s; Mechanical: 120 cycles/min

Initial Contact Resistance: 100 mΩ Max.

Insulation resistance: 100 MΩ min.

Dielectric strength: Between terminals: AC 500 V

Between terminals and housing: AC 1000 V

Operating temperature range: -40°C to +85°C

Electrical life: 300,000 cycles

Applications: New energy vehicles, industrial control products, medical devices, etc.
