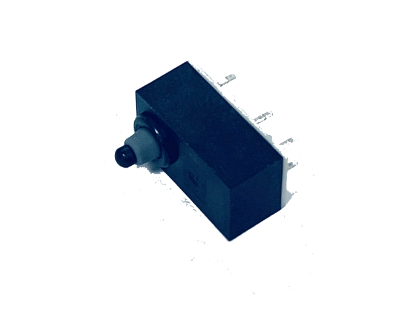

15.4*8.4*12.2mm

Electrical Life: 200,000 cycles

Insulation Resistance: ≥100 MΩ (DC 500 V / 1 min)

Withstand Voltage: AC 500 V / 60 s

Electrical Performance: Contact Resistance (Initial / End-of-Life) ≤75 mΩ max. / 200 mΩ max.

Actuation Force: 1.2 ± 0.5 N

Travel: 11.0 ± 0.295 mm

Stroke: RP 11.7 ± 0.34 mm

Maximum Rating: 50 mA at 18 V DC

Minimum Rating: 50 μA at 5 V DC

Operating Temperature: -40 to 85°C

Noise: ≤60 dB

Dual-Circuit Synchronization: ≤15 ms

Water Resistance: IP67 (excluding terminal block)

Terminal Type: Through-hole pins

Number of Terminals: 6
