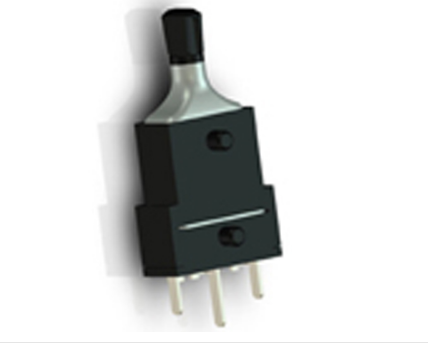

G16

Rated: 12 VDC, 100 mA

Operating frequency: Electrical: 20 cycles/minute

Mechanical: 30 cycles/minute

Initial contact resistance: <200 mΩ

Insulation resistance: >10 MΩ

Vibration resistance: 10–55 Hz, amplitude 1.5 mm

Shock resistance: Acceleration 98 m/s², duration 11 ms

Withstand voltage: Between terminals: 500 V DC at 100 MΩ

Between terminals and housing: 1000 V AC for 1 min

Lifespan: Electrical: 100,000 cycles

Mechanical: 100,000 cycles

Operating force: 200 gf MAX

Storage temperature: -40°C to 85°C

Storage humidity: 85% RH MAX

Weight: 1.6 g

Features:

Waterproof and dustproof (IP67) design, long service life, high reliability, compatible with various PCB terminals and solder terminals, available with mounting posts of Φ2.0 and Φ2.4,

Post spacing options include 9.5mm, 12mm, and 12.5mm, bidirectional conduction design, ultra-compact size, suitable for confined spaces.

Applications:

Automotive, industrial control
