Product Advantage

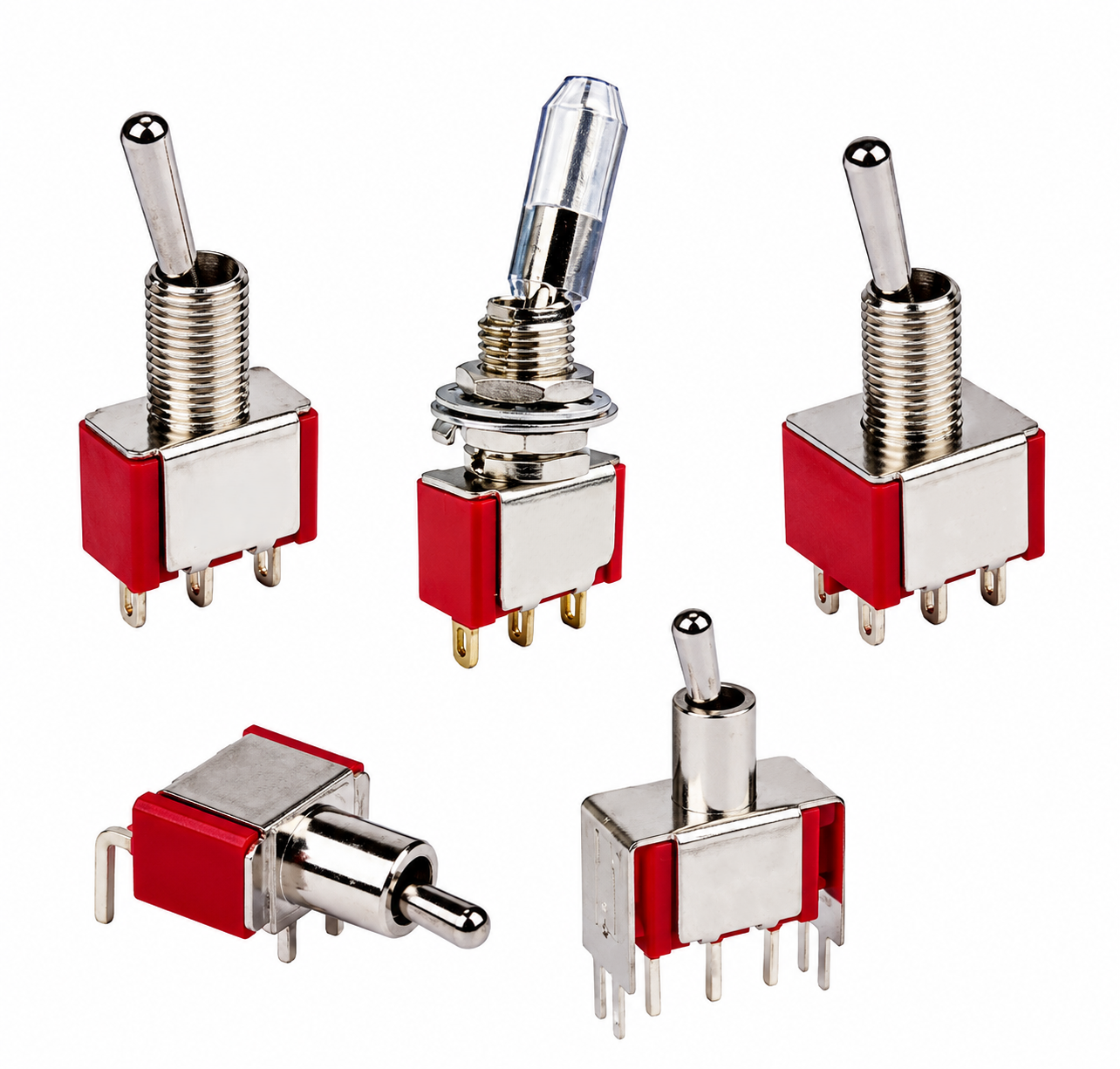

Wide terminal type selection: A broad range of terminal options accommodates diverse installation requirements, ensuring secure connections and excellent electrical performance across different circuit environments.

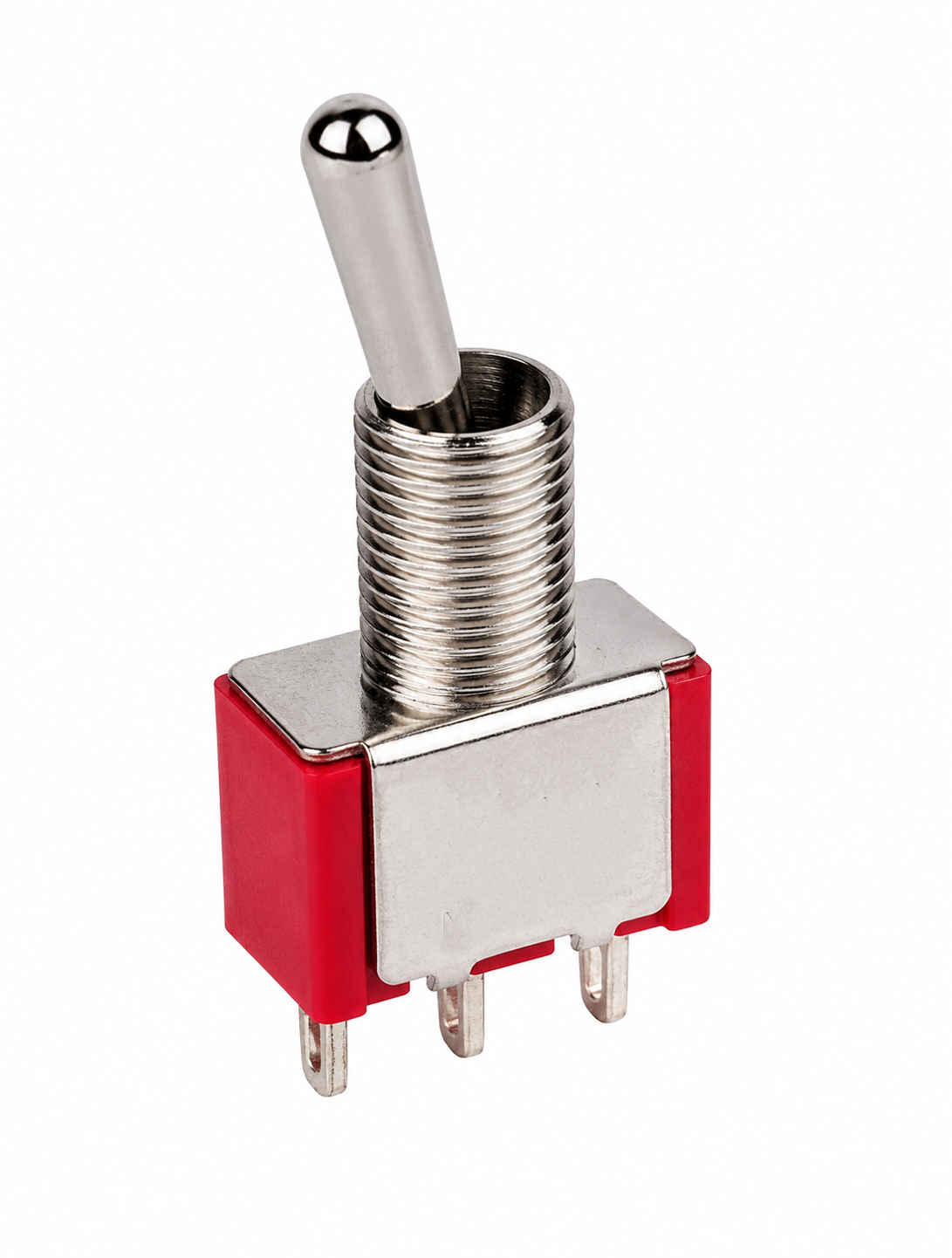

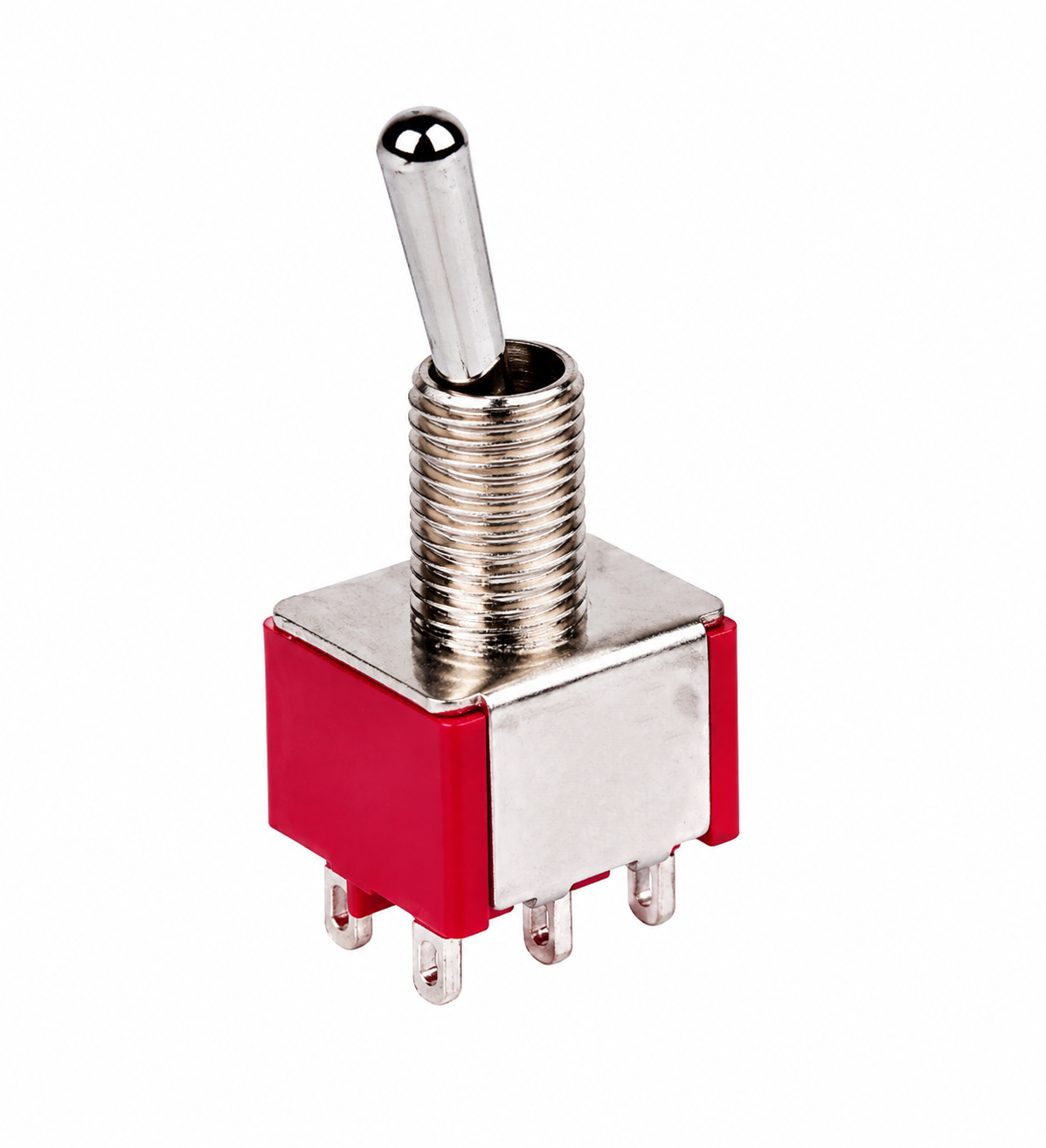

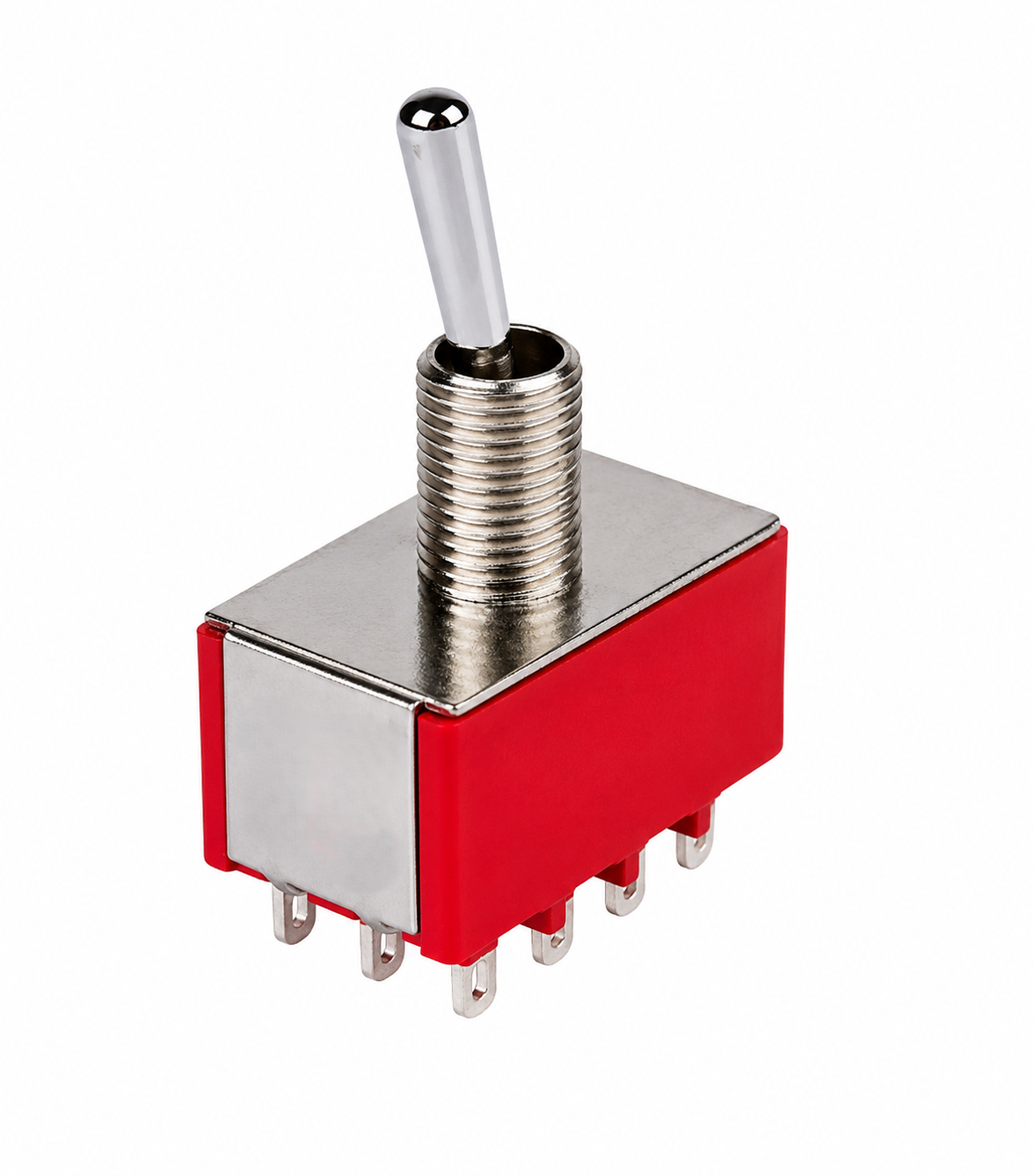

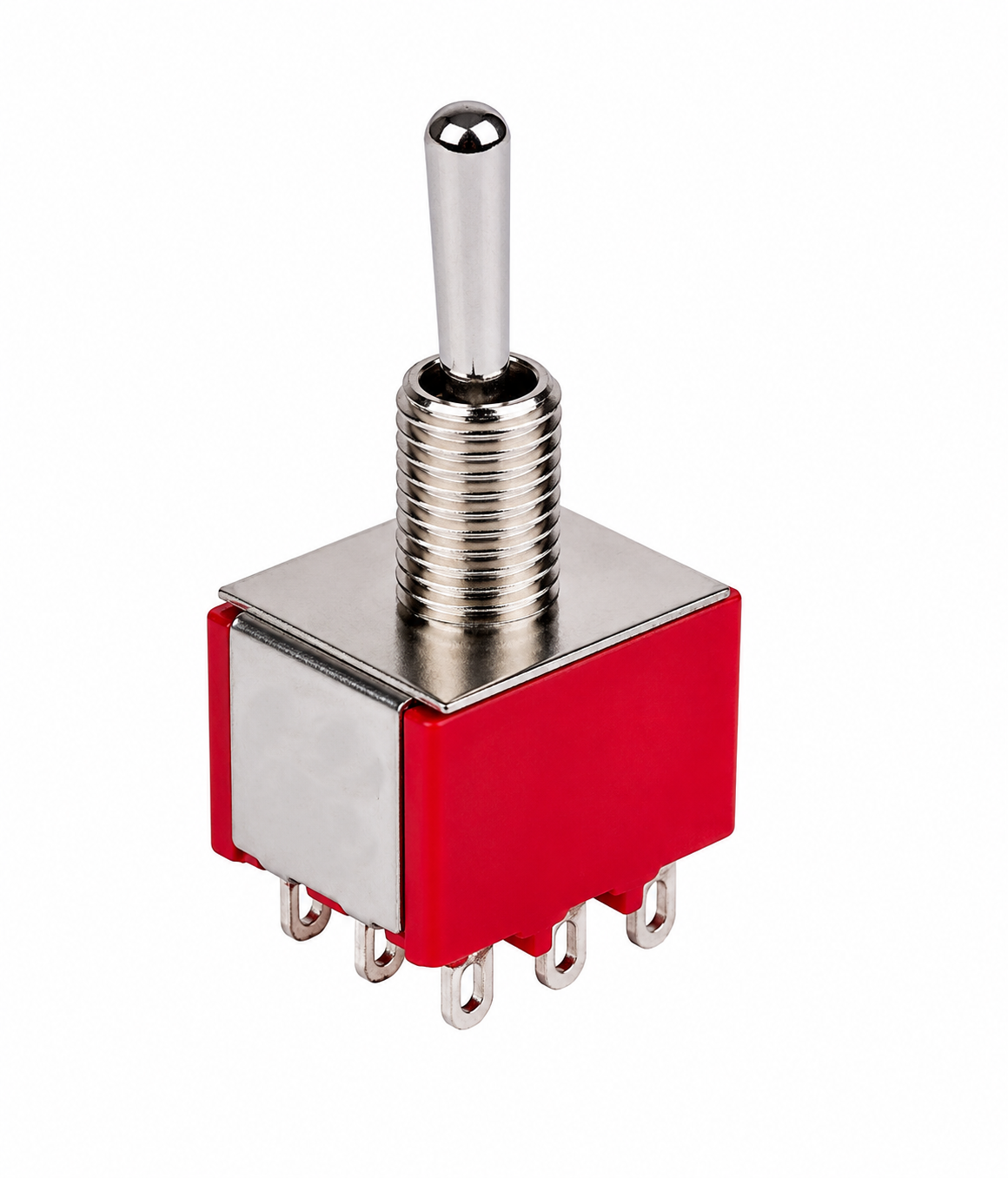

Comprehensive functional configurations: Supports multiple circuit configurations including SPDT, DPDT, 3PDT, and 4PDT, enabling flexible signal switching and reliable control for sophisticated multi-channel applications.
Personalized switch styles: Offers various toggle styles such as round and square handles, allowing selection based on equipment aesthetics and user preference, enhancing operational comfort, visual recognition, and overall user experience.
High-performance electrical parameters: Available in momentary or latching operation modes to meet varied control needs, with a maximum current rating of 5A, delivering stable performance and long-term durability even under high-load conditions.
Certified with expanded options: UL safety certification ensures proven safety and reliability; extended terminal types and handle lengths are also available for customization, providing comprehensive solutions tailored to specialized application scenarios.
Technical Parameters
| Specification | IF Series |
| Contact Rating | 5A/120VAC2A/250VAC |
| Mechanica Life | 40,000 make – and – break cycles |
| Contact Resistance | 10 mΩ max.Initial @ 2–4VDC,100 mA for both silver and gold plated contacts. |
| Insulation Resistance | 1,000MΩmin. at 1,000 VDC |
| Dielectric Strength | 1,000V rms min@sea level.（initial value） |
| Operating Temperature | ‘–40℃ to 85℃ |
Application:
On the panels of precision instruments, the control panels of equipment, or on networking products
