Technical Parameters
| Specification | IF Series |
| Contact Rating | 12A 125/250 VAC |
| Mechanica Life | 30,000 make-and-break cycles |
| Contact Resistance | 20mΩ max. |
| Insulation Resistance | 1,000MΩ min at 500VDC |
| Dielectric Strength | 1,500 Vrms min.@sea level.(initial value) |
| Operating Temperature | -30°C to 85°C |
| Materials | |
| CASE： | Diallyl phthalate (NYLON) (UL94v-0) |
| ACTUATOR: | Brass, chrome plated. |
| BUSHING: | Zin+Silicon. |
| TERMINAL/CONTACT: | Copper |

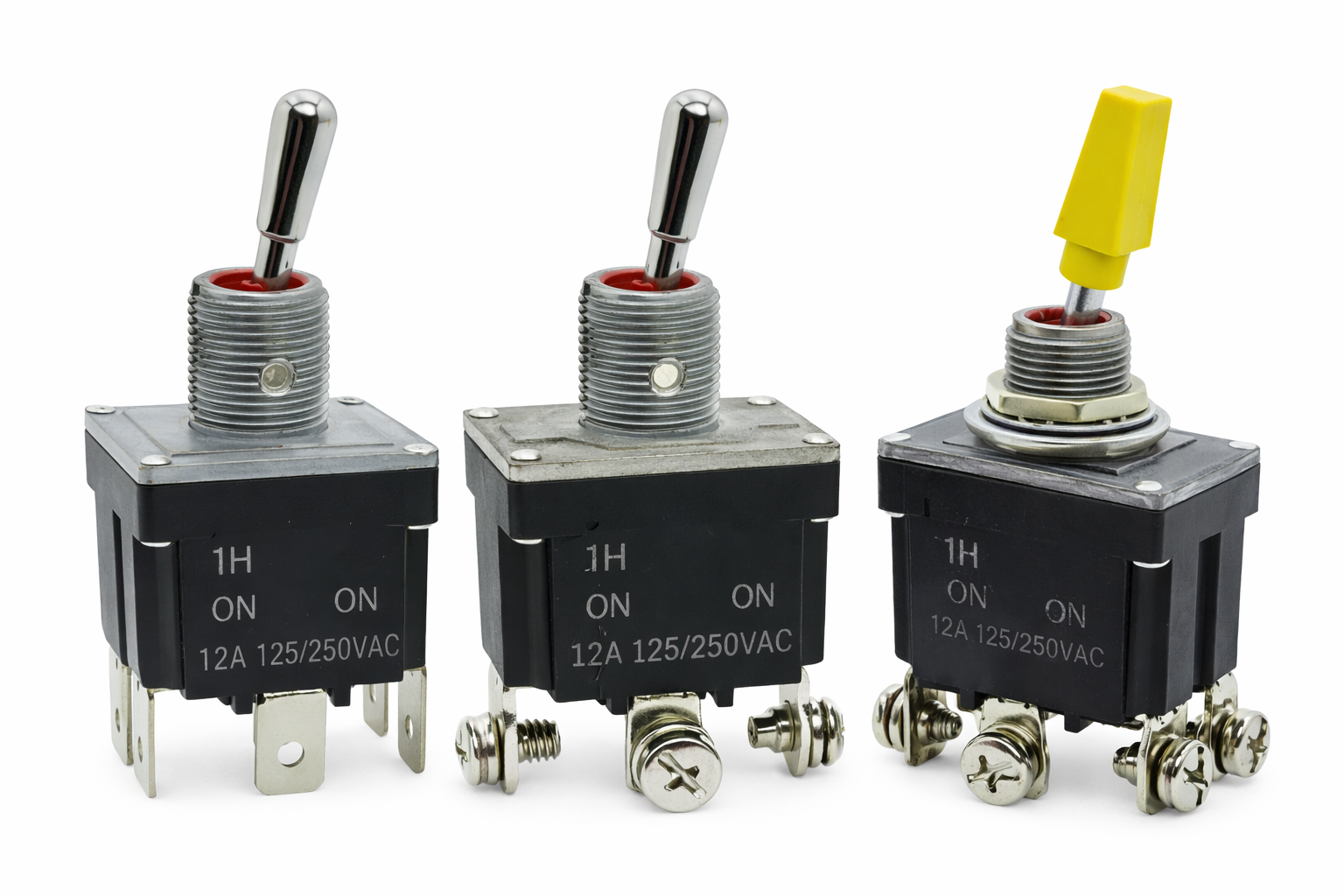

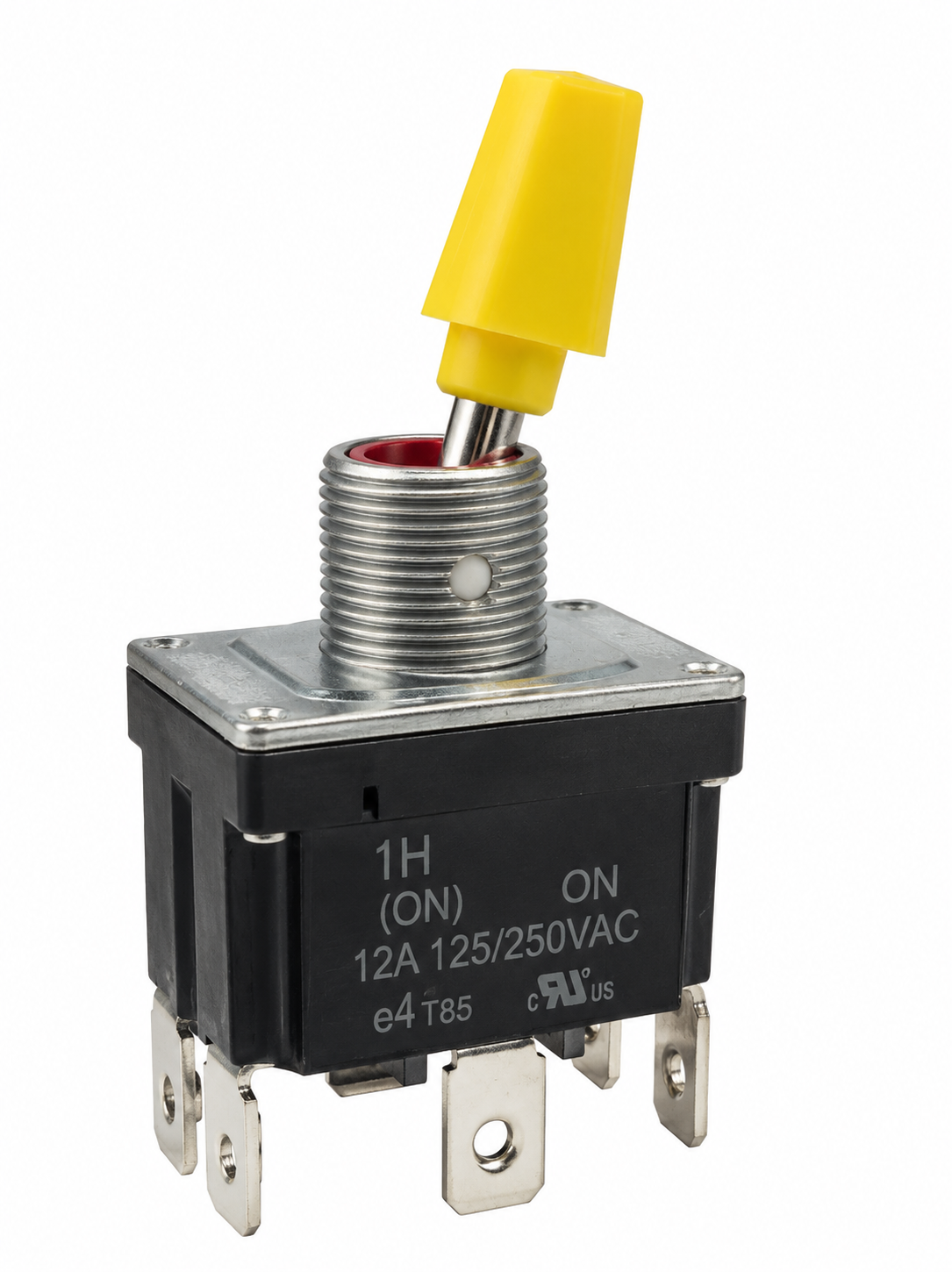

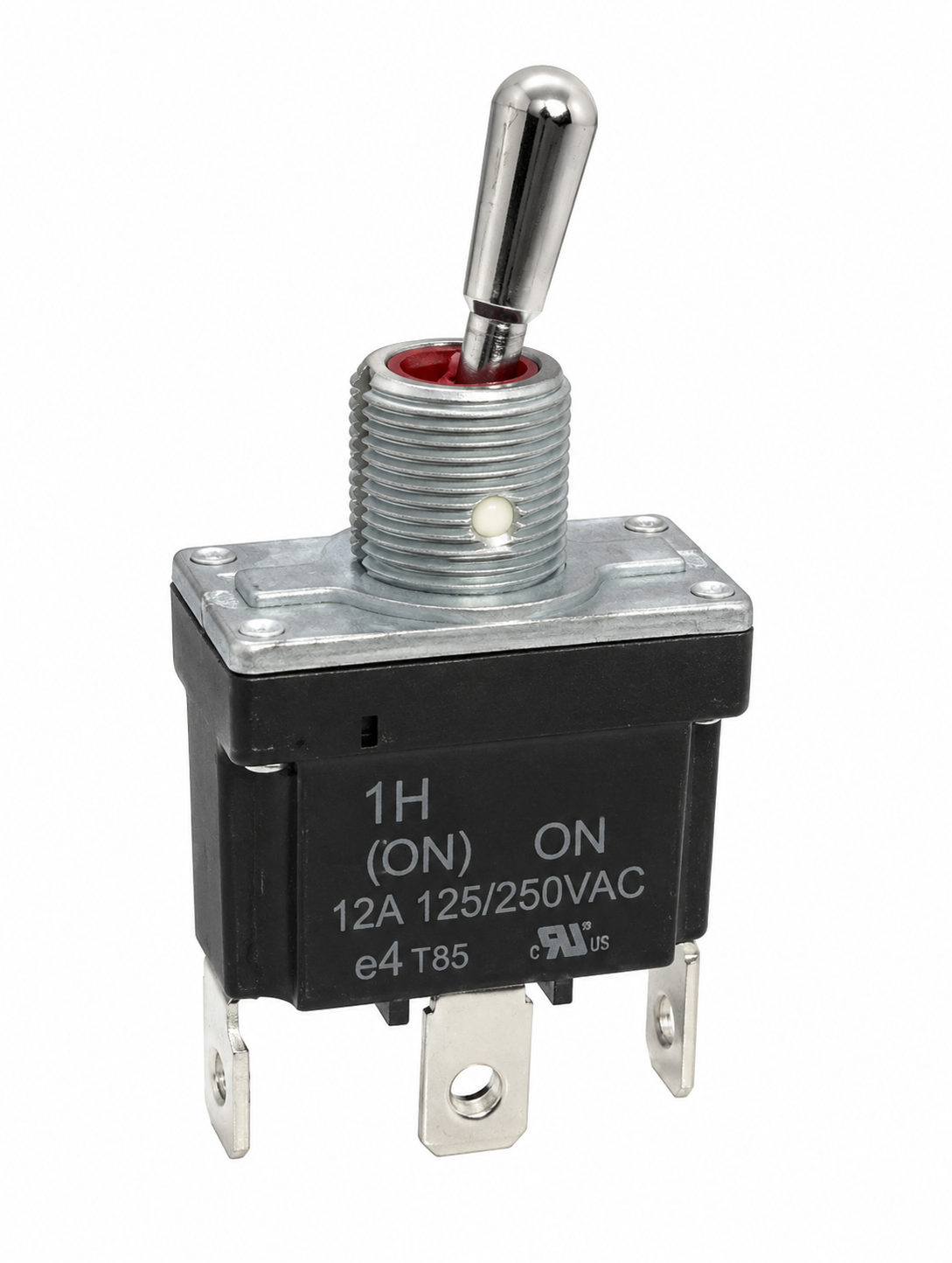

Product Description：
The 1H Series with 12A high-current toggle switch, changeover switch, lever switch; high-current toggle switch with enhanced contact capacity, featuring a robust 12A load capacity.
Product Advantage
1. Load current of 12A;
2. Glue injection technology inside the switch to achieve waterproofing, no need to use a waterproof cap;
3. Pins can be screw-locked;
4. Switch functions available in SP or DP options;
5. Sealed waterproof switch
Product Uses
1. A controller for aerial work platforms, used to control the direction of the vehicle.
2. Mainly used as a joystick for industrial purposes, on industrial controllers.
