Materials:
Housing: Thermoplastic, UL94V-0, black or other colors
Terminal: Phosphor bronze, optionally gold-plated and tin-plated in the solder area, both plated over nickel
Shield (optional): Copper alloy, nickel-plated or tin-plated.
Plating durability: 6 months (40–60% RH)
Rating:
Current: 1.5A
Voltage: 30VAC
Ambient temperature: 0–50°C
Storage temperature: –20–60°C

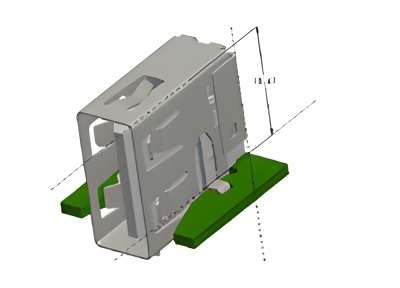

USB DIP Through-Hole Type (Available in lengths of 10.47 mm and 11.47 mm)
The advantage of this product is its ability to save internal space more effectively, making it suitable for use in today’s lightweight, slim, and compact consumer products.
Suitable for: Car chargers, mobile phone or tablet chargers, power banks, networking products, STBs, etc.
