Materials:
Housing: Thermoplastic, UL94V-0, black or other colors
Terminals: Phosphor bronze, with optional gold-plated or tin-plated solder pads; all nickel-plated
Shielding (optional): Copper alloy, nickel-plated or tin-plated.
Coating durability: 6 months (40–60% RH)
Rated Parameters:
Current: 1.5A
Voltage: 30VAC
Operating Temperature: 0–50°C
Storage Temperature: –20–60°C

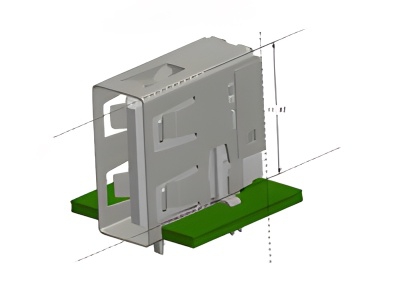

USB DIP Through-Hole Type (Lengths: 10.47 mm and 11.47 mm)
The advantage of this product lies in its ability to save internal space more effectively, making it ideal for use in today’s slim and compact consumer products.
Suitable Applications: Car chargers, mobile phone or tablet chargers, power banks, network communication products, set-top boxes, etc.
