Technical Parameters
| Specification | |
| Pole-Position: | 1 pole, 2 position - 8 position |
| Electrical Rating: | 0.5A 24V DC ; 0.2A 48V DC |
| CONTACT RESISTANCE : | 100mΩ Max. |
| INSULATION RESISTANCE : | 100mΩ Min. 500V DC |
| DIELECTRIC STRENGTH : | Breakdown is not allowable;500V AC for 1 minute (initial value) |
| OPERATING FORCE : | 350 ± 150 g |
| OPERATING TEMPERATURE RANGE : | - 20°C ~ 70°C |
| OPERATING LIFE : | 2,000 cycles |
| Materials | |
| HOUSING : | NYLON 6/6 |
| BASE: | LCP |
| ACTUATOR : | NYLON 6/6 |
| TERMINAL : | Brass gold plating |
Product Advantages:

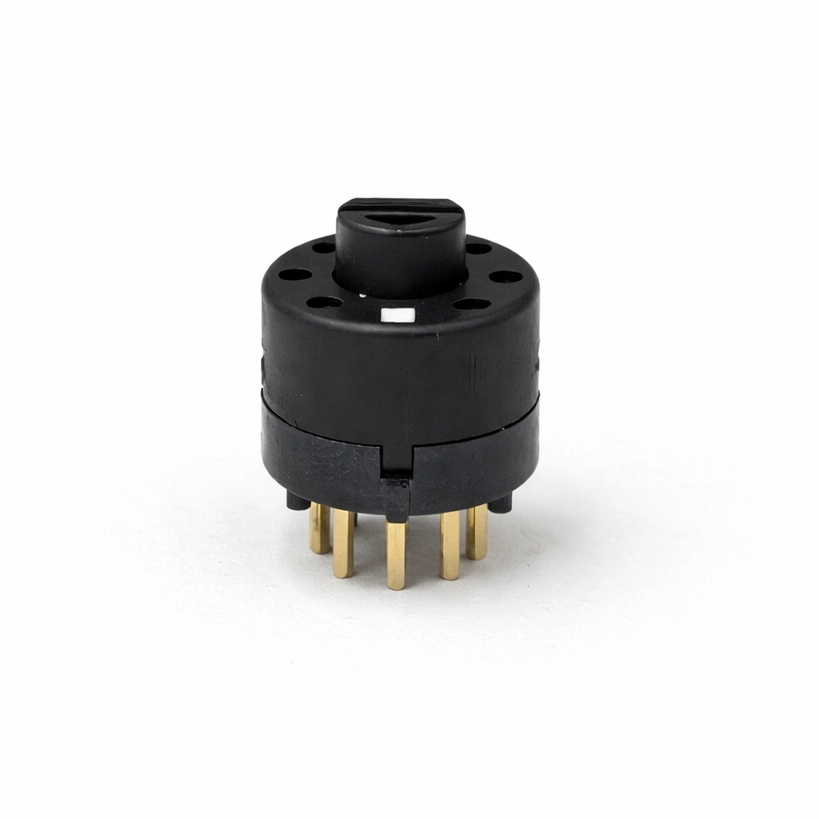

1. Rotary switches used for positions 1 to 8.
2. Available in specifications with 360-degree rotation limit and infinite rotation.
3. The entire series is designed with gold-plated contacts to maintain good conductivity and corrosion resistance.

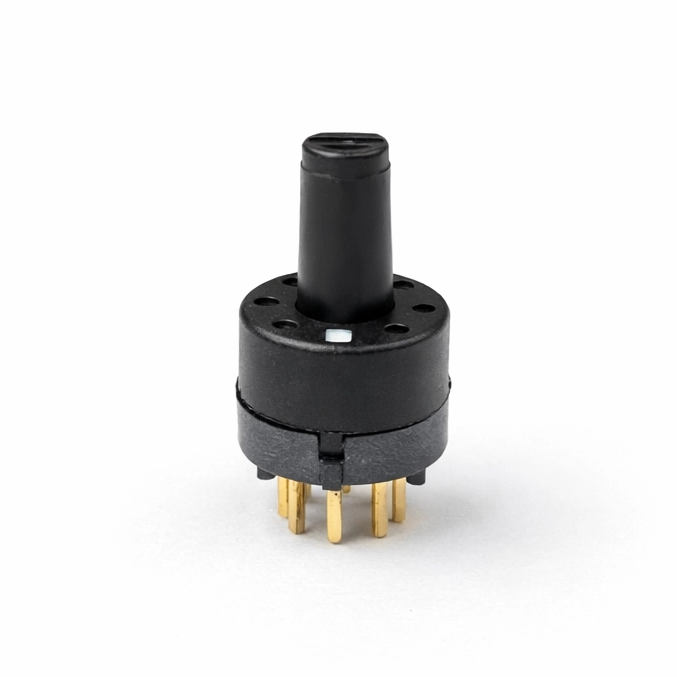

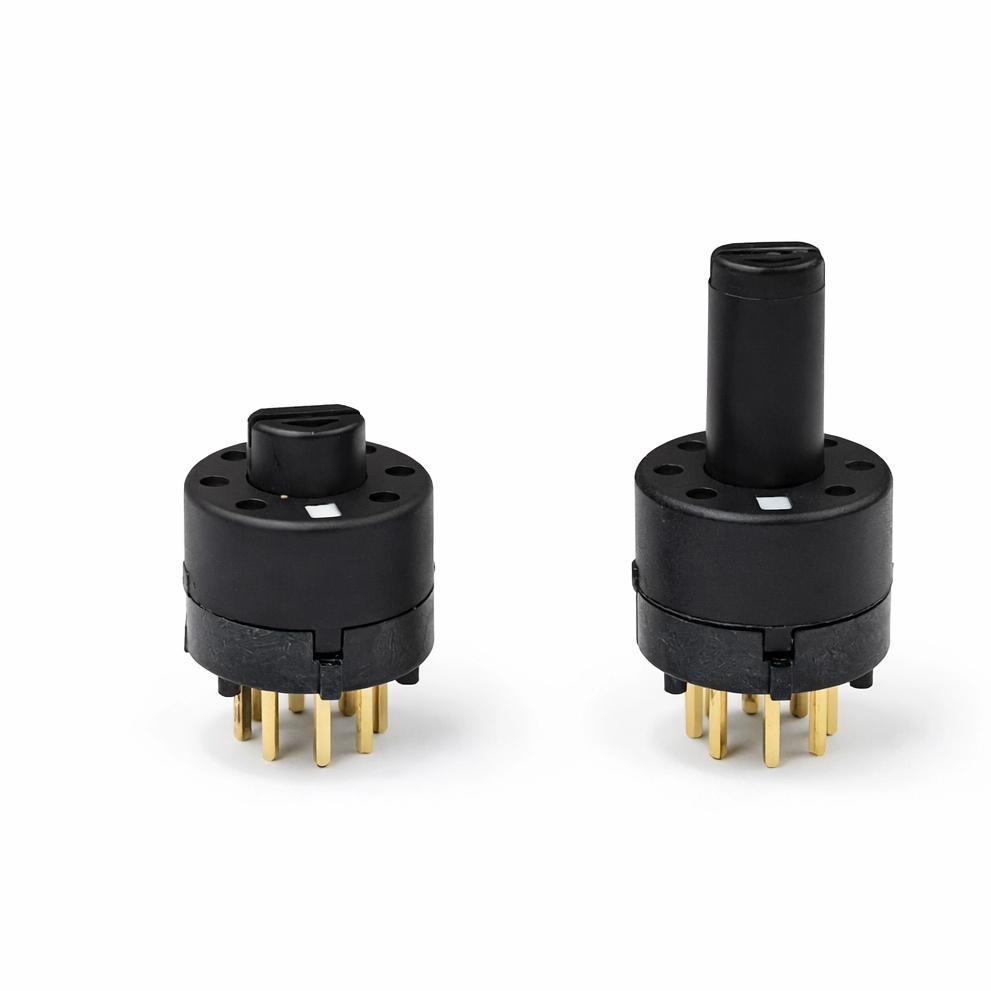

4. Available in long and short handles for customer selection.
Application：
• Communication equipment, walkie-talkies.
• High-value toys, socket voltage selectors.
• Game consoles, VCRs, air purifiers.
• Pianos, pet trainers.
