Technical Parameters
| Specification | |
| Rating | MAX RATING:50VDC. 100mA. |
| MIN RATING:20mVDC. 1uA. | |
| Contact Resistance | 100ml MAX. |
| Insulation Resistance | 100VDC-1000MQ MIN. |
| Operating Life | 10,000 STEPS |
| ROTARY TORQUE: | 40~200gf.cm |
| WITHSTAND VOLTAGE | 250VAC-1 MINUTE |
| Materials | |
| Frame | PA+G |
| Cover | PA+G |
| Spring Plate | SUS |
| Rotor | LCP+G |
| Terminal | Brass |
| Contact Plate | Copper Alloy |
| O-ring | Silicone Rubber |
| Spacer | SUS |
Product Advantage
IP67-rated protection – effectively resists moisture and dust in harsh environments.

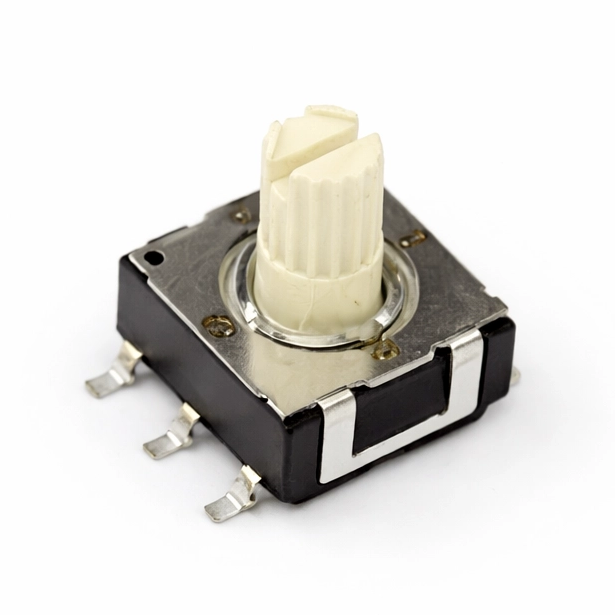

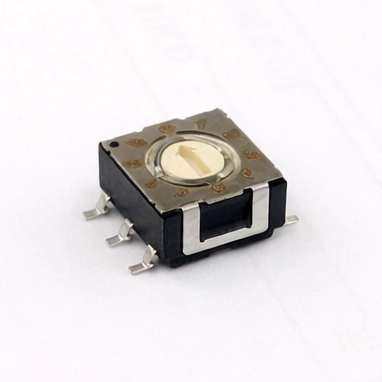

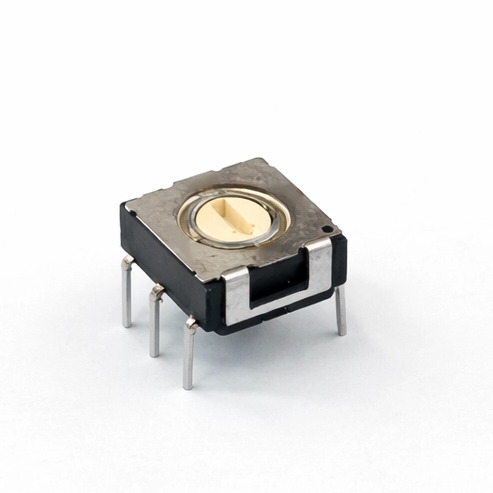

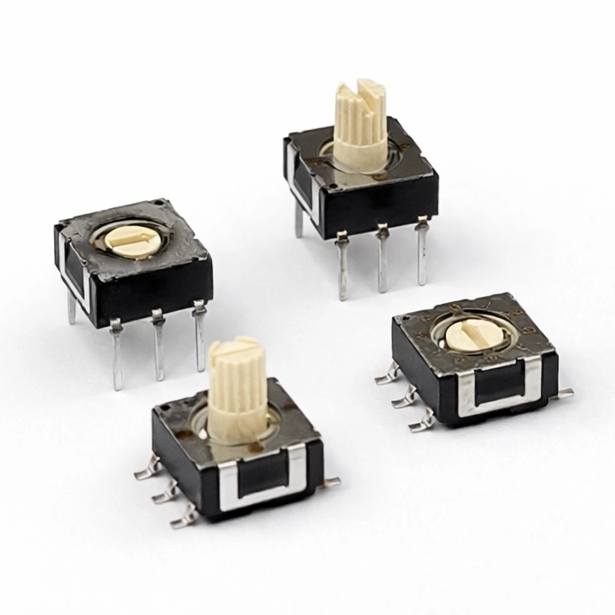

Optimized 7×7mm rotary switch – snap-fit housing with built-in dustproof sheet enhances long-term reliability.
Thickened O-ring – provides superior waterproof sealing for stable operation in humid conditions.
Precise tactile feedback – deepened grooves deliver clear segment detents, improving operational accuracy.
Product Uses
Servers, wireless IO modules, inverters, relays, medical equipment, energy storage devices, security monitoring, etc.
