Technical Parameters
| Specification | |
| Rating | MAX RATING:24VDC. 25mA. MIN RATING:3.5VDC. 10pA. |
| Contact Resistance | 200ml MAX. |
| Insulation Resistance | 250VDC-100Mn MIN. |
| Operating Life | 20,000 STEPS |
| ROTARY TORQUE: | 350gf.cm MAX. |
| Operating Force | 1000gf Max. |
| WITHSTAND VOLTAGE | 250VAC-1 MINUTE |
| Materials | |
| Frame | PA+G |
| Cover | PA+G |
| Spring Plate | SUS |
| Rotor | LCP+G |
| Terminal | Brass |
| Contact Plate | Copper Alloy |
| O-ring | Silicone Rubber |
| Spacer | SUS |
Product Advantages:
IP67-rated waterproof and dustproof protection.

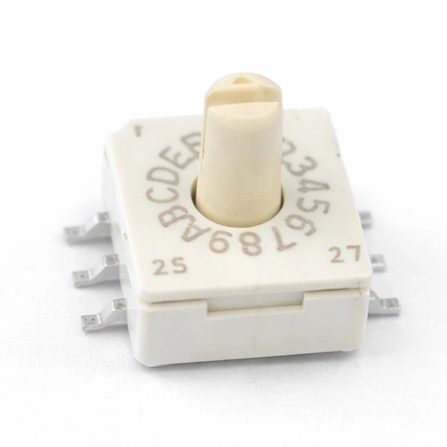

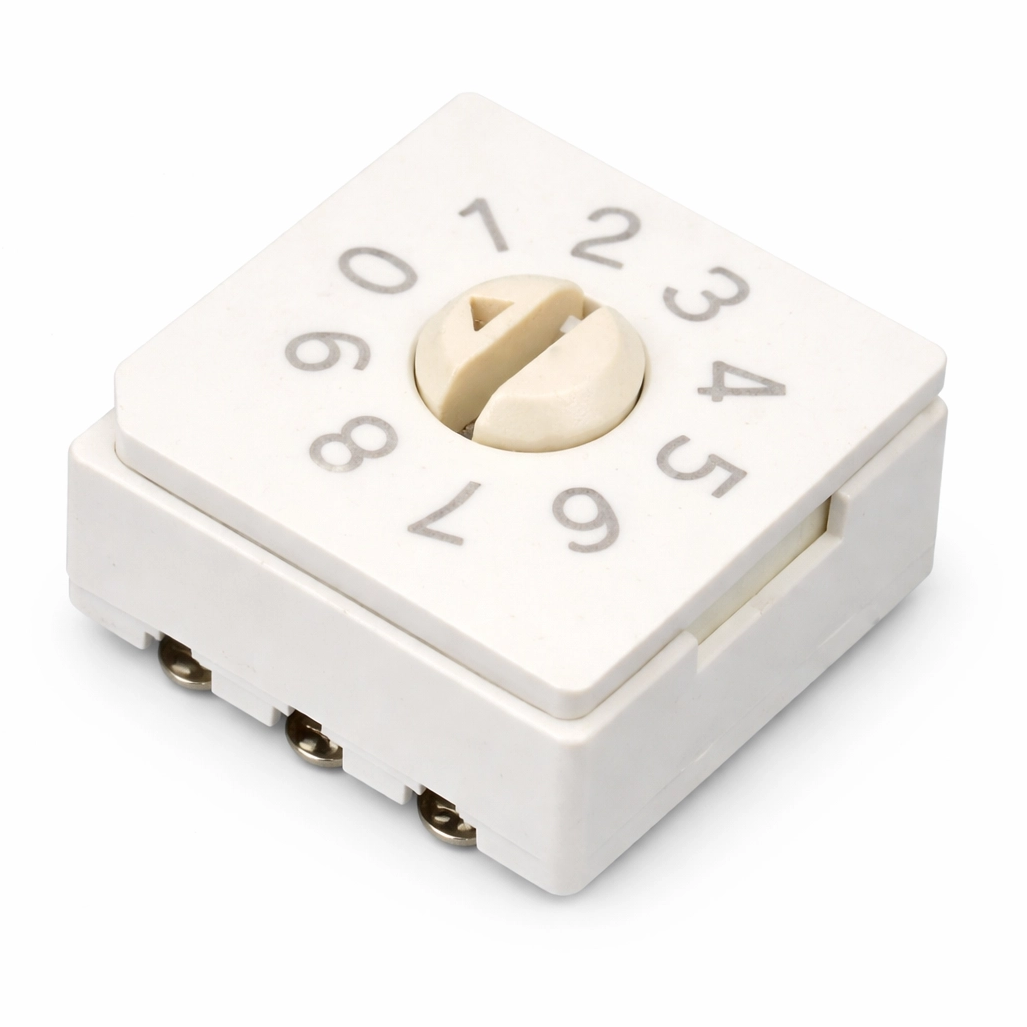

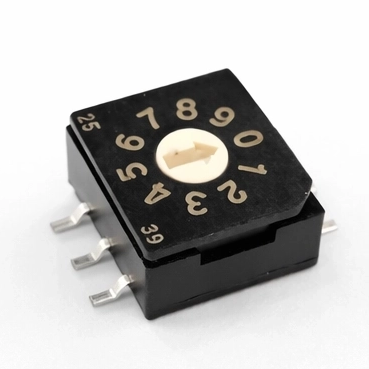

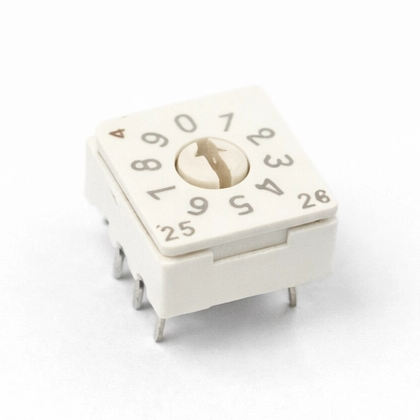

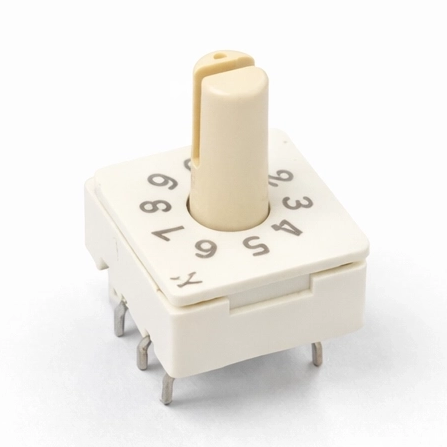

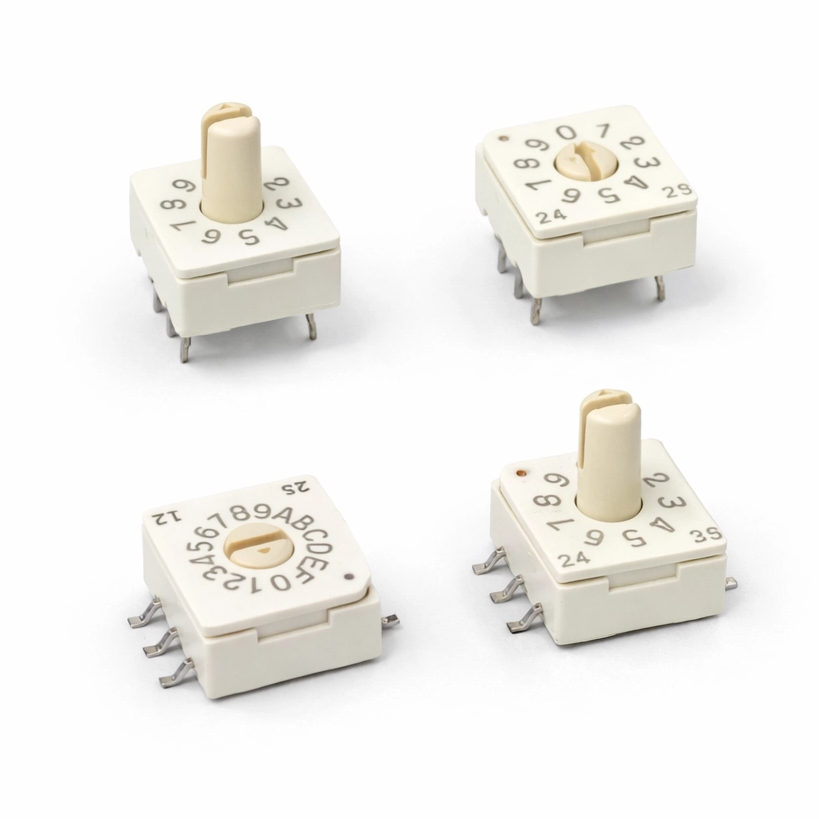

The 10×10mm rotary switch features a snap-fit housing and a built-in dust shield, preventing debris from causing malfunctions.
Equipped with a thickened built-in O-ring for enhanced waterproof performance.
The trapezoidal torque bump design delivers a clear tactile detent and minimizes contact area with the spring leaf.
Applications:
Servers, wireless IO modules, inverters, relays, medical devices, energy storage equipment, security monitoring, etc.
