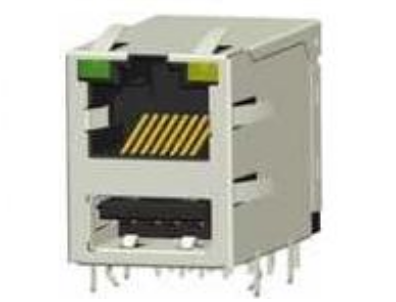

RJ45 JACK 10/100M BASE-T
Single Port + Single USB 28.9mm
ELECTRICAL CHARACTERISTICS:
Test Notes:(25±5℃)
1.TR:(100KHz,0.1V);
Pins:(P1,P3):(J1,J2)=1:1±3%;
Pins:(P4,P6):(J3,J6)= 1:1±3%
2.LX:(100KHz,100mV,8mA,DC Biss)
Pins: (P1,P3), (P4,P6)=350uH Minimum
3.DCR:Plns: (J1,J2), (J3,J6) =1.2ΩMaximum
4.HIPOT:Pins (P2,P1,P3) to (J1,J2) =1500VAC For 60s or 2250VDC 60S
Pins (P4,P5,P6) to (J3,J6) =1500VAC For 60s or 2250VDC 60S
5.INSERTION LOSS:
-1.0 dB Maximum at 0.3MHz to 100MHz;
6.RETURN LOSS:
-20dB Minimum at 1MHz to 30MHz,Load 100Ω
-15dB Minimum at 30MHz to 60MHz,Load 100Ω
-10dB Minimum at 60MHz to 80MHz,Load 100Ω
7.CROSS TALK:-30dB Minimum at 1MHZ to 100MHz
8.COMMON TO COMMON DODE REJECTION:
-30dB Minimum at1MHz to 100MHz
