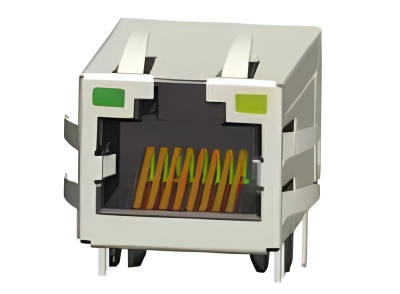

| MATERIAL: 1. Housing: Thermoplastic UL 94v-0 2. Contact: Selective Gold Plating 3. Terminal: 0.35mm Thickness Phosphor Bronze Plated With Gold And Tin In Solder Area 4. Shielded: Brass, Nickel Plating 5. Operating Temperature Rnge:0℃-70℃ ELECTRICAL CHARACTERISTICS: Test Notes:(25±5℃) 1.TR:(100KHz,0.1V); Pins:(P1,P3):(J1,J2)=1:1±3%; Pins:(P4,P6):(J3,J6)= 1:1±3% 2.LX:(100KHz,100mV,8mA,DC Biss) Pins: (P1,P3), (P4,P6)=350uH Minimum 3.DCR:Plns: (J1,J2), (J3,J6) =1.2ΩMaximum 4.HIPOT:Pins (P1,P3) to (J1,J2) =1500VAC For 60s or 2250VDC 60S Pins (P4,P6) to (J3,J6) =1500VAC For 60s or 2250VDC 60S 5.INSERTION LOSS:-0.8dB Maximum at 0.3MHz to 100MHz; -1.0 dB Maximum at 0.3MHz to 100MHz; 6.RETURN LOSS: -18dB Minimum at 1MHz to 30MHz,Load 100Ω -16dB Minimum at 30MHz to 60MHz,Load 100Ω -12dB Minimum at 60MHz to 80MHz,Load 100Ω 7.CROSS TALK:-30dB Minimum at 1MHZ to 100MHz 8.COMMON TO COMMON DODE REJECTION: -30dB Minimum at1MHz to 100MHz |
