NDI Series

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Technical Parameters

Specification
Rating

25mA, 24V DC

MECHANICAL LIFE: 2000 make-and-break cycles.
Contact Resistance

50 mΩ max.

Dielectric Strength

300V AC / 1 minute

OPERATING TEMPERATURE: -40°C to 85°C.
Operating Force 1,000gf max.
Travel 1mm
Insulation Resistance 100 MΩ min./500VDC


Product Description

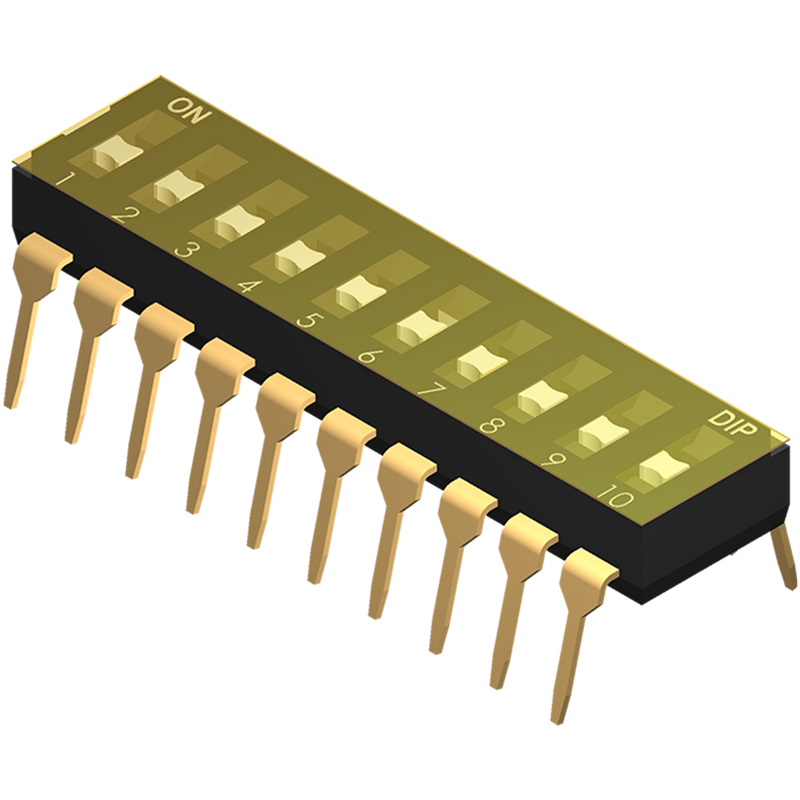

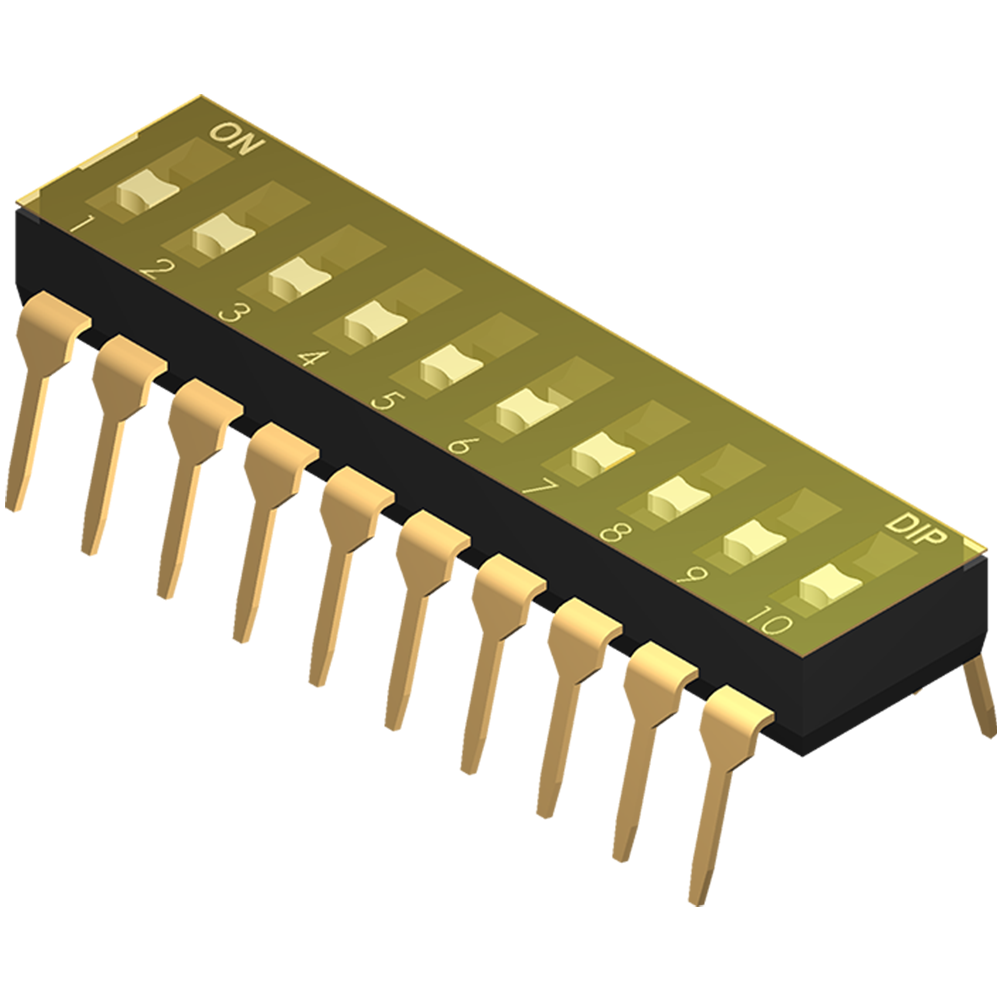

The switches in the NDI series are SPST piano-key encoder switches.


Key Features

Low profile for space saving

Gold contact for high reliability

Top tape type for washing process


Applications

Industrial control

Automatic machines control

Telecommunication
