Technical Parameters
| Specification |
| Contact resistance: | 40 mΩ max, with a tolerance of ±10 mΩ. |
| Contact Current: | Maximum for VBUS and GND pins 0.25 A for other pins. |
| Rated Voltage: | 5 V. |
| Withstand Voltage: | 100 VAC. |
| Insertion Force: | 0.5–2.0 kg |
| Mating cycles: | 10,000 cycles. |
Extraction force: | 0.6–2.04 kg |
| Solderability: | Temperature 210–230°C, time 10 seconds. |
| Insulation Resistance | At least 100 MΩ. |
| Operating environment: | –20°C to +85°C. |
| Materials |
| SHELL | ZINC ALLOY,NI PLATED |
| CONTACT | COPPER STEEL, TIN/Au/NI PLATED |
| Bushing | HIGH TEMPERATURE RESISTANT PLASTIC BLACK UL94 V-O |
| WATERPROOF RING | SILICONE UL94 V-O BLACK |
Product Description

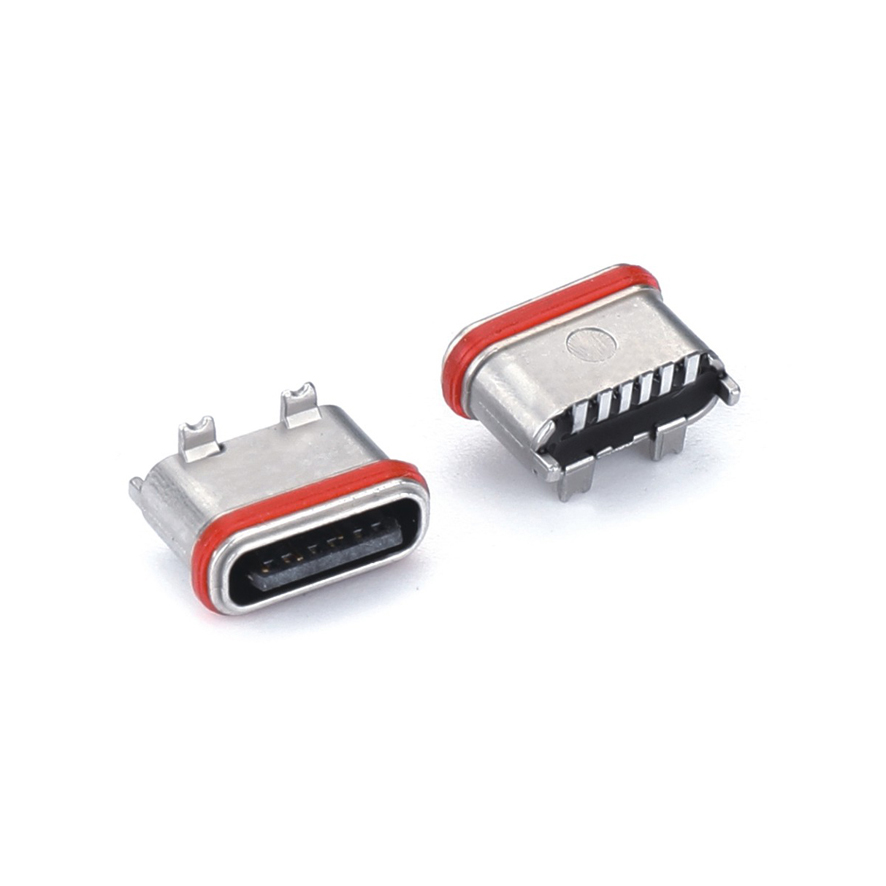

Type-C 6-pin waterproof female connector, 180-degree vertical mounting, short body, 6.8mm pitch, U-shaped powder-metallurgy housing.
Key Features
Waterproof IPX7
Applications
Mobile devices, audio amplifiers, automobiles, industrial equipment, medical devices
