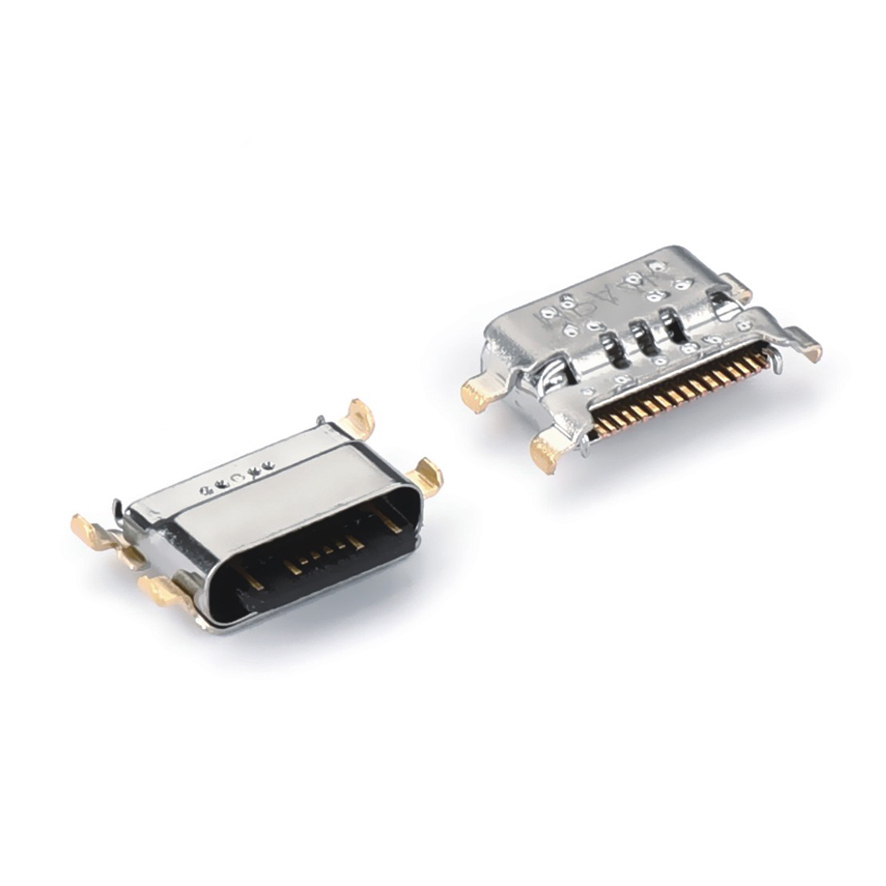

Type-C 16-pin Waterproof Sub-board

IPX7、1.53mm pitch, 4-pin connector, SMT, 6.1L

  • XL-ATCF-16-023

Availability:
Quantity:
Inquiry Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Technical Parameters

Specification
CURRENT RATING: 3.0 A
VOLTAGE RATING: 3.0 V
VBUS & GND PINS AND OTHER PINS: 40mD/PIN MAX
SHIELD:

50mΩ/MAX
LLCR MAX. CHANGE OF ALL PINS: 10mΩ
INSULATION RESISTANCE: 100MΩ MIN
LNSERTION FORCE:
 0.5~2.0kgf
UNMATING FORCE: 0,8-2.0kgf
DURABILITY: 10000 CYCLES
OPERATING TEMPERATURE: -35℃~+85℃
WATERPROOF: IPX7
