Technical Parameters
| Specification |
| VOLTAGE RATING: | 3,0 V |
| CURRENT RATING: | 3,0 A |
VBUS & GND PINS AND OTHER PINS: | 40mQ/PIN MAX |
| SHIELD: | 50mQ/MAX |
| LLCR MAX, CHANGE OF ALL PINS: | 100m |
WATERPROOF | IPX8 |
INSULATION RESISTANCE: | 100MQ MIN |
| DIELECTRIC WITHSTAND VOLTAGE | AC 100V FOR 1MINUTE |
| LNSERTION FORCE: | 0.5~2.0kgf |
| DURABILITY: | 10000 CYCLES |
| OPERATING TEMPERATURE: | -35'C-+85C |
THE PEAK TEMPERATURE ON THE BOARO | SHALL BE MAINTAINED FOR 10 SECONDS AT 260 |
| UNMATING FORCE: | 0,8-2,0kgf |
| Materials |
| SHELL | ZINC ALLOG,NI30u"Min PLATED |
| CONTACT | C7025,TIN80u"/Au3u"/NI30u"PLATED |
| MID PLATE | SUS301,NO PLATING |
| HOUSING | LCP(E130i) UL94 V-0 BLACK |
Product Description

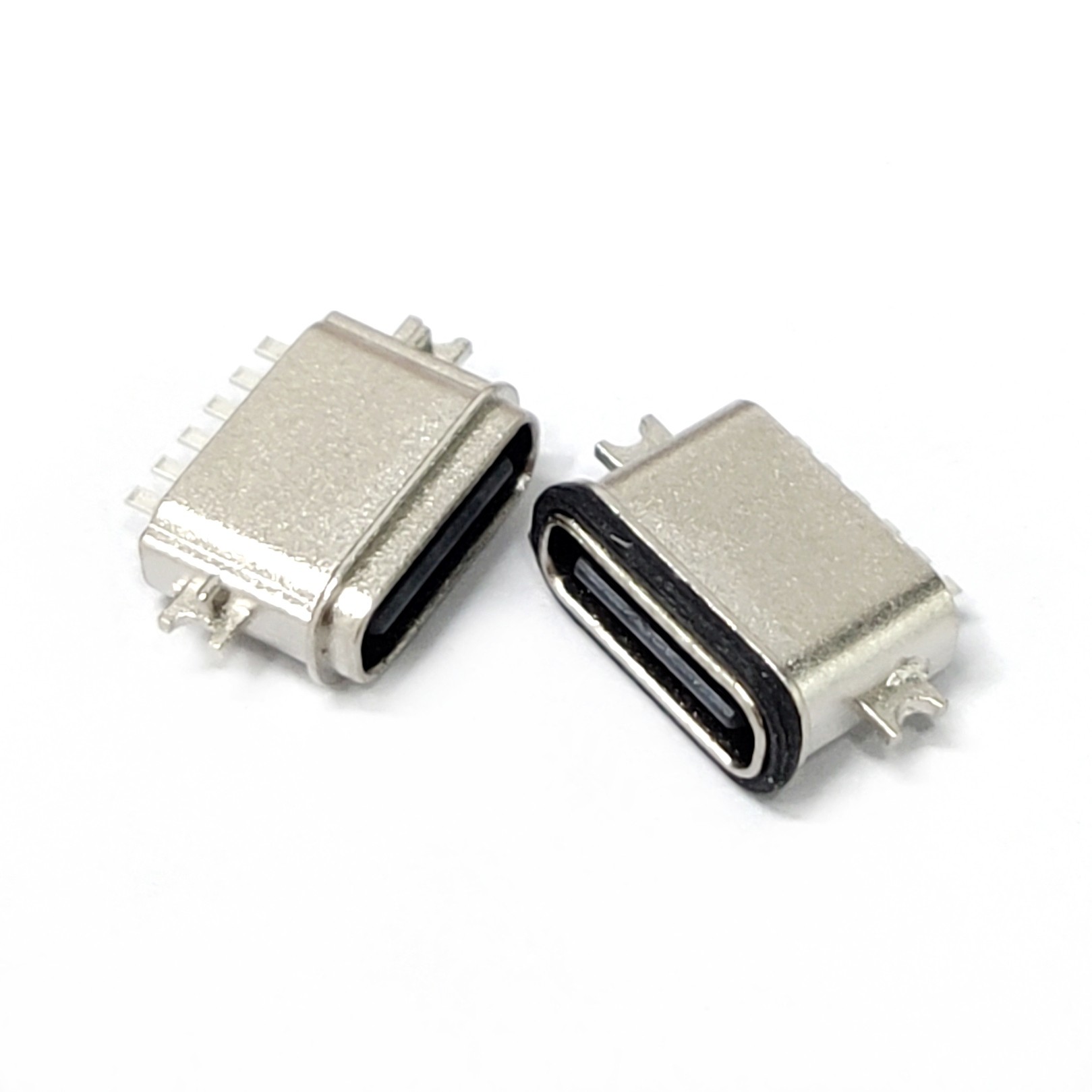

Type-C 6-pin waterproof female connector with 0.8/1.2/1.6 mm pitch, two-pin SMT, powder-metallurgy housing
Key Features
Waterproof IPX8
Applications
Mobile devices, audio amplifiers, automobiles, industrial equipment, medical devices
