Technical Parameters
| Specification |
| Rating | 20mV DC~32V DC/1.0 Ma~50mA |
| Operating temperature | -40 °C to 85 °C |
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 100V DC |
| Operating Life | 300,000 cycles for 350gf |
| 500,000 cycles for 200gf |
| 5,000,000 cycles for 160gf |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 160±50gf,Brown(N) / 200±50gf,Red(Ｒ) / 350±100gf,Salmon(S) |
| Travel | 0.3mm(160gf) / 0.35mm(200gf) / 0.5mm(350gf) |
Product description

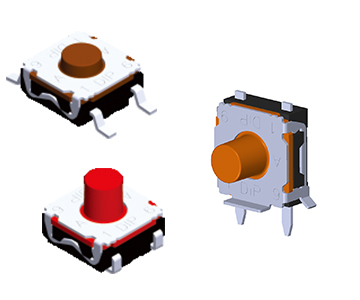

The T6W series consists of 6×6 long-stroke, waterproof SMT switches
Product Advantage
J or M terminationals
Long travel type
Long operating cycles
IP67 waterproof level
Product Uses
Automotive
Industrial electronics
Network infrastructure and IT
Elevator
