General Specifications:
Switch Circuit: SP5T
Current Rating: 50mA
Voltage Rating: 12VDC
Dielectric Withstanding Voltage: 250 VAC for 1 minute
Contact Resistance: 1 Ω Max. (initial)
Insulation Resistance: 100 MΩ Min.
Operating Force: 400 gf 100 gf:
Total Travel: 1.0 mm 0.3 mm: 1.0 mm 0.3 mm
Operating Life: 100,000 cycles Min.: 100,000 cycles Min.
Operating Temperature: -10°C to +60°C

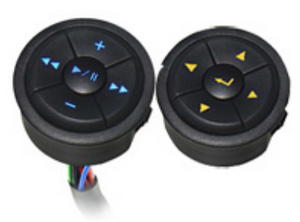

SF25WA Waterproof
SF25WA series waterproof navigation push-button switch module, a 5-key/5-way tactile switch module with integrated LED backlighting on each key, making it easy to identify equipment status. Its low-profile, sealed design is specifically suited for outdoor control panels, boats, bathroom fixtures, swimming pool equipment, and other applications requiring waterproofing. SF25WA Waterproof Switch
*Panel cutting diameter: 25mm.*Panel cutting diameter: 25mm.
*IP67.* IP67 dust and water resistance rating
Applications
*Residential and Commercial Audio-Visual Market*
*Industrial Equipment*
*Traffic and Transportation*
*Outdoor Equipment*
*Agricultural Market*
*Defense*
*Education*
*Telecom Communications*
