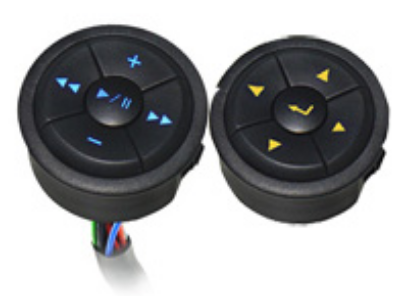

SNA1

General Specifications
Switch Circuit:SP5T
Current Rating:50mA
Voltage Rating:12VDC
Dielectric Withstanding Voltage:250VAC for 1 minute
Contact Resistance:100m Ohm Max.(initial)
Insulation Resistance:100M Ohm Min.
Operating Force:230gf 50gf(Tactile)/60gf 10gf(Noiseless)
Total Travel(Tactile):0.3mm 0.1mm
Total Travel(Noiseless):1.0mm 0.3mm
Operating Life:1,000,000 cycles Min.
Operating Temperature:-10 deg.~+60 deg.



Materials
Cap:Polycarbonate (PC)
Base:Polyamide (PA)
Reflector:Polycarbonate (PC)
Switch Terminal:Brass with gold plating
Action Dome::Stainless steel with
silver plating(Tactile)
Phosphor Bronze with gold
plating(Noiseless)
Sealing rubber:Silicone
Housing:Polyamide (PA)
