G5W11 Series

Quantity:
Availability:





Inquiry Add to Basket

Product Description

Technical Parameters

Specification
Rating	W1：ENEC: 0.1A 48VDC, 0.1A 125/250VAC,40T85,5E4,u UL:0.1A 48VDC,0.1A 125/250VAC,T85 W2：ENEC: 5A 125/250VAC,5A, 30VDC,40T85,5E4, u UL:5A 125/250VAC,T85 W3：ENEC:10(2)A 125/250VAC, 0.5A 125VDC, 0.25A 250VDC,40T85,u,2E4 UL:10.1A 1/10HP 125/250VAC,0.5A 125VDC, 0.25A 250VDC, T85
Operating temperature	-40 °C to 85 °C
Contact Resistance	50mΩMax
Insulation Resistance	at 500VDC,100MΩ Min.
Dielectric Strength	AC 1000V 50-60Hz 1min
Operating Life	Electrical：2E4~10E4 cycles(depends on P/NS) Mechanical：over 1000,000cycles(60cycles/min)

Product description

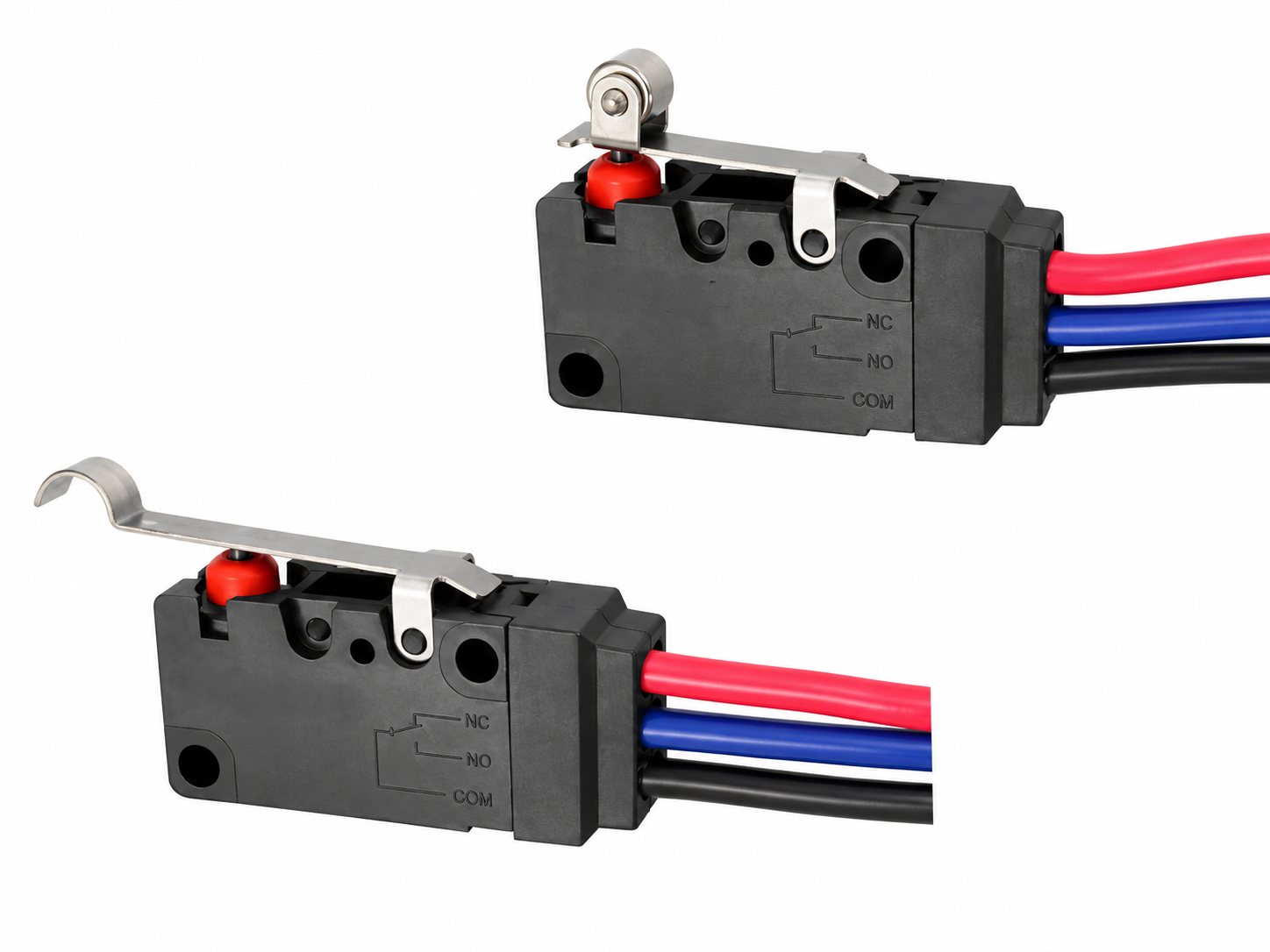

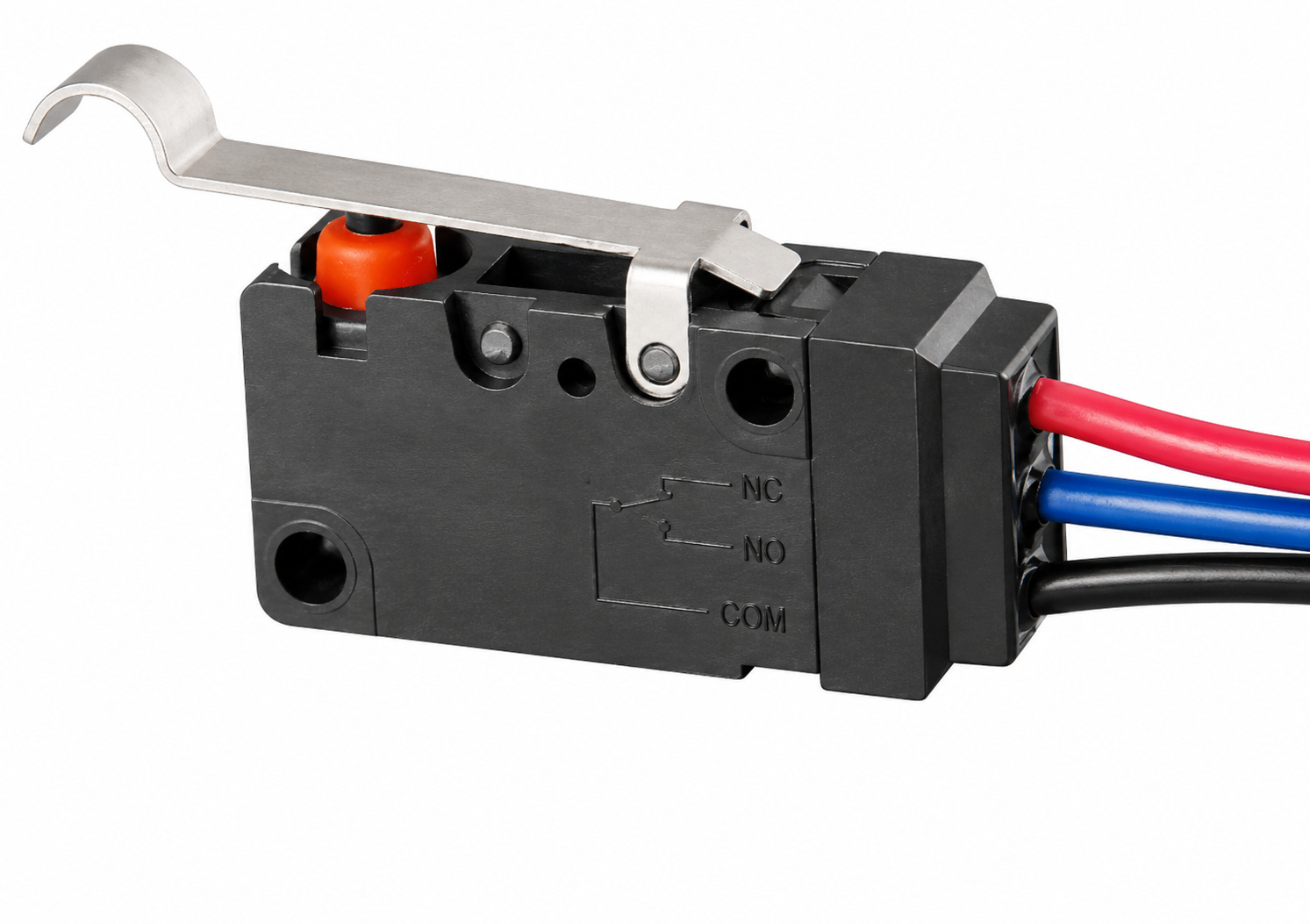

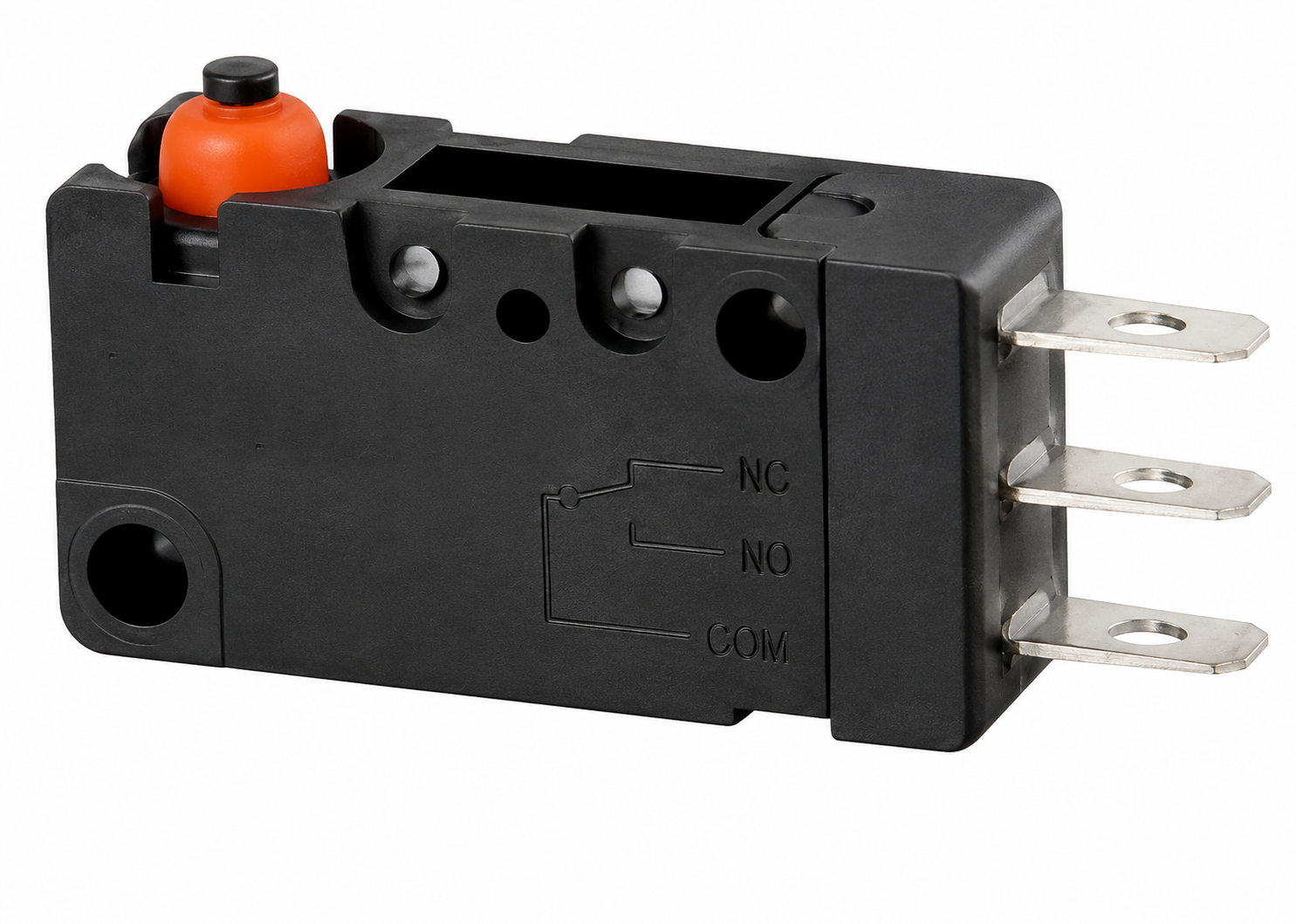

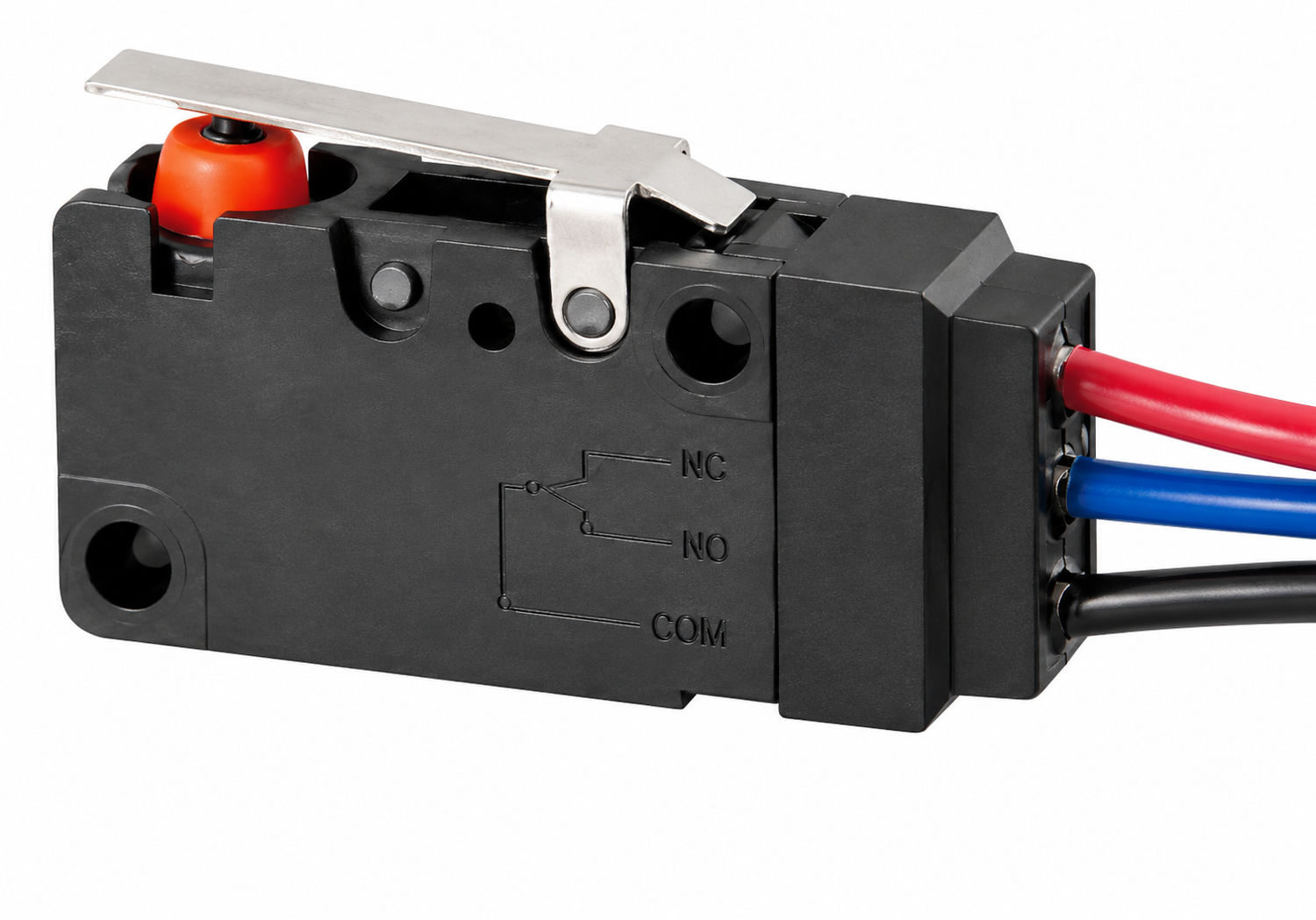

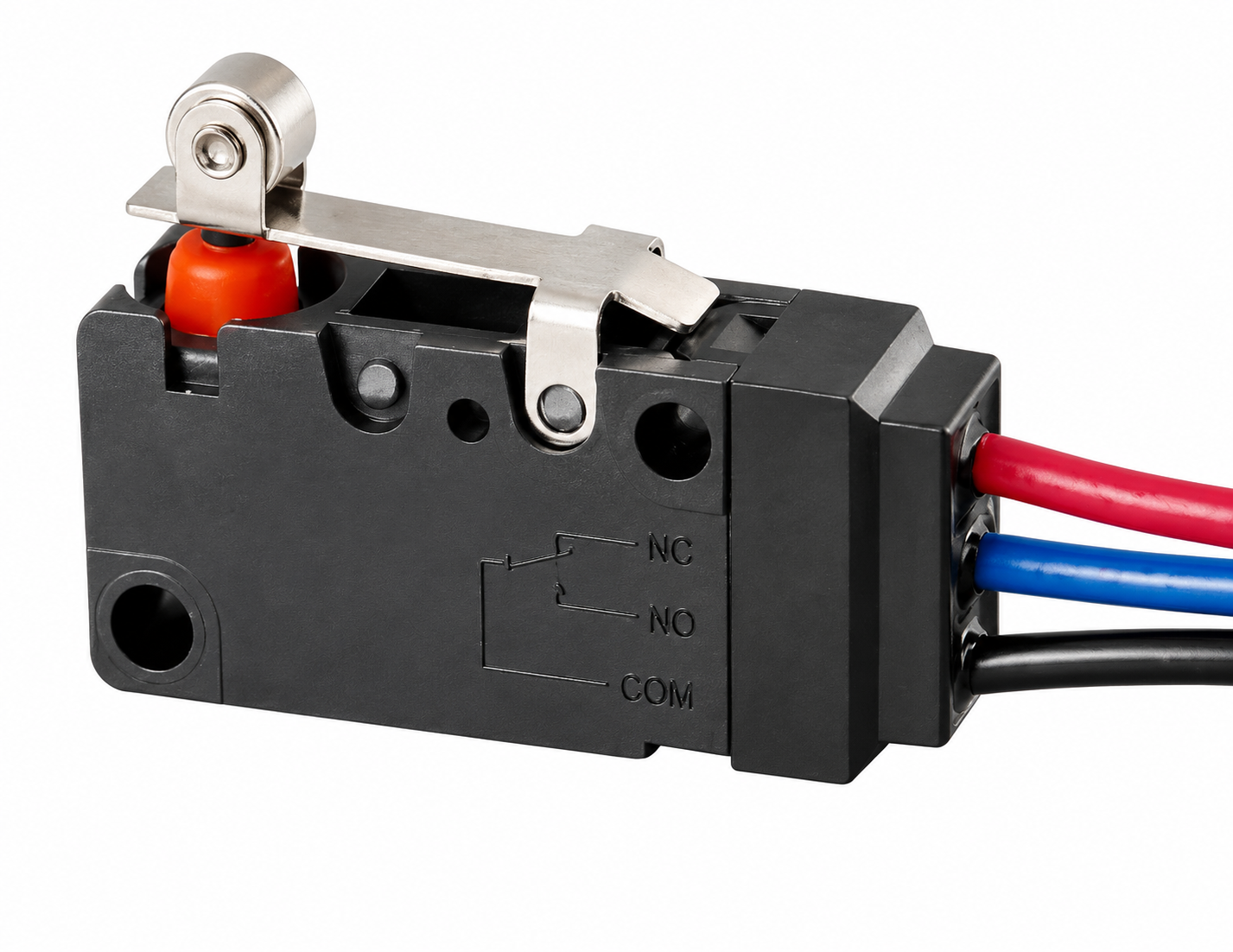

The G5W series features compact, space-saving micro switches available in a variety of stem lengths.

Product Advantage

- Water- and dust-resistant (IP67)

- Compact design, minimal actuation travel, high sensitivity

- Globally certified for safety

- Long service life, high precision, and high reliability

- Various handle options available

- Widely used in automotive electronics, home appliances, and industrial control systems

- Maximum current rating of 10A under ENEC/UL certification

Product Uses

Home appliances, electronic devices, automation equipment, automotive electronics, agricultural machinery, office equipment, etc.
