Technical Parameters
| Specification | |
| Rating | p1:0.1A 48VDC/125VAC 03:1A/3A 125VAC |
| Operating temperature | -40 °C to 85 °C |
| Contact Resistance | 100 mΩ Max.(Depends on P/NS) |
| Insulation Resistance | at 500VDC 100MΩ Min |
| Dielectric Strength | AC600V RMS (50~60Hz) |
| Operating Life | Electrical:6,000~100,000cycles Mechanical:5,000,000/1,000,000cycles |
Product description

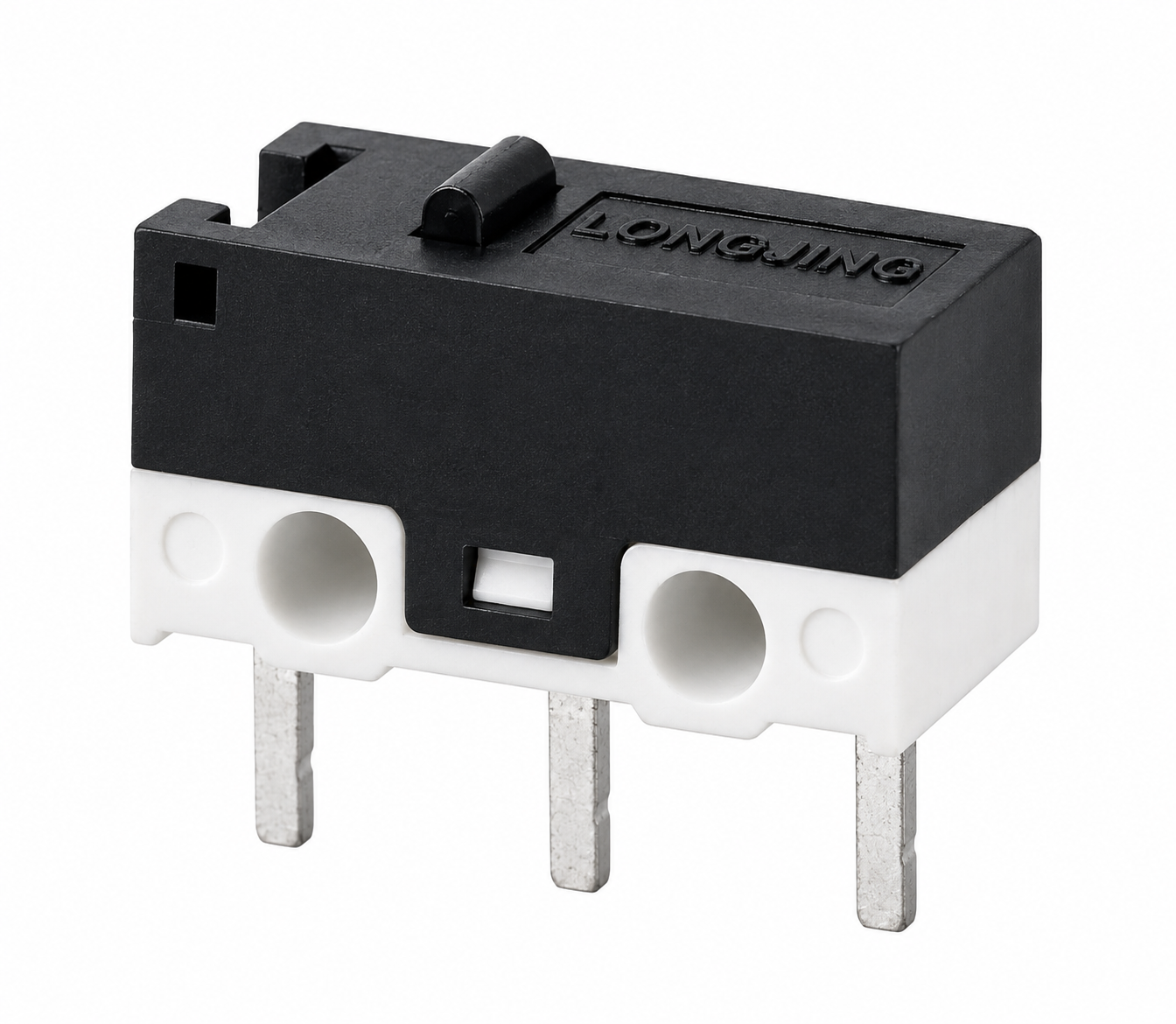

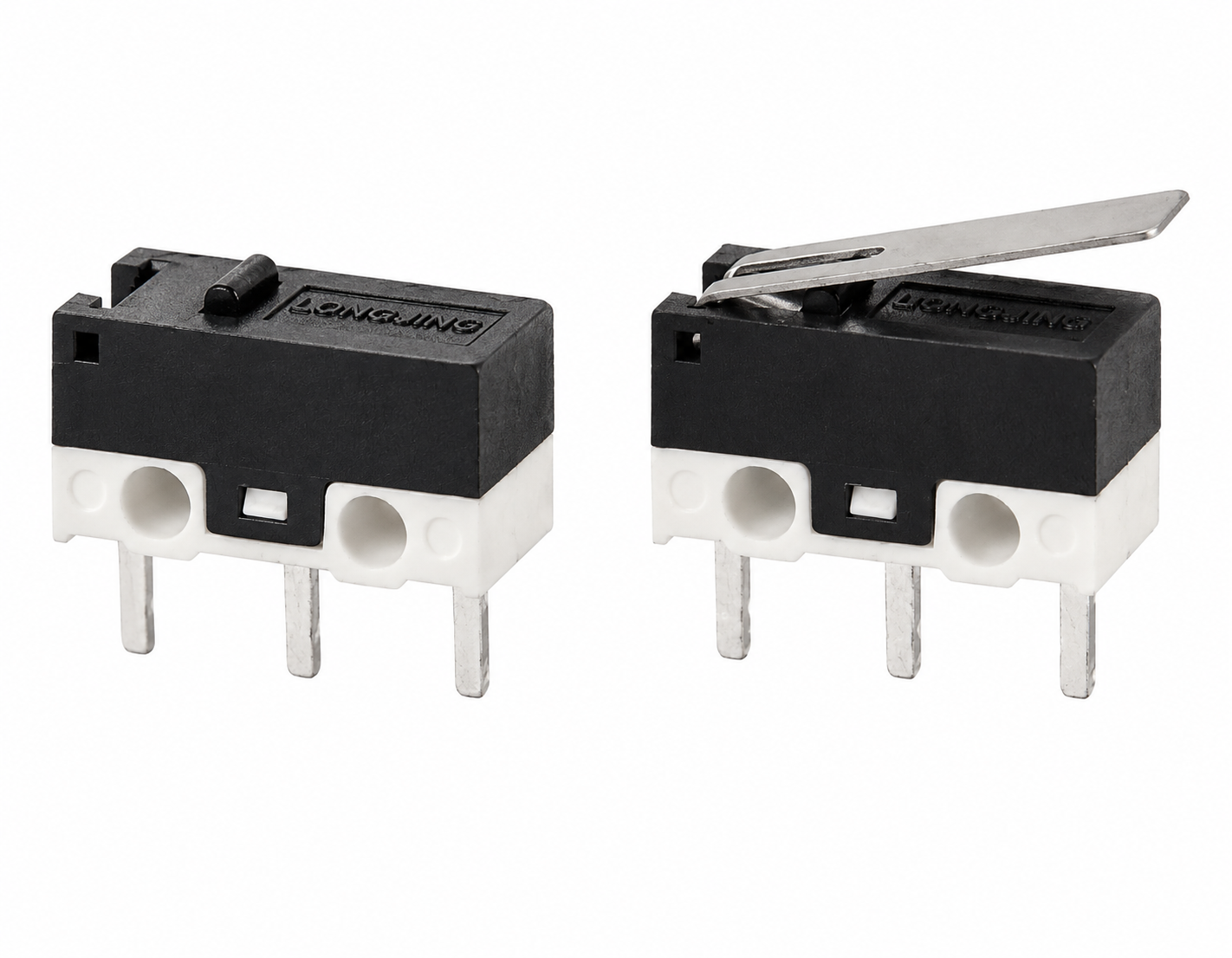

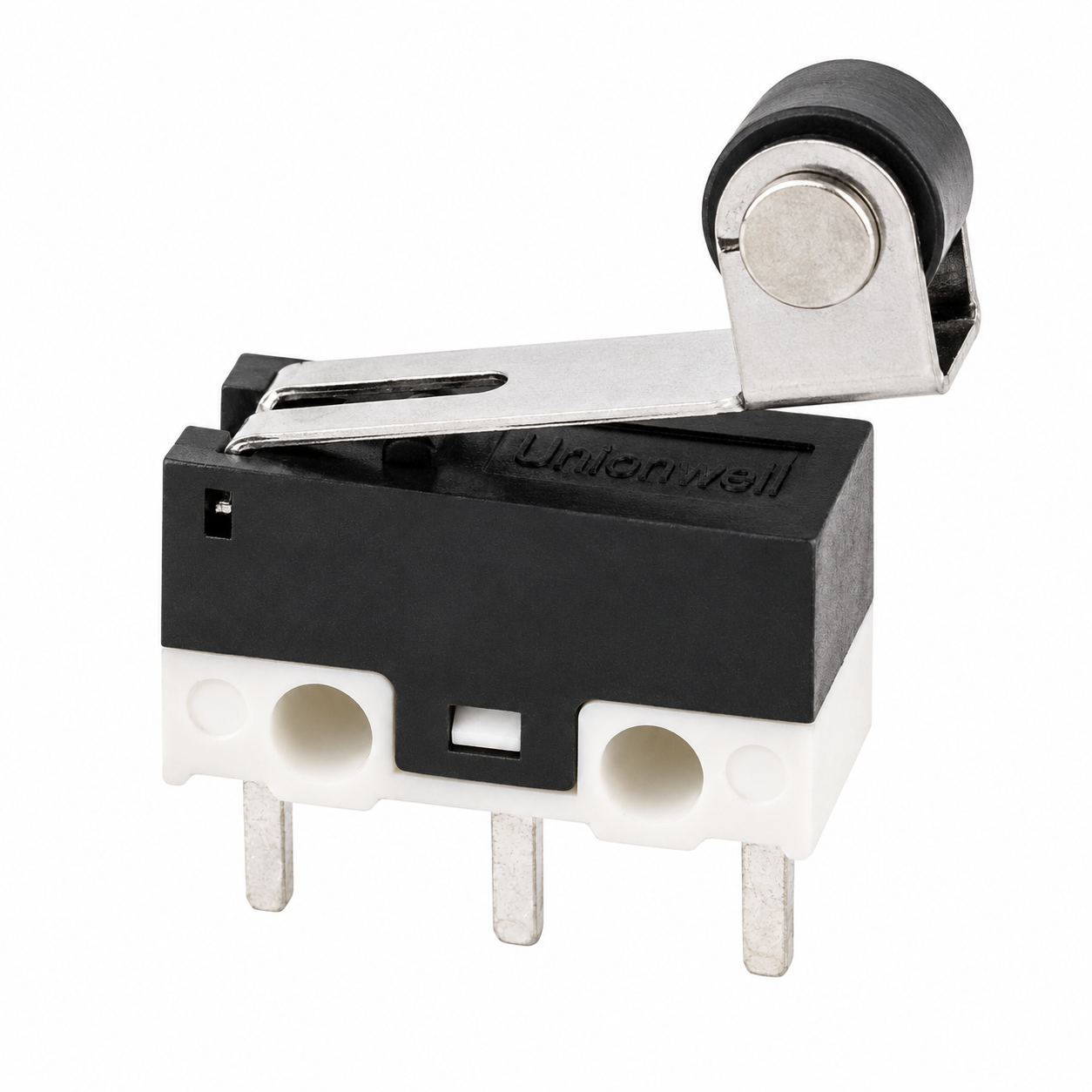

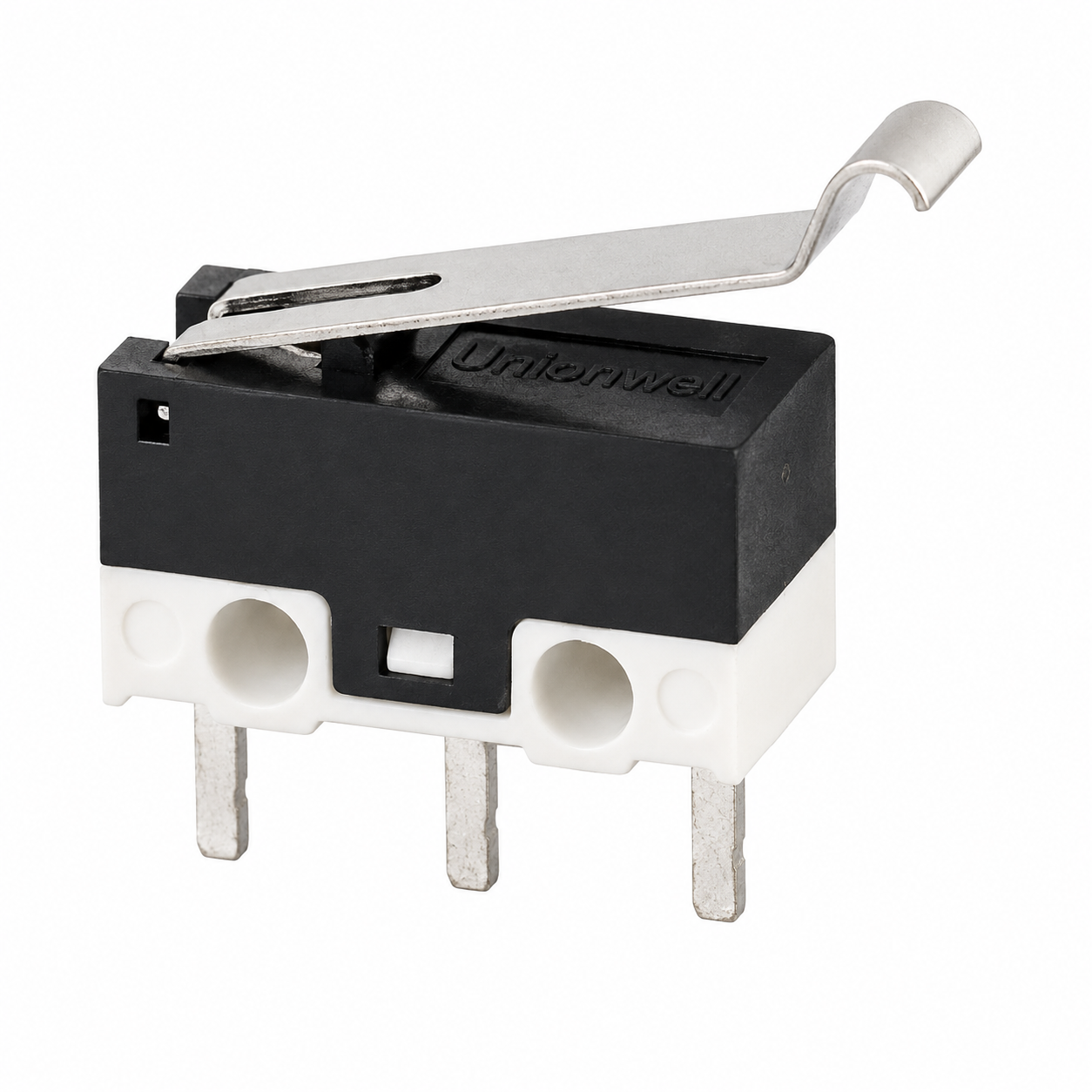

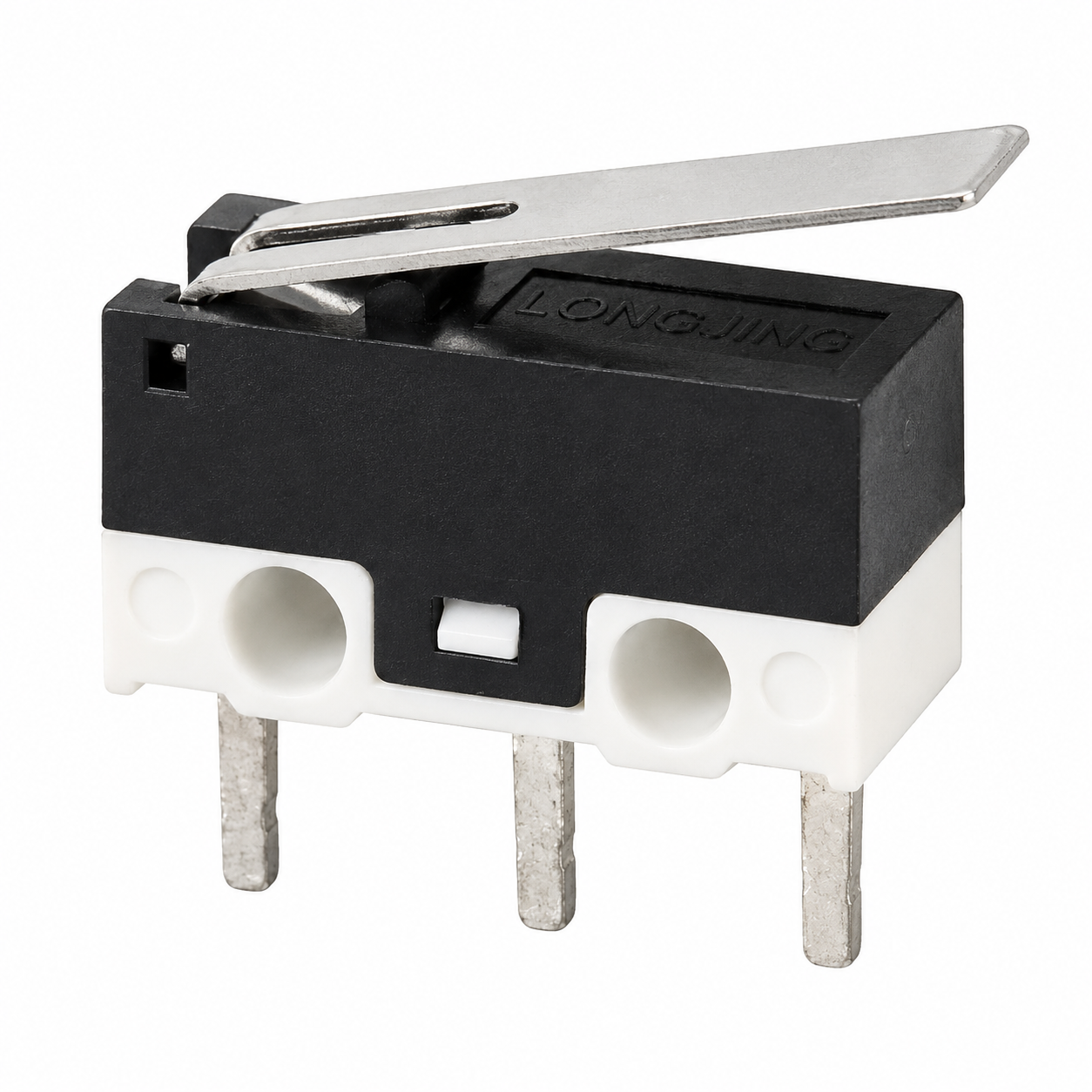

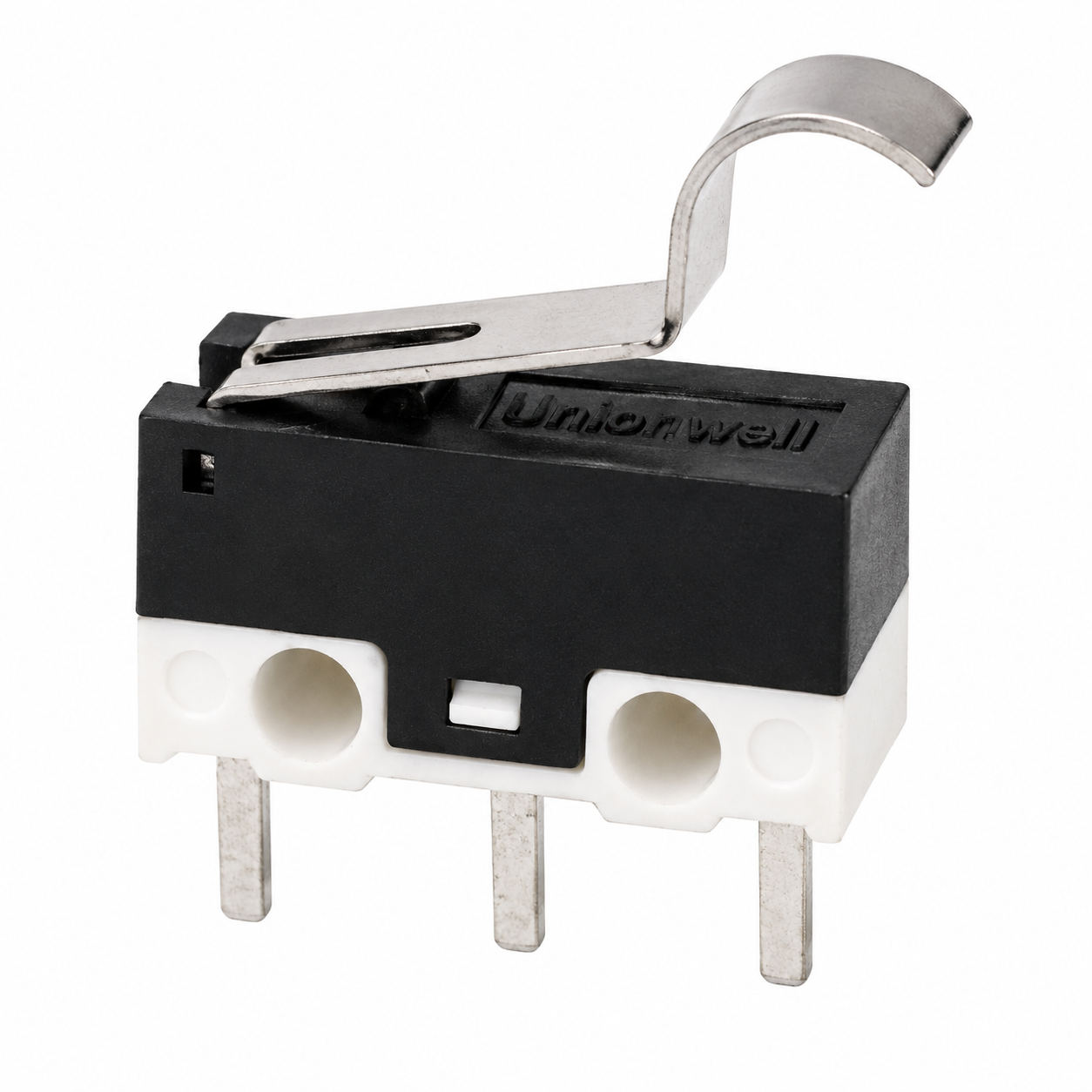

The G10 series features compact, space-saving micro switches available in a variety of stem lengths.
Product Advantage
- Compact size and design
- Long service life and high reliability
- Globally certified for safety
- Wide range of terminal options
- Available with various types of operating handles
- Wide range of operating forces
Product Uses
Walkie-talkies, computer mice, electric knives, electric staplers, telephones, calculators, blenders, electric skillets, battery chargers, VHS rewinding machines, cordless phones, alarms, household appliances, etc.
