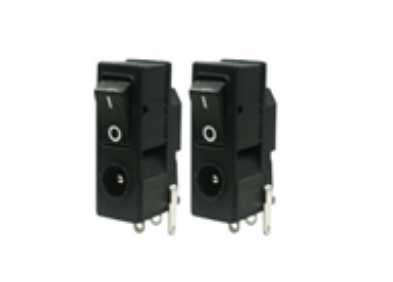

Product Type: DC Power Socket with Rocker Switch
Specifications
Rated Power: DC 15V 2.5A
Contact Resistance: 20mΩ (initial)
Contact Resistance: 20mΩ (initial)
Insulation Resistance: >1000 MΩ (500 VDC between open contacts)
Insulation Resistance: >1000 MΩ (500 VDC between open contacts)
Dielectric Strength: >1500 V @ 1 minute
Electrical Life: 6000 cycles
Terminal Temperature Rise: Max. 30°C
Terminal Solderability: Max. 350°C, 3 seconds (no pressure may be applied to the terminals during manual soldering)
Terminal Solderability: Max. 350°C, 3 seconds (no pressure may be applied to the terminals during manual soldering)
This product contains no cadmium, lead, mercury, or their compounds
Product Materials
Housing & Frame: Glass-filled Nylon 6/6, black
Toggle Switch: Glass-filled Nylon 6/6, black
Contact: Copper alloy, silver-plated
Terminals: Copper alloy, silver-plated
Axle: Brass, nickel-plated
